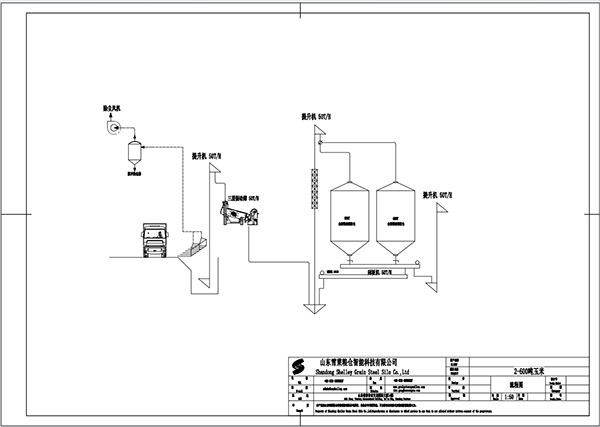

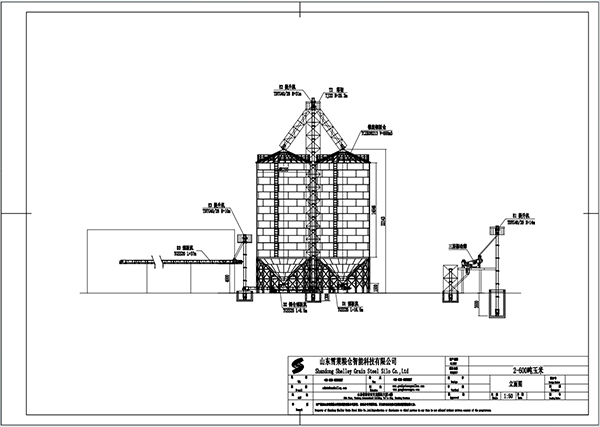

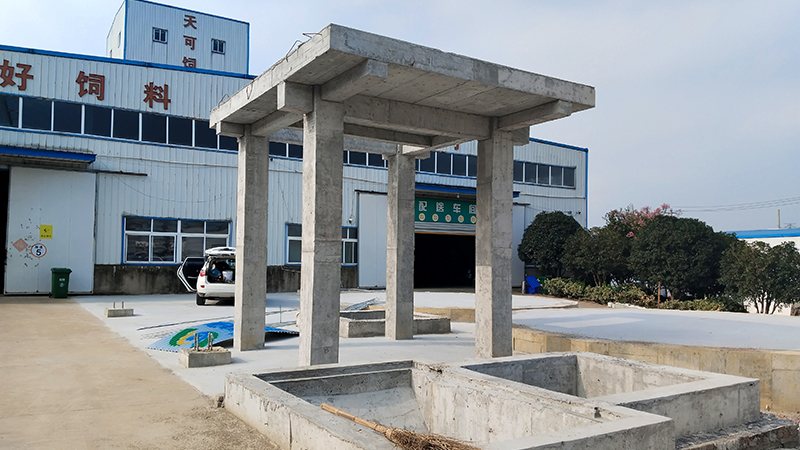

Design process introduction: This project design includes 2 galvanized prefabricated all steel cone bottom steel plate silos: φ8.2m, with a storage capacity of 600T, 3 sets of 50/28 bucket elevators with an hourly output of 50-60 tons, 3 sets of TGSS25 drag conveyors with an hourly output of 50-60 tons, 1 set of three-layer vibrating cleaning screen (with wind selection equipment) capable of screening wheat and corn impurities, as well as a complete set of dust removal equipment, ventilation and temperature measurement equipment, and a dual electric control cabinet system, achieving the mechanization and electrification of customer bulk corn and bulk wheat storage. When the incoming material on site is corn, the bulk truck can directly put the bulk corn into the unloading pit on site. The corn is lifted by a elevator to a three-layer vibrating screen, which removes large and small impurities from the corn. The clean corn is then stored inside the silo through a magnetic separator. Users can choose to regularly check the temperature changes inside the silo based on the storage time of the corn, and when the temperature and humidity inside the silo are too high, The temperature and humidity data will be alarmed through the control panel of the electric control cabinet. Customers can choose to turn on the ventilation equipment at the bottom of the silo for cooling treatment. They can also use the reverse function designed for customers to turn on the reverse scraper and import the grain stored in silo 1 into silo 2, ensuring the time and quality of grain storage and avoiding the occurrence of mold and clumping.

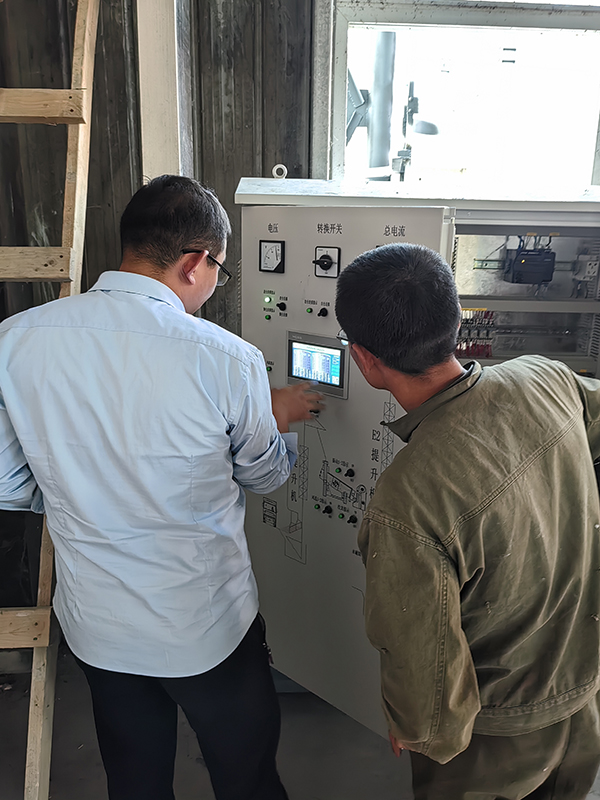

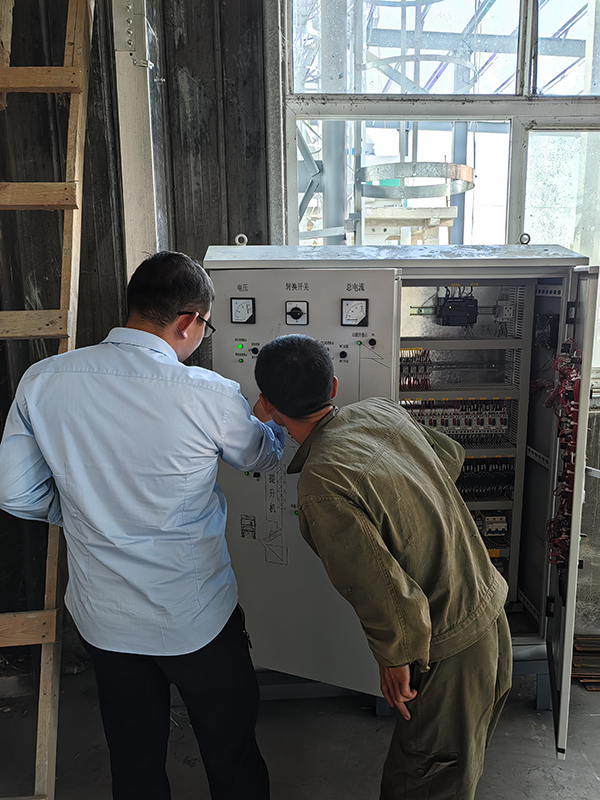

Finally, through the electrical control cabinet in the workshop control room, the electric gate at the bottom of the silo, the feeding elevator, and the workshop scraper conveyor are controlled to achieve effective linkage with the feed workshop storage bin, reducing 2-4 manual labor and effectively reducing customer storage and labor management costs.

Introduction to main equipment parameters:

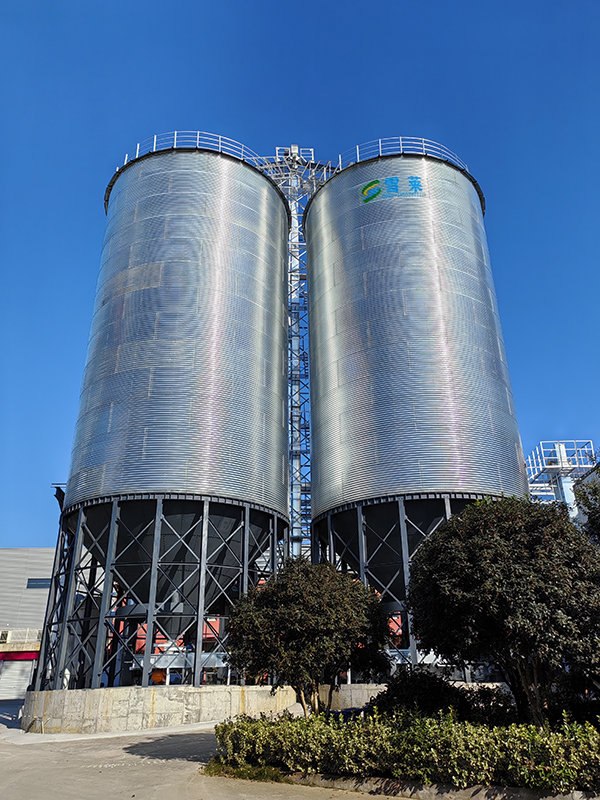

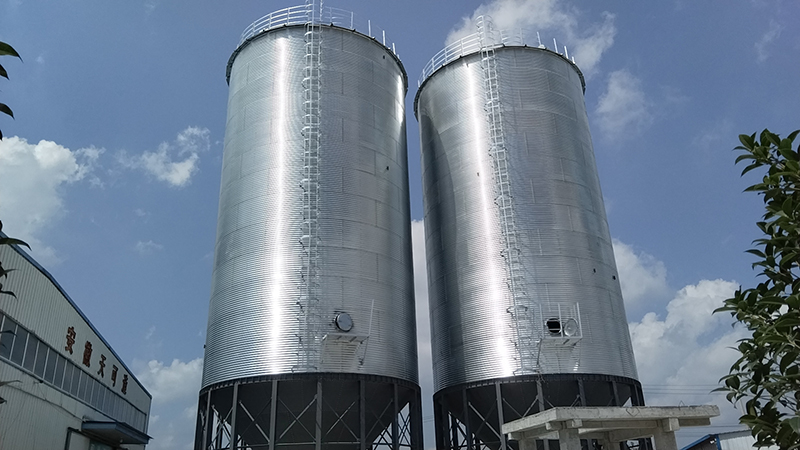

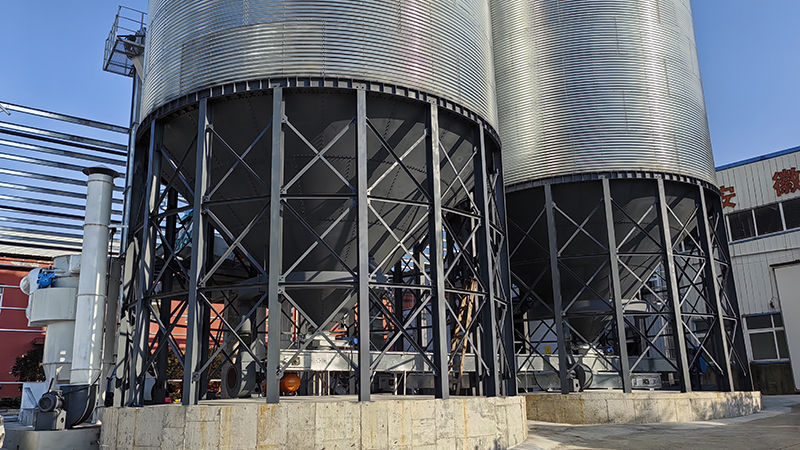

1. Two φ8.2m steel silos with a volume of 888m³ can store more than 600 tons of corn. The silo body is made of 270g/square double-sided galvanized sheet and is integrally formed by mechanical rolling. There are 13 silo layers in total, and the height of each layer is 1.12m. , all-steel cone bottom structure, the cone bottom angle is designed according to the 45° standard, and the material is discharged cleanly. The column legs are made of 18 national standard H-shaped steels with tie bars between the column legs.

There are three 2.50/28 model elevators, with a conveying output of up to 50-60 tons per hour. The bucket elevator has a plexiglass observation window, a squirrel-cage tail wheel, and the belt prevents deviation and slippage. The three elevators are also equipped with anti-return devices. . The fuselage is equipped with explosion-proof windows to effectively ensure safe use. The surface of the cylinder is galvanized to reduce later use and maintenance costs.

3. TGSS25 type drag conveyor, the conveying output matches the 50/28 model elevator, using Zhenjiang three-dimensional polymer polyethylene wear-resistant scraper, manganese steel chain, wear-resistant plate at the head and tail, and herringbone rainproof cover The design and body are galvanized and maintenance-free in the future.

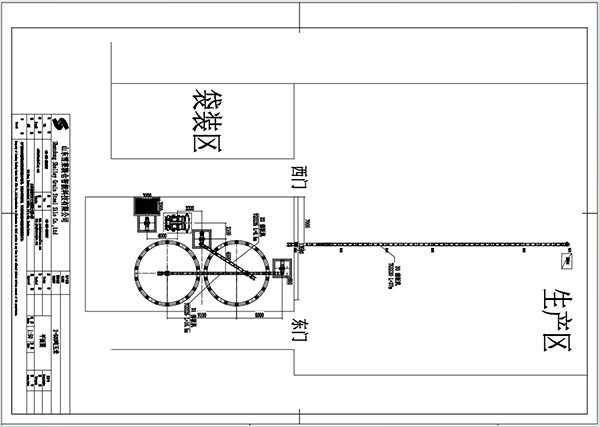

After receiving the order, the company immediately arranges production and orders. After receiving the customer's geological survey report, the design institute will design the basic drawings. After the customer receives the drawings, the civil construction team will be quickly implemented. Our company's after-sales personnel rush to the customer's site to communicate with the customer. The construction team connects and guides infrastructure construction to ensure that customers' infrastructure construction is fast, error-free, worry-free and safe.

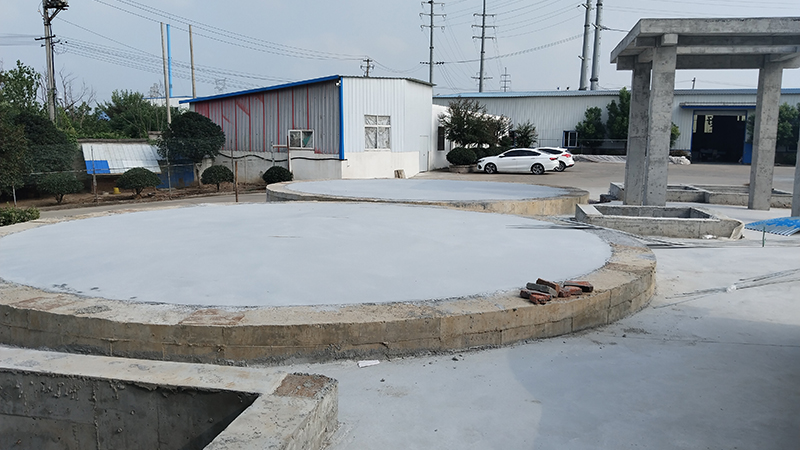

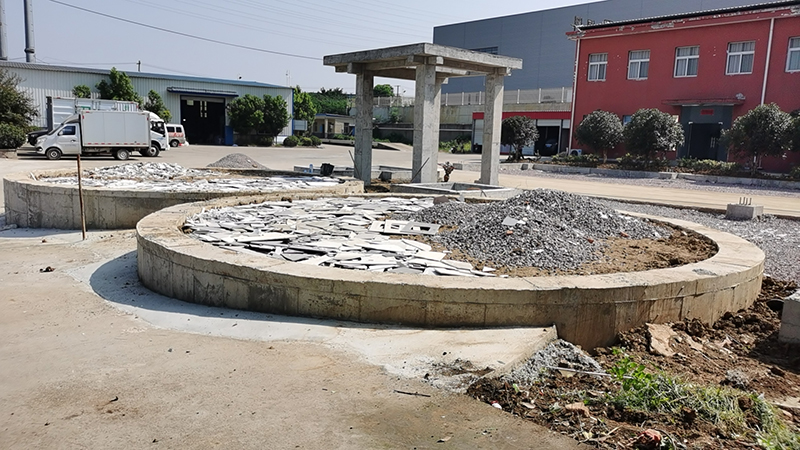

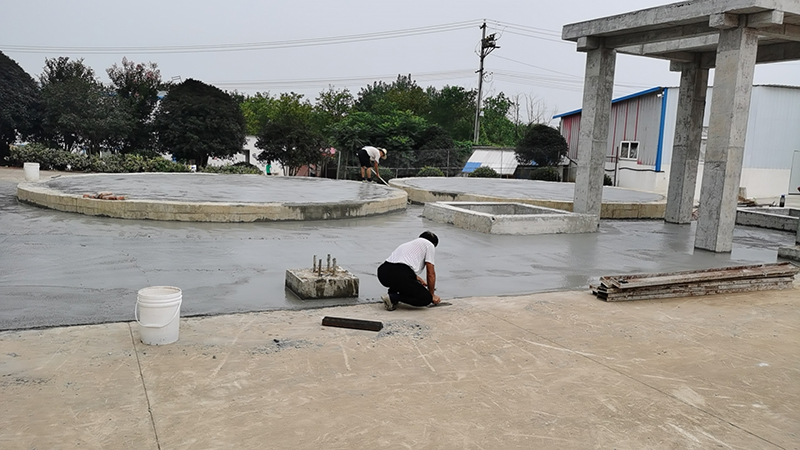

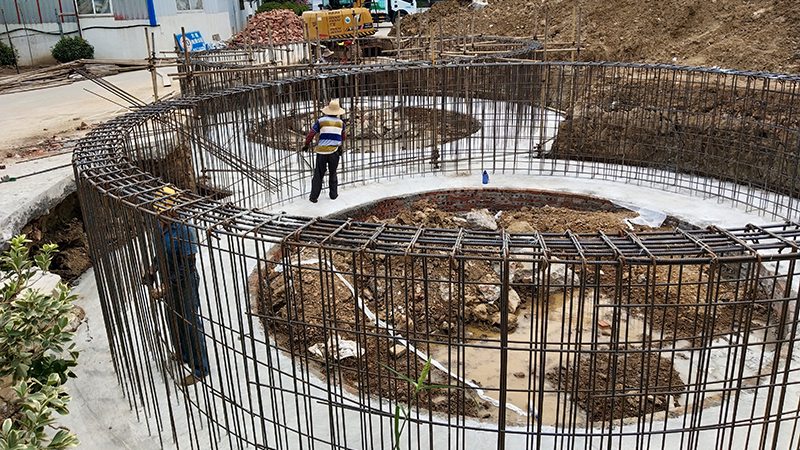

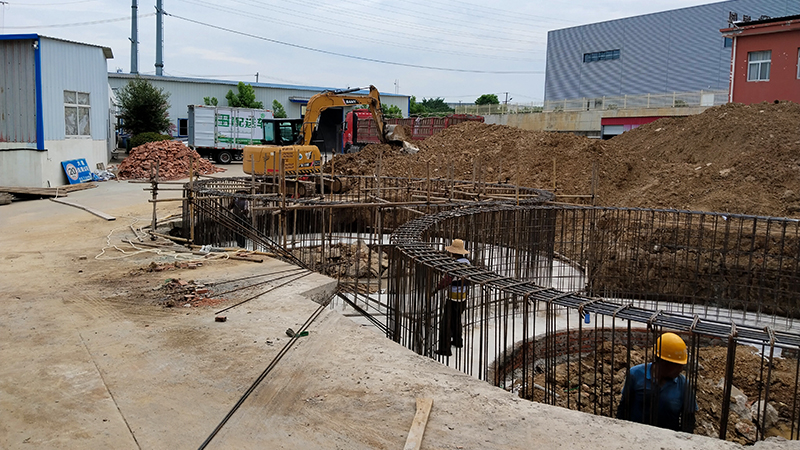

The silo foundation adopts a ring-beam design and a reinforced steel cage structure. The embedded parts are welded after the wooden boards are set up and filled with concrete. After waiting for the concrete to dry, backfill the center soil. After curing, the surface of the foundation and its surroundings are leveled and cemented before installation.

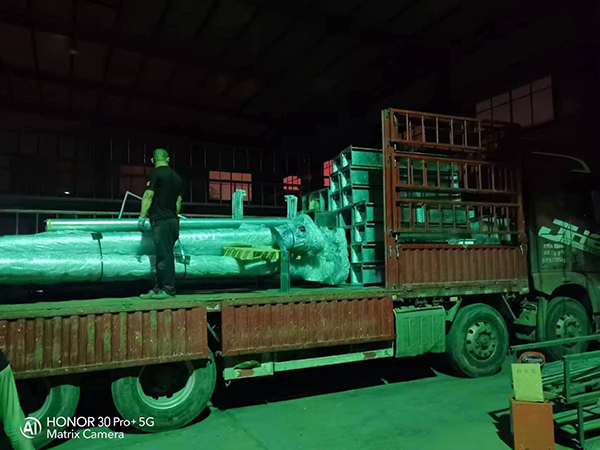

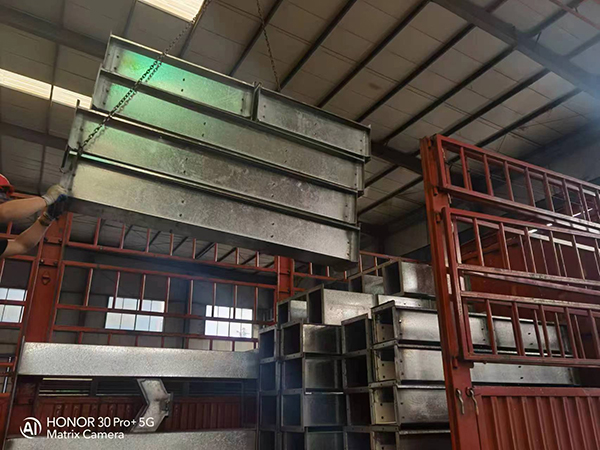

In order to allow customers to save corn procurement costs, the factory workshop worked overtime to deliver the corn before the autumn harvest in Anhui. The installation team entered the site at the same time as the goods, rushing to make progress on site, seizing the installation time, and completing the silo before the customer harvested a large amount of corn. Assembled and received high praise from customers.

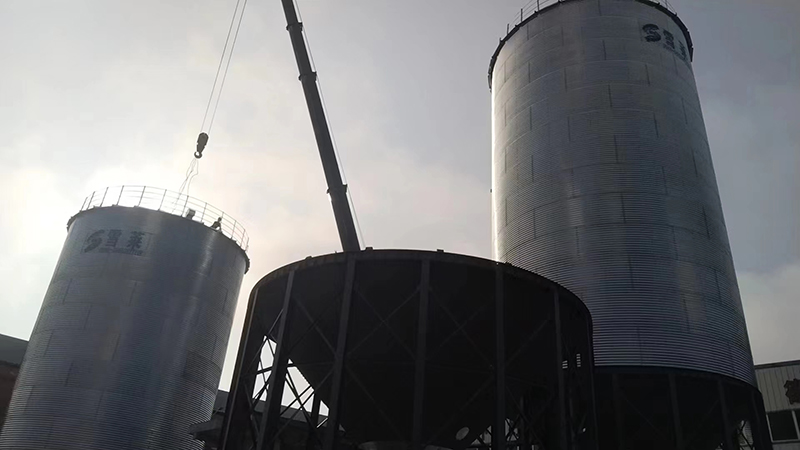

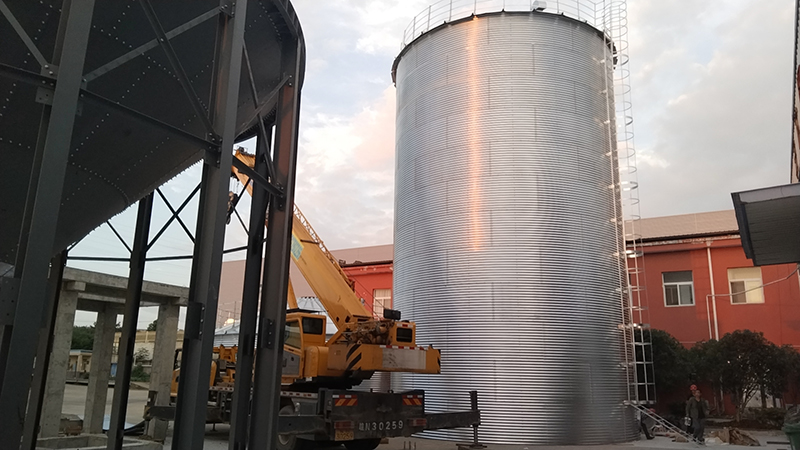

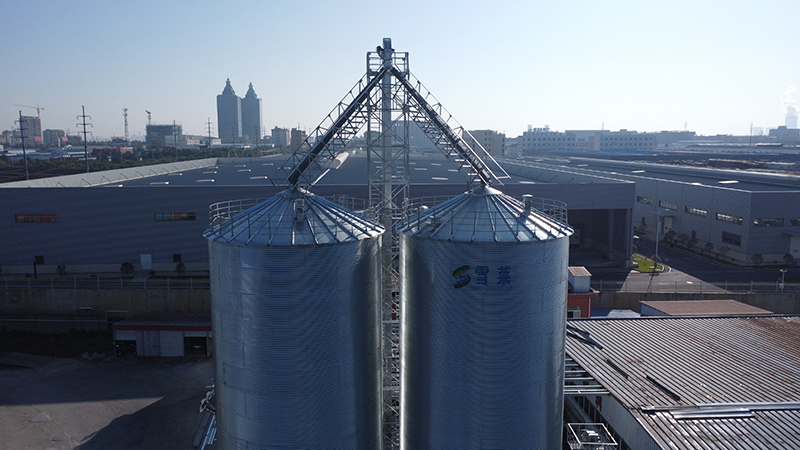

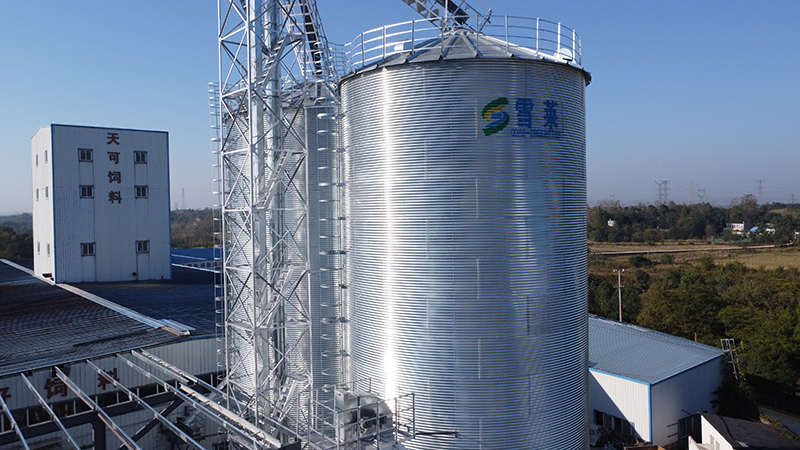

In order to save time and progress, the installation team adopted the crane hoisting installation method, including silo cap enclosure, silo body hoisting, cone bottom assembly, crane inversion, equipment ground assembly, and crane installation, compressing the installation time to 25 days, 10 days ahead of schedule. Carry out equipment installation and debugging.

Around October 10th, after the installation of the complete machine equipment was completed, our company's sales manager and after-sales technicians quickly rushed to the Anhui site to conduct on-site test machine loading. After on-site debugging and on-site feeding, on-site problems were discovered in time, and the on-site installation team Improve immediately and deliver the silo equipment ordered by customers to customers with guaranteed quality and quantity. When customers are satisfied, we feel at ease; when customers feel at ease, we feel comfortable.
