8-1000T soybeans storage steel silos project for large grain trading company in Rizhao Province China

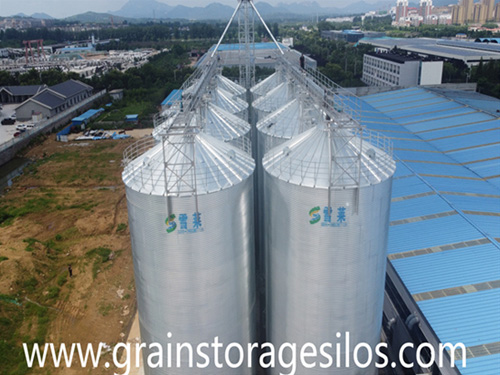

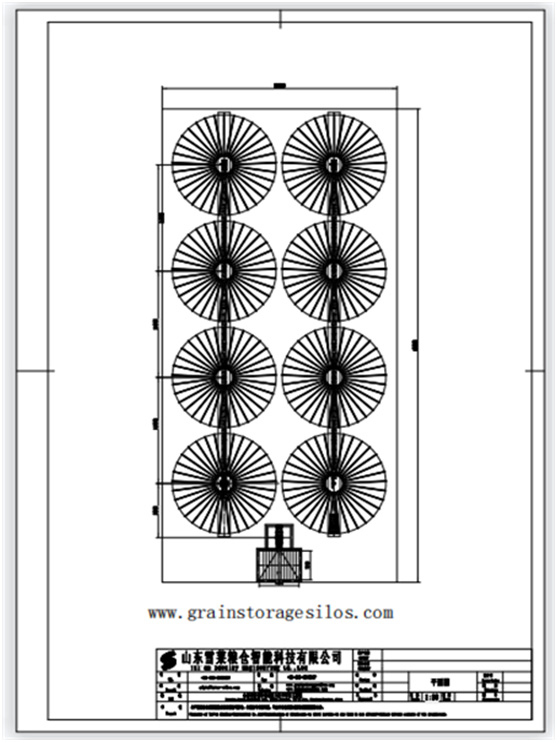

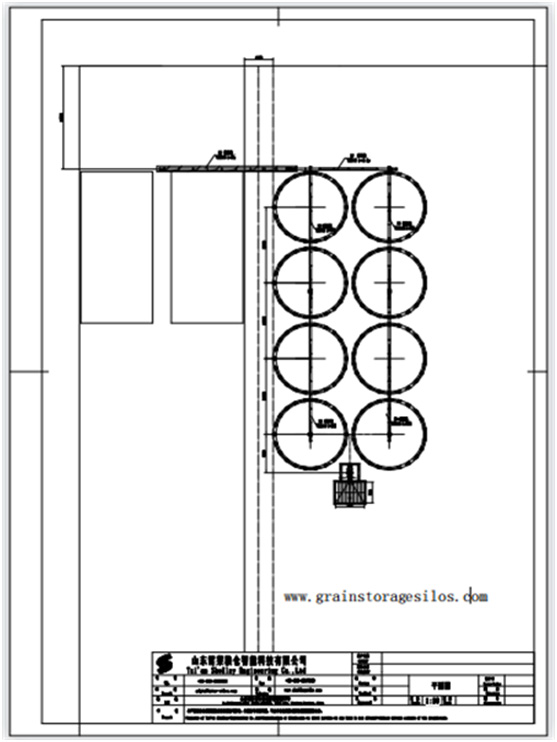

This 8 sets of 1000T soybean storage hopper bottom steel silos project is for a large grain trading company. 8 sets of hopper bottom steel silos are arranged in 2 rows, 4 sets in a row. The technical process is soybeans were unloaded into the intake pit, and then are lifted to the top by the bucket elevator, and the grains are sent to the drag chain conveyor on the top of the silo for storage through the electric tee and the grain spout.There is a drag conveyor at the bottom of the silos, which transports soybeans to the loading position for sale.

The hopper bottom steel silos includes guardrails, manholes, natural ventilation windows,internal and external ladders, doors, and door platforms.
Assembly galvanized hopper bottom storage steel silo can ensure grain storage security and save space and labor cost.And assembly silo facilitate transportation and reuse to save the cost for customers.
The specific parameters of the steel silo are as follows
2x1000T galvanized steel silo specification in this system
Model:TCZK10013
Diameter:10m
Volume:1360m3
Eave height:20.47m
Total height:22.97m
Hopper bottom silo rings:13 rings
Silo bottom angle:45°
Zinc coated:275g/m2

Delivery and installation service

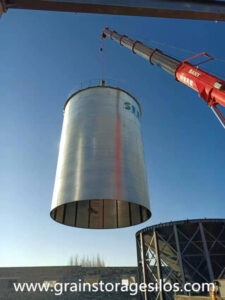

After the processing of this project in the factory workshop is completed, it will be shipped to the project site through logistics. After the goods arrive at the site, we TSE sent installation personnel to the project site to unload the truck and complete the installation and commissioning of the project. With the cooperation of both parties, the installation of this project was successfully completed. This project got the highly.

Hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are the steel silos with a cone bottom. Hopper bottom silos are erected on the supporting structure to make the products unloading easily through gravity. Hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos bottom through transportation equipment,achieving accurate material extraction or batching.
