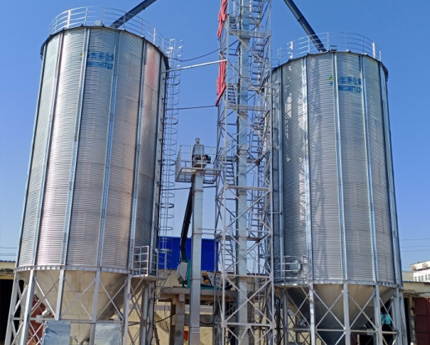

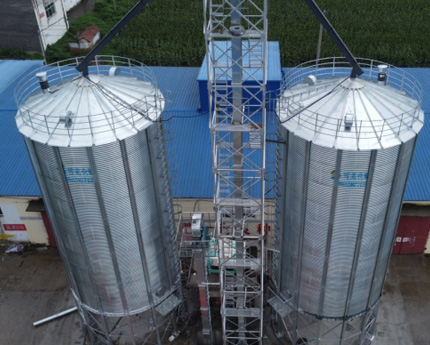

The project is 2 sets 300T wheat steel silos,process flow as below: grain is conveyed into No. 1 elevator from dumping pit,then into vibrating screen machine,the machine will separate impurities out will the principle of different size between materials and impurities,then transported to the silo top by elevator,matched with 3 way out electric distributor,then respectively grain is conveyed to the 2 sets 300T wheat silos.Silos are equipped with ventilation and temperature measuring device, It can detect the changes of grain temperature and humidity in the silos in real time to achieve the role of safe grain storage.

 Specifications of 2 sets 300T Hopper Type Steel Silo :
The 300T silo is mainly used for corn,wheat,paddy rice etc grain and other granular materials storage.It has the advantages of high degree of mechanization and long service life etc.

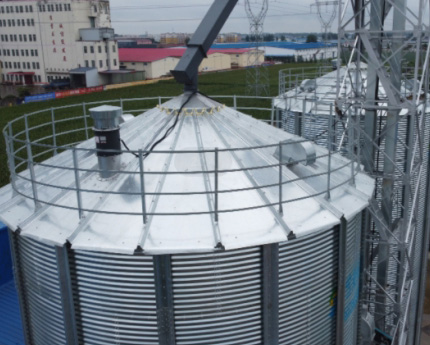

  300T hopper silo volume:377m3,diameter:6.4m,eave height:15.3m,total height:16.95m,silo top angle:25 degree,silo top cover plate is theδ1.0mm thickness high quality domestic hot dip galvanized steel sheets.Silo top is matched with natural ventilation windows, manholes,ladder,and is sealed with aviation cement and waterproof gasket,and safety guardrail is arranged around the silo eaves.
Silo body:silo body is made of the high quality hot dip galvanized steel coils of the large steel mills.Double-sided galvanized zinc quantity of 275g/㎡. The final finished galvanized layer is continuous, smooth, uniform, corrugated plate is using punching form. The silos plate joints are sealed with aviation waterproof cement strips. Column: The main function is to increase the earthquake resistance, resistance to lateral, vertical load capacity, increase the vertical stability of the silos; The outer column and silos wall are connected with high-strength specially customized Dello galvanized bolts.

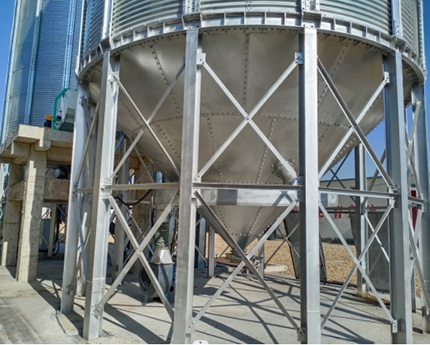

The cone bottom of steel silos is made of steel structural parts, the structure is easy to discharge.

Shipping and installation service

The whole silos project is designed and finished production in our factory,After production is finished,we arrange installation personnel to Anhui Longyue silo site to unload trucks and complete the installation and commissioning of the project.With the cooperation of both parties,we successfully completed the installation of the whole silos project,our company,products and engineers won high praise from the customer.
