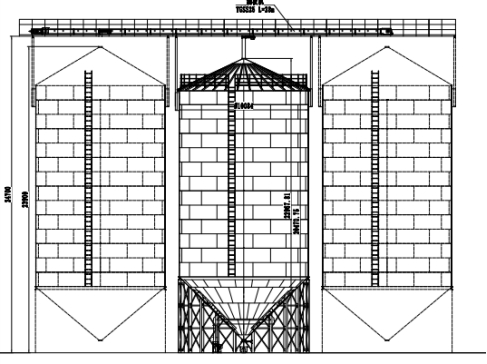

The project is 1 set 1000T corn storage steel silo,process flow as below: grain is loaded by 30T/H capacity bucket elevator to the silo top drag conveyor,then conveyed into the silos.Temperature monitoring system and ventilation system is designed,blowers and suction fans can work together effectively to ensure a long time safe storage of corn.

Specifications of 1000T Hopper Type Steel Silo :

The 1000T silo is mainly used for corn storage.It has the advantages of high degree of mechanization, easy discharge and long service life etc.

Silo descriptions:volume:196m3,diameter:6.4m,eave height:5.6m,total height:7.2m,silo top angle:25 degree,silo top cover plate is theδ1.0mm thickness high quality domestic hot dip galvanized steel sheets.Silo top is matched with natural ventilation windows, sealed with aviation cement and waterproof gasket,and safety guardrail is arranged around the silo eaves.

Silo body:silo body is made of the high quality hot dip galvanized steel sheets of the large steel mills.Double-sided galvanized zinc quantity of 275g/㎡.The columns and silo walls are connected with high strength and specially customized Dacrossa galvanized bolts.

Specifications of 1-200T Corn Meal

Volume:196m3,diameter:6.4m,eave height:5.6m,total height:7.2m,

Silo top angle:25 degree,silo top cover plate is theδ1.0mm thickness high quality domestic hot dip galvanized steel sheets.Silo top is matched with natural ventilation windows to keep grain for safe storage.Meal silo is installed near the 1000T silo, four-axis conveyor is silo bottom discharge,material level is used to control the amount of grain out.

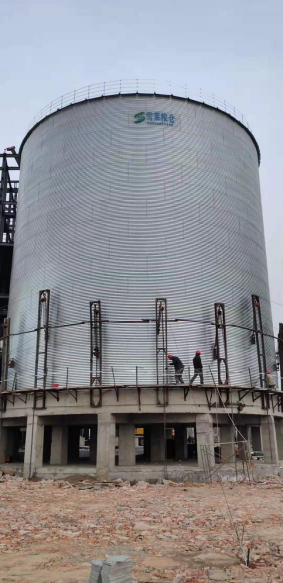

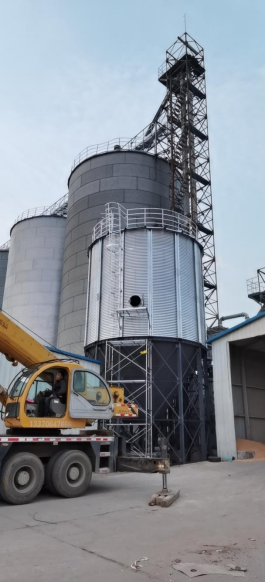

Shipping and installation service

After production is finished,we arrange engineers to silo site to guide installation.With the cooperate of customer,the silos project is installed successfully.Our company,products and engineers won high praise from the customer.

Application of hopper steel silos
Single set of hopper steel silos can reach 1500T,and can be applied in feed mill,flour mill,poultry farm,wine mill,national grain depot,grain trading company,food processing plant etc.Steel silo has supporting equipment, which can be configured according to the requirements of loading, discharge, ventilation, drying, temperature measurement, full measurement and other equipment, to achieve the purpose of safe grain storage. Because the steel plate bin has the advantages of use small area, high degree of mechanization, convenient installation and delivery, easy to realize automation, so the assembled steel plate bin has been widely used.
