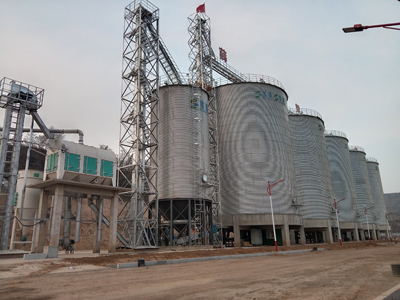

5 sets 2000T Flat Bottom Galvanized Steel Silos for Coarse Cereals Storage are under construction now.
This is a Coarse Cereals storage steel silo project in Shanxi Porvince China. 5 *2000T flat bottom silos are under construction now,and all foundation construction have been finished.

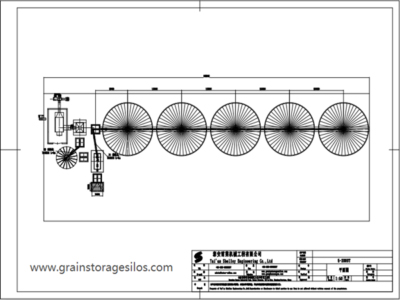

The whole project include Cleaning System,Transportation System,Ventilation System and Temperature Monitoring System.Each flat bottom silo is equipped with a sweep auger,in order to clean up the residual material at the bottom of the silo.

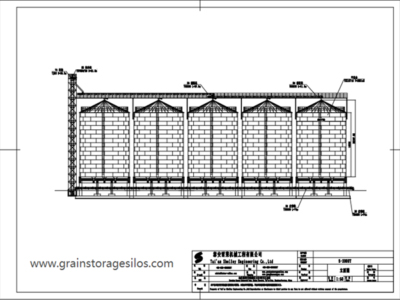

5x2000T galvanized grain silo specification in this system
Model:TCK13715
Diameter:13.7m
Volume:2661m3
Eave height:16.855m
Total height:20.06m
Flat bottom silo rings:15 rings
Silo roof angle:25°
Zinc coated:275g/m2

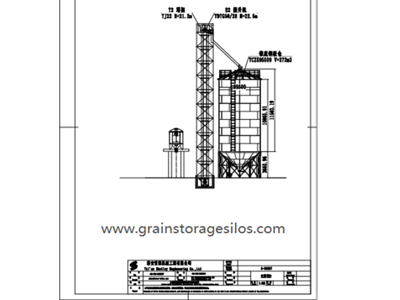

1T hopper bottom steel silo specification in this system
Model:TCZK05509
Diameter:5.5m
Volume:272m3
Eave height:13.73m
Total height:15.16m
Flat bottom silo rings:9 rings
Silo roof angle:25°
Zinc coated:275g/m2

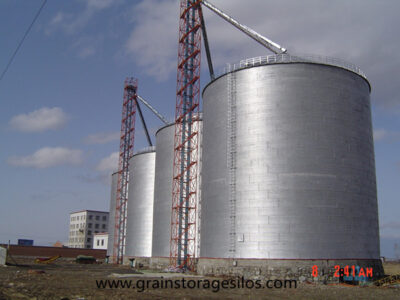

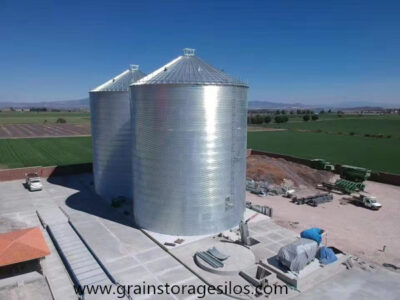

Flat bottom silos (also called flat bottom bins, flat bins) are commonly selected steel silos or steel bins to storage bulk grains and other materials. Large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³.  These grain bins are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. All our flat silos or flat bins are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.

Taian Shelley Engineering Co., Ltd. ( subsidiary company named Taian Shelley Grain Silo Co., Ltd)  is the leading steel silos designer, manufacturer and exporter dedicated in supplying turn-key grain storage solutions to worldwide customers.  We had gained advantages in steel bins research and development, product design, manufacturing, site installation and services since the foundation by Shelley Jin in 2007.
Shelley Engineering is willing to become your partners with our high cost-performance products, excellent quality and perfect after-sale service. We are looking for dealers around the world.
