Hebei Jinhui Luyuan Agricultural Science and Technology Co., LTD. Steel bin and supporting equipment

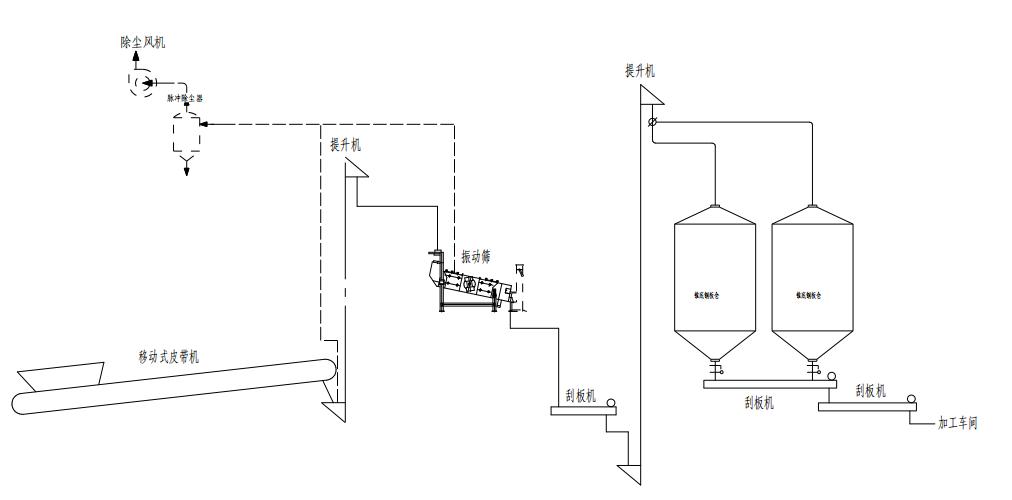

The project is a turnkey project, including steel silo body and all accessories installation. The pre-stored material is transported to the loading position through the conveyor belt, and then transported to the plate type sorting screen and pulse dust removal equipment by the first elevator. The second elevator of the sorted product is raised to the specified height, and then transported to different silos by the scraper and chute. Product and equipment quality in accordance with the national industry standards, enterprise record standards and written requirements of the buyer.

Steel plate storage material is Tartary buckwheat grain crops, volume: 636m3 diameter: 8.2m warehouse eave height :11.19m total height :13.26m cone top Angle: 25.
The top cover plate of the silo is δ1.0mm galvanized sheet, which is made of domestic high quality galvanized sheet. The top of the silo is provided with natural ventilation window, manhole and ladder. The silo body is sealed with aviation cement and waterproof gasket.
The thickness of 1-3 layers is 1.0mm, the thickness of 4-6 layers is 1.5mm, and the thickness of 7-10 layers is 2.0mm.
The volume of the cone base is 72m3, and the height of the ring beam is 5.53m. The part of the cone base mainly includes the cone base plate, the ring beam, the column foot, the tension bar, the spray painting treatment of the cone bottom, and the discharge port is 1.5m from the ground. Steel column foot HM200*150, 18 pieces. Reasonable design, qualified equipment, qualified installation quality.
The company's marketing is mainly positioned at domestic and foreign high-end customer groups, customized steel bin complete equipment projects, complete projects exported to the United States, Canada, Australia, New Zealand, Mexico, Russia, Ukraine, Kazakhstan, Thailand, Vietnam, South Africa, India, Pakistan, Bangladesh, etc. Egypt, Honduras, Chile, Peru, Guatemala, Ecuador and more than 50 countries and regions. With the honest business philosophy, excellent product quality and good after-sales service, we have won wide praise from customers at home and abroad and established a long-term cooperative relationship.
