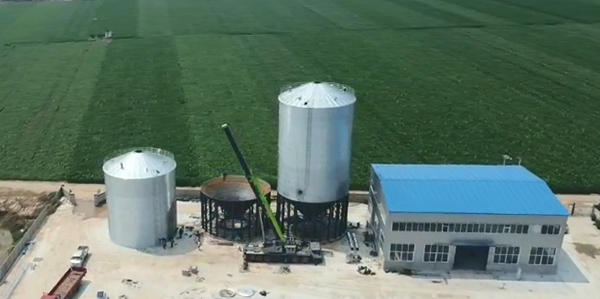

This project is Shanxi Datong drying corn Factory, three 2000T cement cone bottom insulation steel silos +1-500T all steel cone bottom temporary storage silos, with drying tower system engineering.

The project workflow is as follows:

The wet corn is fed into the bucket elevator through the drag conveyor at the bottom of the grain discharge pit, and the elevator will transport the corn to the double-drum pre cleaner. After the double-drum pre cleaner to clean the large and small corn in the corn, combined with the operation of the bucket elevator before the wet grain temporarily deposited, the cleaning corn is temporarily stored in the steel plate silo.

When the corn needs to be dried, the operator receives the transmission signal from the drying equipment through the PLC intelligent control system, and automatically opens the electric gate at the bottom of the temporary storage bin and the belt conveyor under the bin to transport the grain to the drying equipment. The dried corn is transported by the belt conveyor to the bucket elevator, which stores the corn in different steel silos with the top electric four-way.

Specific parameters of steel silo

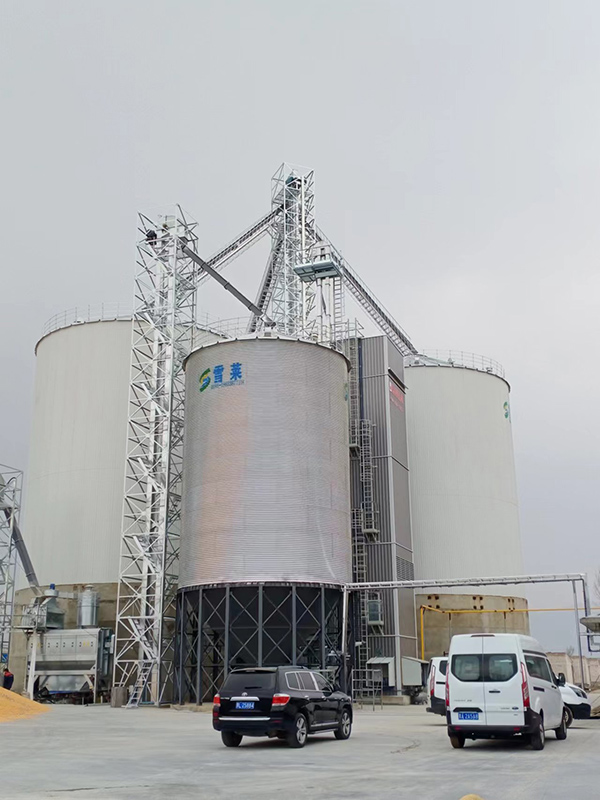

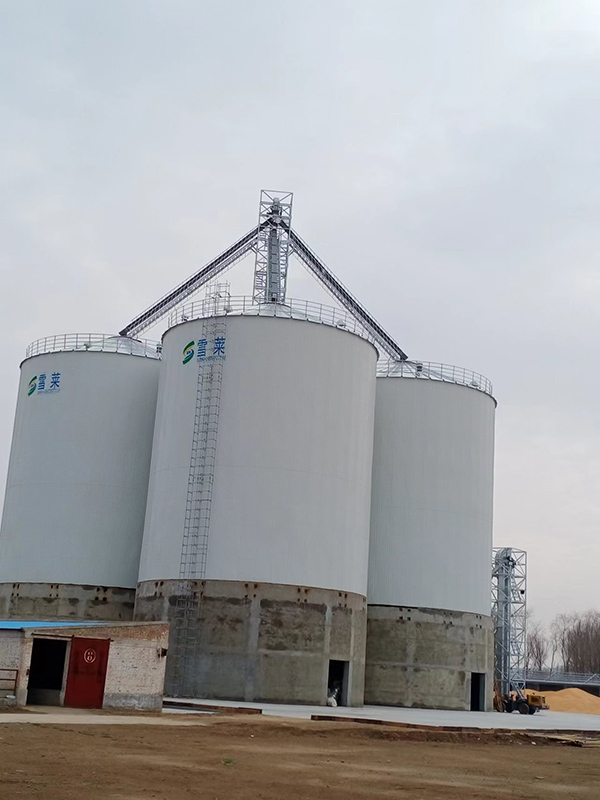

2000T cement cone bottom insulation steel silo with 2700 cubic meters capacity, the diameter of 13.7 meters, the number of layers of 14 layers, warehouse eaves height of 21.7 meters, the total height of 25.1 meters;

The 500T volume is 710 cubic meters, the diameter is 8.2 meters, the number of layers is 10 layers, the height of the warehouse eaves is 16.2 meters, the total height is 18.3 meters;

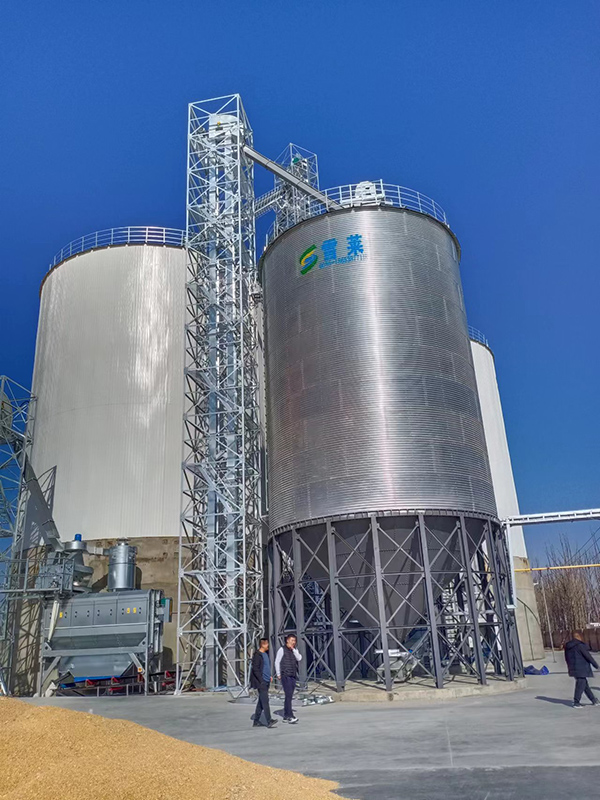

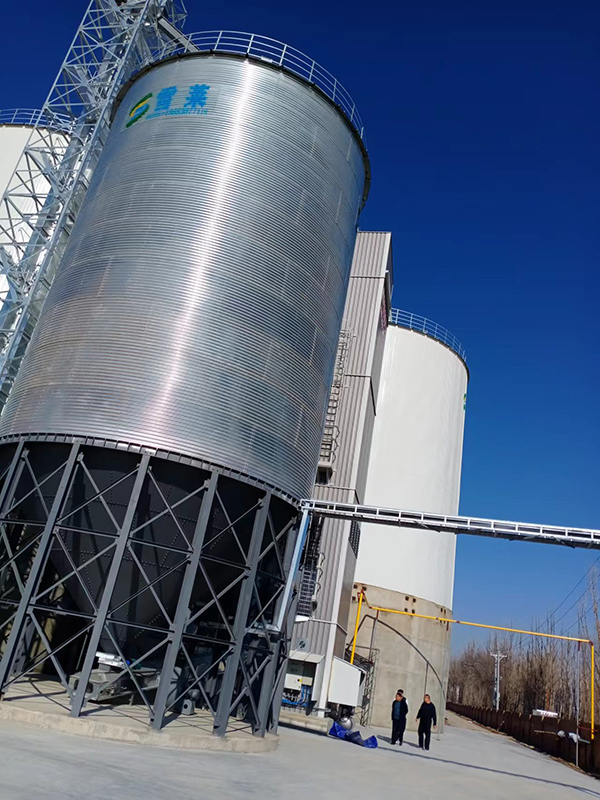

The top angle of the steel bin cone is 25 degrees, all galvanized plates are made of domestic high-quality galvanized steel plates, and the galvanized layer is 275g/㎡.Hopper-bottom steel bunker top includes guardrail, manhole, natural ventilation window, bin top simple ladder, hopper-bottom steel bunker barrel includes internal and external ladder, bin door, bin door platform.The whole steel hopper bottom part of the steel bin cone bottom includes cone bottom plate, ring beam, tension bar, column foot spray painting.

Due to the large temperature difference between day and night in Datong area, condensation is easy to form on the inside of the silo wall, resulting in local grain agglomeration and moldy deterioration in the silo. In order to solve the above problems, we propose to lay a glass silk wool insulation layer on the outer layer of the steel silo, and the most external is fixed with a color steel plate, which can ensure the quality of food storage and extend the storage time of food.

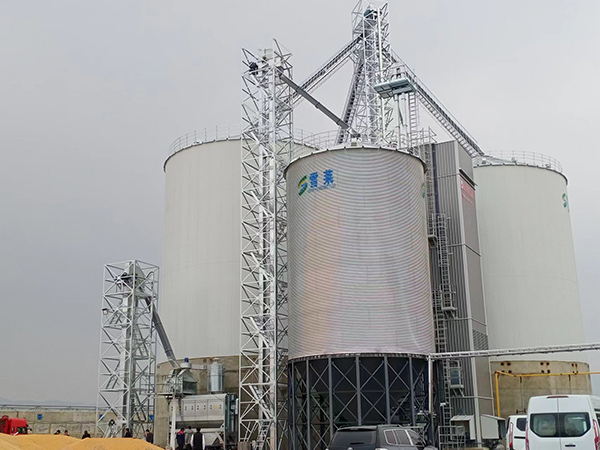

Installation and debugging

Due to the short production period, the user's foundation construction takes up the installation period, the epidemic situation and other factors, the company immediately arranges production after the contract is signed, and connects with the user's foundation construction in real time to ensure the consistency of foundation construction and equipment installation.The components are delivered to the site for installation after the production is completed and inspected. The installation team has worked hard to overcome the difficulties brought by the cross-construction with the site foundation, relying on professional and mature construction experience, strictly checking each process, using high-quality construction technology for installation and commissioning, and completing the installation period agreed on by the contract 10 days in advance. With high-quality products and the principle of service first, Shelly Grain Warehouse has won high praise from users.

Application of all steel plant hopper bottom silo

Assembly steel silo can not only be used in grain and oil processing enterprises, but also can be used in feed mills, flour mills, grain trading companies, farms, soybean products processing plants. The degree of mechanization of assembled steel silo can effectively reduce the operating costs of enterprises, and the small land area can reduce the infrastructure costs of enterprises. In addition, the assembled steel silo also has the characteristics of disassembly, which can reduce the secondary investment cost of enterprises and avoid the loss of enterprise assets.Assembly steel silo has low weight, less consumables, high degree of standardization, and can be made into standard parts according to domestic materials, so as to achieve standardization, generalization and serialization of production, and can be arbitrarily combined into various types of silo required by users.The assembly of the assembled steel silo is simple and fast. All parts of the steel silo are connected by bolts. The installation is fast and the construction period is short. The assembled steel silo is easy to realize automation, and the steel silo has supporting equipment, which can be configured according to the requirements of the use of enter silo, exit silo, ventilation, drying, temperature measurement, full measurement and other equipment to achieve the purpose of safe grain storage. The cost of assembled steel silo is low and the service life can reach more than 30 years. Because of the inherent advantages of assembled steel silo, it has been widely used in grain storage.
