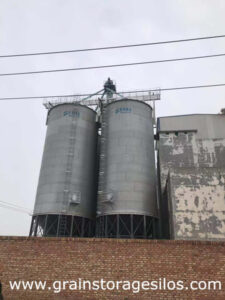

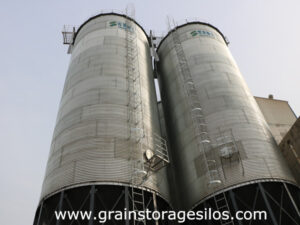

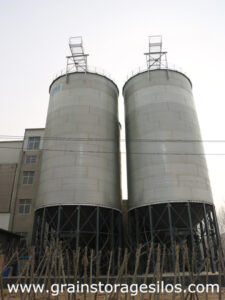

this project is4 sets 520t galvanized hopper bottom silos for wheat installed in shandong province, china.the project has been finished for about 5 years,and are running very well by now.
tse is the grain silos factory,the 4 sets galvanized silos are customized according to customer’s requirements.
please check tse silo design below for your reference.
galvanized hopper bottom silos specifications:
silo model:tczk07313
volume:692m3
diameter:7.30m
eave height:19.12m
total height:20.98m
zinc coated:275g/m2
hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are?the steel silos with a cone bottom. hopper bottom silos are erected on the supporting structure to make the delicate products unloading easily through gravity. hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. the stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
