Screw conveyor is one of the main material handing equipment for grain storage silos. TLSS series screw conveyors use spiral blade rotation to promote the bulk material to complete the conveying process, it can be horizontal or inclined (inclination angle of less than 20 °) to convey powder, granular or small pieces of material, can not transport large pieces of corrosive, fragile or easy to bond to a fiber material block.
TLSL shaped vertical screw conveyor is suitable for vertical or greater inclination conveying powder, granular, non-sticky, bulk density of not more than 1.3t / m3 of dry materials, such as grain, bran oil, feed, etc., not suitable for delivery of bulk and viscous material, and it couldn’t convey material bulk density less than 0.5t / m3 and highly mobile.

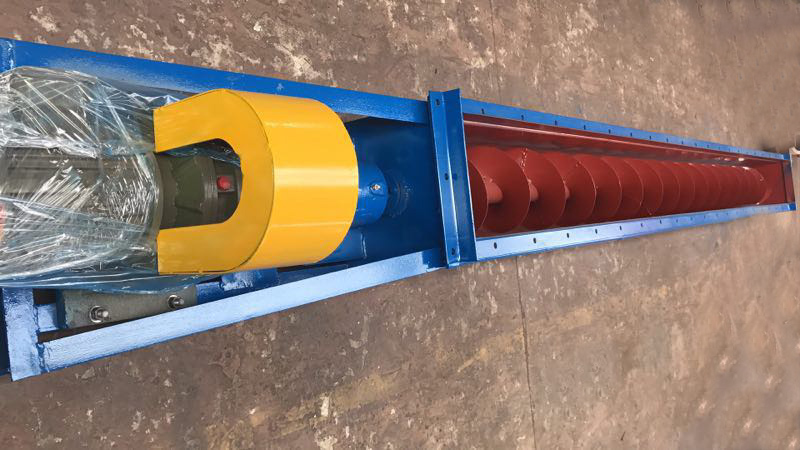

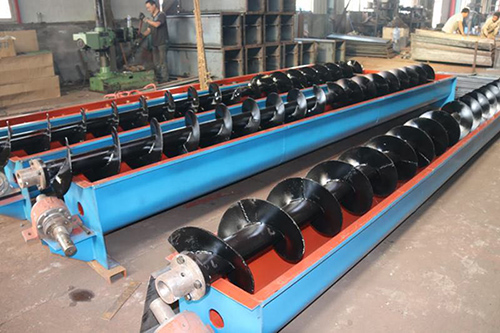

TLSS series horizontal screw conveyor is a kind of fixed mechanical conveying equipment. It is suitable for the horizontal conveying of granular or powdery materials in the grain and feed industries, or close to the horizontal (inclination angle <20°) inclined conveying. The suspension shaft is made of copper Oil-impregnated bearings for tile or machine tools, easy to lubricate; except the bearing housing, all are stamped with steel plates, saving labor and materials; the bearing housing at the outlet end adopts a simple dust isolation structure, which is safe and reliable; the spiral body has multiple forms of left-handed and right-handed, and the inlet end It can be interchanged with the bearing seat at the outlet end, and the process flexibility is great.
TLSS Screw Conveyor Features
1. Simple structure, small cross-sectional size, and good sealing performance; 2. It can be loaded and unloaded on the entire length; 3. It can also be conveyed in two directions in the same machine slot; 4. The operation is safe and convenient, and the manufacturing cost is low; 5. It has the function of mixing and loosening materials at the same time during the conveying process; 6. According to user requirements, it can be equipped with auxiliary mechani
