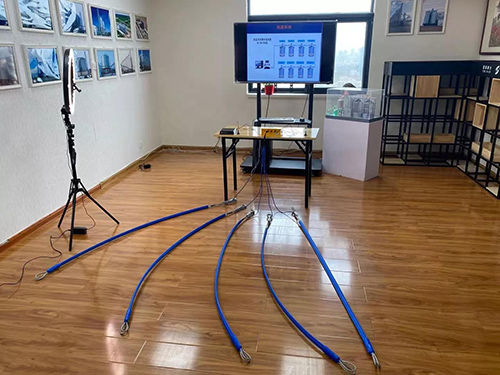

The temperature and water content/humidity is the key point to influence the grain storage quality.So it is very important to know the data of temperature and humidity of the grain.The temperature and humidity monitoring system is the new technology supported by the software,it helps to test the data of grain and shows the alarm in the event of any risk. Timely and regularly monitoring of the temperature and humidity inside the silo/warehouse.So the user can get the data of the grain in time.
Usage: Temperature monitoring system are installed in silo or grain building warehouse, it is used for monitoring grain's moisture or temperature. In order to keep material in a good quality when storing in a long time.

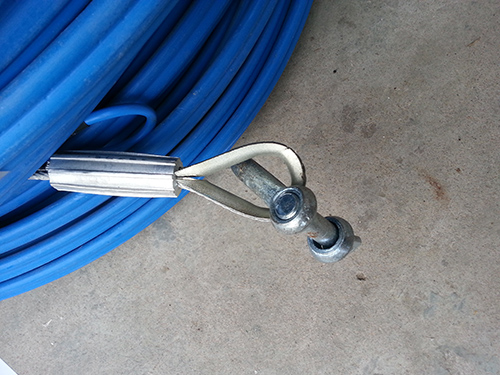

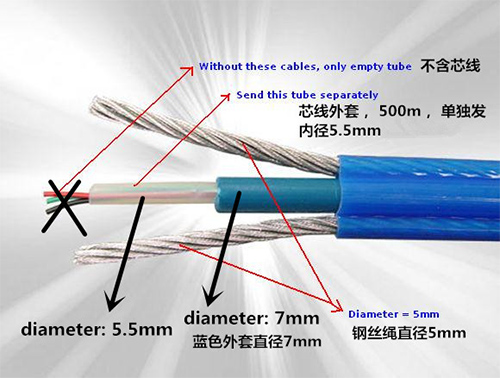

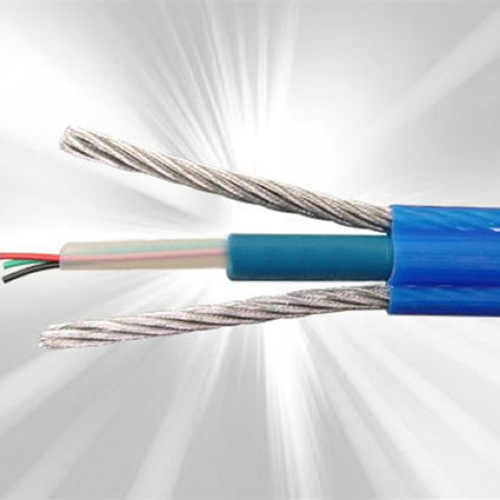

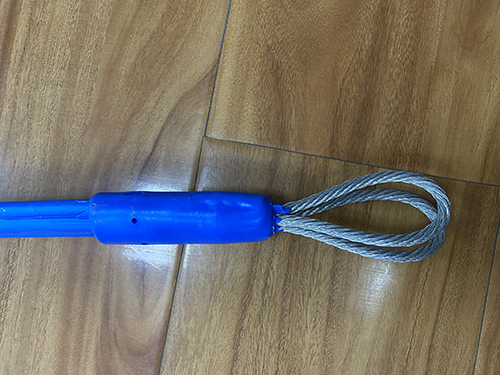

Technical data of Equipment: Temperature measuring range:-30℃----+70 ℃ Humidity measuring range:20---99% RH Temperature measurement resolution ratio:0.2℃ Humidity measurement resolution ratio:1% RH Temperature measurement error: ±1℃ Humidity measurement error:±5% RH Temperature measurement cable tension: Not less than 2.5 tons.

1)Host and extension are using 485 long distance communications technologies. 2)Extension and sensor inside of silo will adopt advanced digital one-wire bus technology 3)Imported digital temperature sensor. 4)Intelligent system fault self-checking. 5)Programming interface is simple. 6)Have the data analysis tool of Temperature curve, Temperature scatter-plot chart, column type chart etc. 7)Temperature and humidity limit alarm. Daytime temperature limit alarm. temperature rise temperature rise 8)The special initial point for silo alarm can prevent the false alarm which is caused by the great variation of temperature. 9)Simultaneously detect temperature & humidity of grain. 10)Support circular measurement, at any time refresh measure temperature& humidity. 11)Support continuous level indicator, ventilation control function. 12)Support cable/wireless data transmission.
