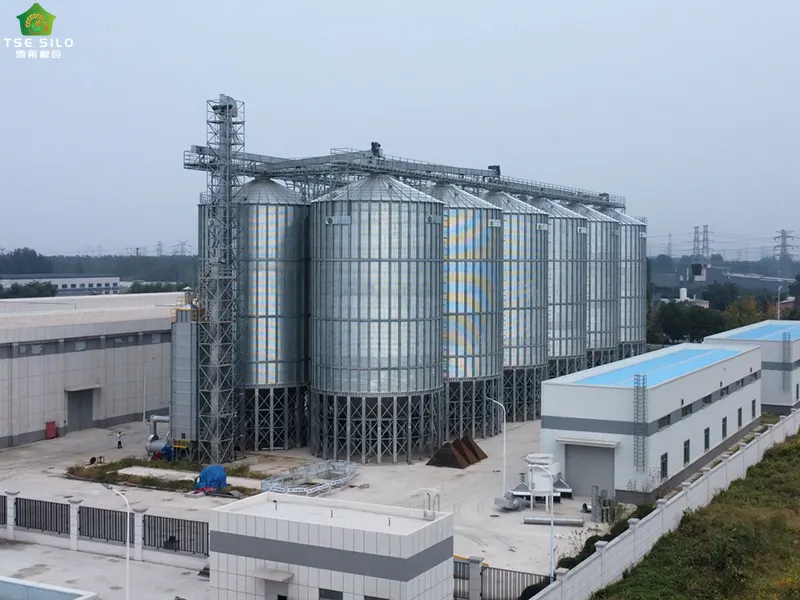

Shandong Digital Grain Warehousing and Logistics (hereinafter referred to as "the Project") is a newly constructed grain storage project. Steel silos are not only essential hardware facilities for efficient grain storage and handling, but also key nodes in the digitalized warehousing and logistics system. With high compatibility, strong scalability, and significant potential for intelligent operation, the steel silo system, supported by technologies such as 5G, the Internet of Things (IoT), edge computing, and cloud computing, can transmit real-time data on inventory dynamics, environmental parameters, and equipment operating status, supporting remote monitoring, intelligent early warning, automated inventory counting, and energy consumption optimization. Based on these data, enterprises can achieve precise inventory management, batch traceability, quality control, and supply chain coordination, significantly improving operational efficiency while reducing human errors and losses, thereby facilitating the transformation of enterprises toward an integrated warehousing and logistics system that is safe, efficient, low-carbon, and intelligent.

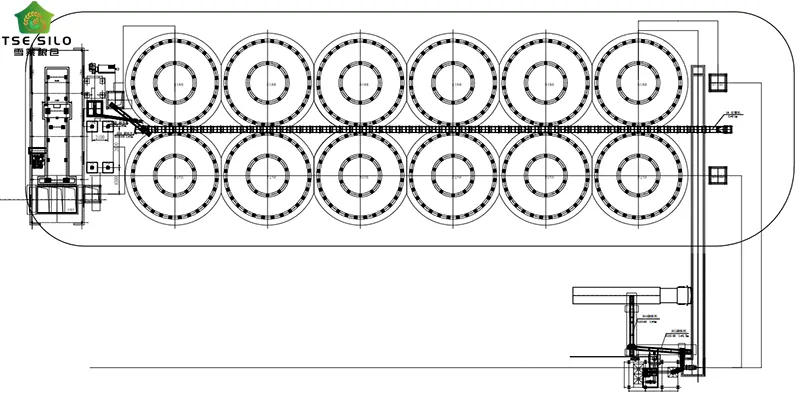

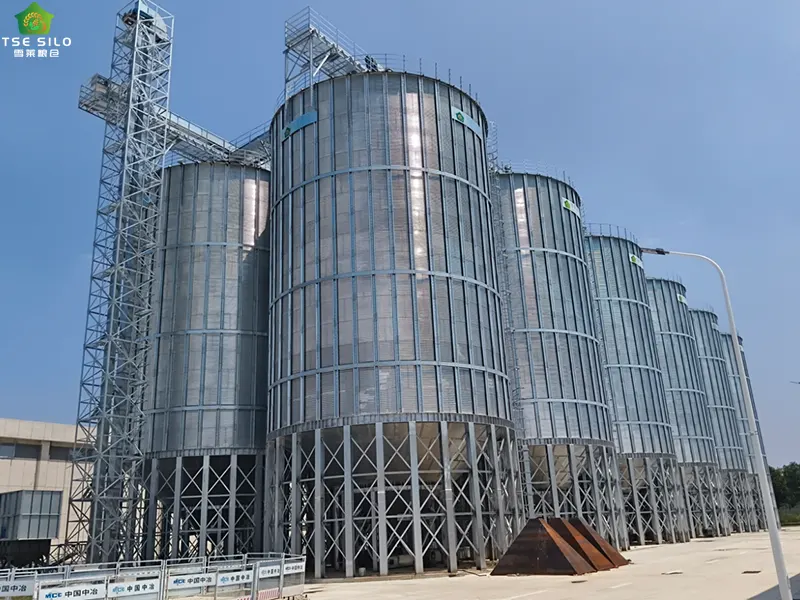

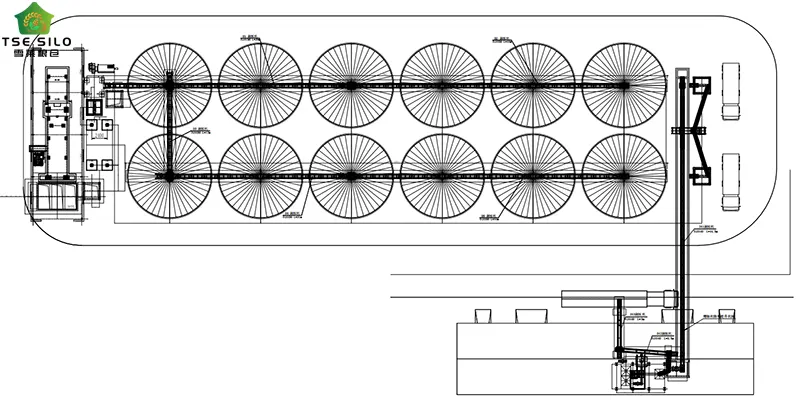

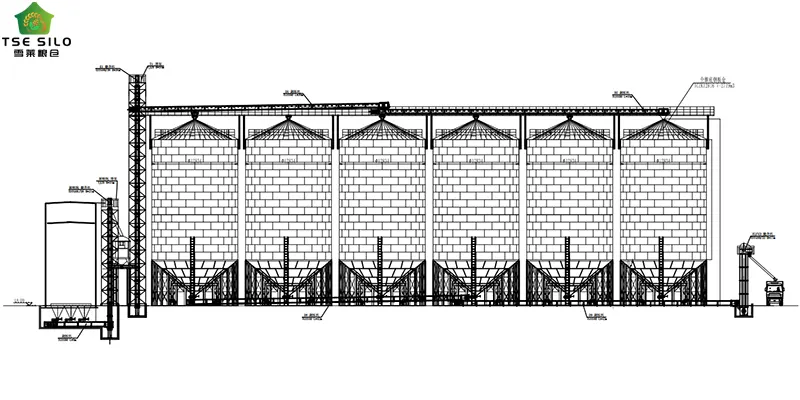

The main scope of this project consists of 12 TCZK12816 prefabricated steel silos, TDTG60/38, TDTG60/33, and other bucket elevators, TGSS40, TGSS50, and other drag chain conveyors, hydraulic truck tipping equipment, a sterilization system, a crushing system, and other supporting facilities, together with the corresponding PLC electrical control system for the above-mentioned equipment.
| Items | Specifications |
| volume: | 2644m³ |
| diameter: | 12.8m |
| silo body height: | 17.92m |
| overall height: | 27.89m |
| silo roof angle: | 25°. |
TDTG60/28 and TDTG60/33 bucket elevators, with wear-resistant polymer liners inside the elevator head. The elevator casing adopts an interlocking forming process, providing high structural strength, while the drive system is equipped with a domestic motor and a hard-tooth-surface gearbox. The elevators use 1000YP rubber bucket elevator belts and HDPE (high-density polyethylene) buckets. The interlocking formed casing also functions as a reinforcing structure and provides water and rust resistance. The tail pulley adopts a cage-type structure to prevent belt slippage. The bucket elevators are equipped with a backstop device to prevent the elevator from reversing in the event of a sudden power failure.

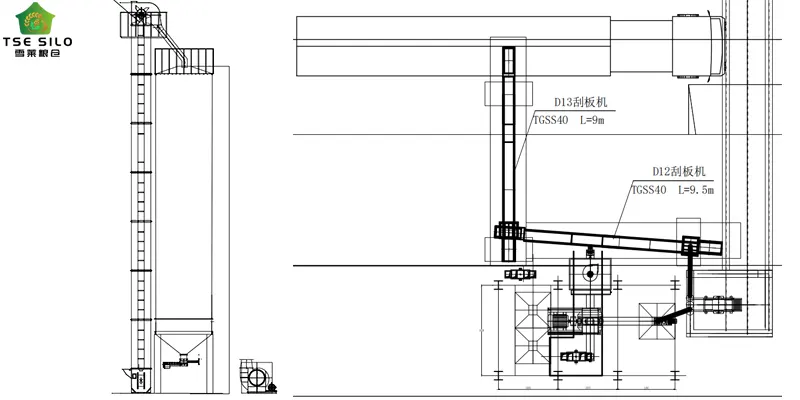

TGSS40, TGSS50, and other drag chain conveyors, featuring manganese steel conveyor chains with high tensile strength and long service life; wear-resistant high-molecular-weight polyethylene scrapers and reinforced nylon support rollers. The conveyor troughs are fabricated from formed steel plates welded with angle steel, providing high structural strength and excellent sealing performance.

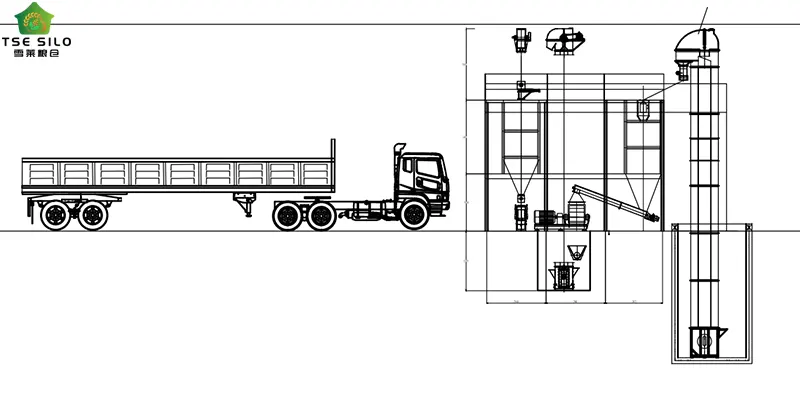

| Items | Specifications |
| Maximum lifting capacity: | 100T |
| system capacity: | ≥5 trucks/hour |
| total lifting and lowering time: | ≤8 minutes |
| tipping angle: | 0°～45° |
| tipping method: | rear tipping |
| platform dimensions: | 18m(L)×3m(W) |
| operating ambient temperature: | -40℃~45℃ |
| cylinder stroke: | 7300mm |
| hydraulic system pressure: | 16MPA |
| total system power: | 30KW |
| hydraulic oil tank capacity: | 1000升 |
| control method: | external power supply and remote-controlled unloading; loading/unloading mode: tipping backward or driving through the platform. |
| Items | Specifications |
| processing capacity: | 200 t/d |
| motor power: | 40kW |
| overall dimensions (L × W × H): | 3000×1930×14790mm . |
The crushing system consists of a wide-body hammer mill, conveying equipment, a buffer hopper, a finished product hopper, and other auxiliary equipment, with a crushing capacity of 10 t/h.

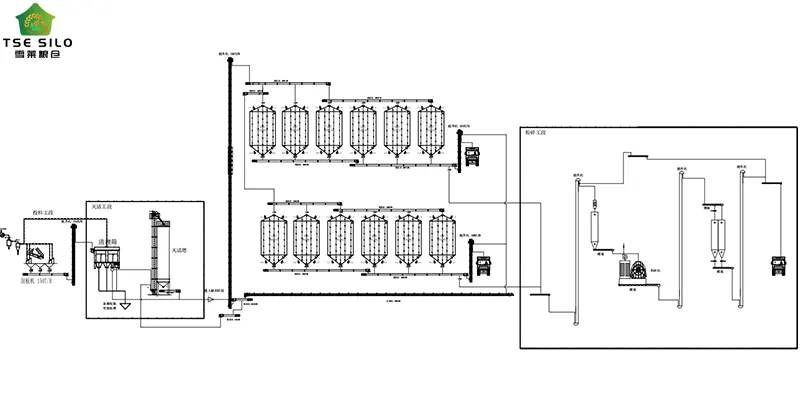

Depending on the actual production requirements, the sequence for starting and stopping the equipment may vary. The general principle for equipment start-up is to follow the flow of grain (material) movement and start the equipment one by one in reverse order, beginning with the final processing stage and proceeding upstream. The shutdown sequence is exactly the opposite, with the equipment being stopped one by one from the first processing stage toward the subsequent stages. A certain time interval should be maintained between the start-up and shutdown of each piece of equipment to ensure that the grain (material) is properly conveyed without spillage, leakage, or residual material.

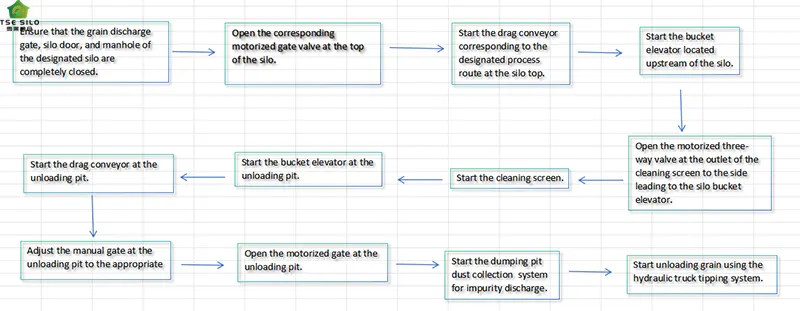

Material flow into the 12 × 2,000-ton silos. The equipment start-up sequence is as follows:

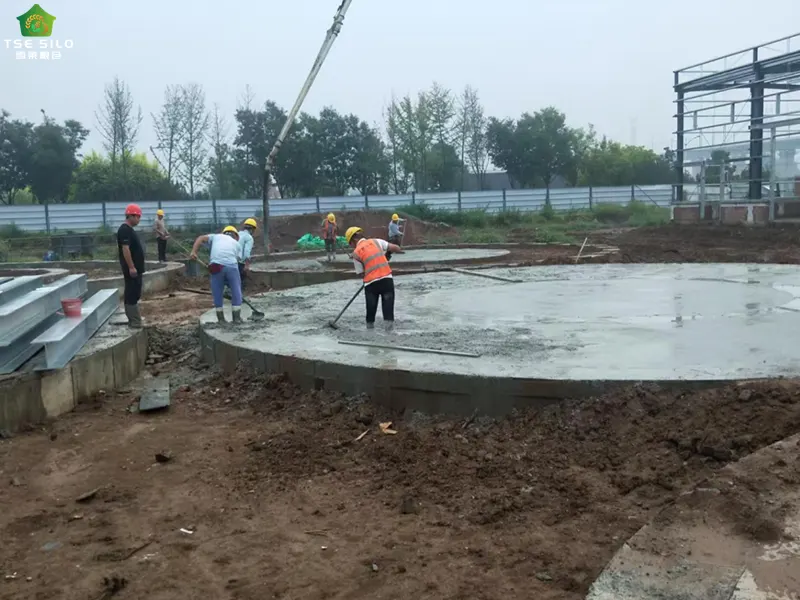

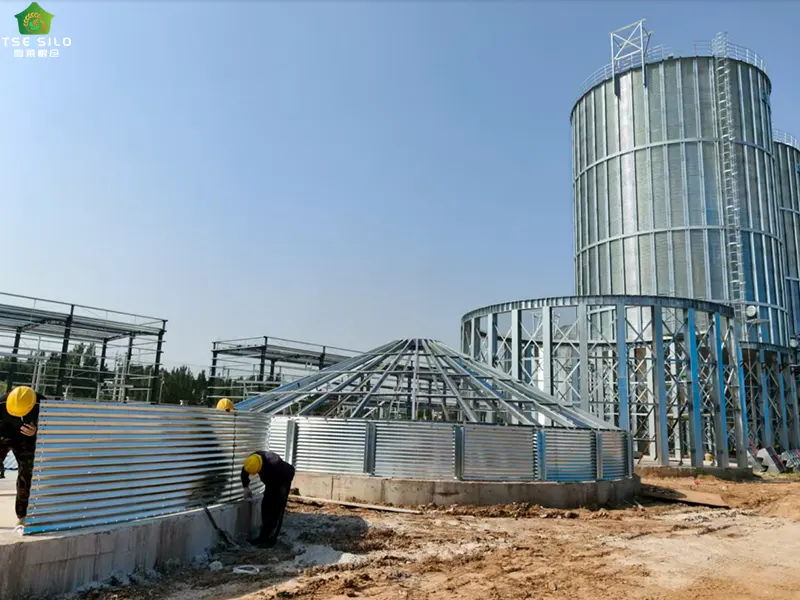

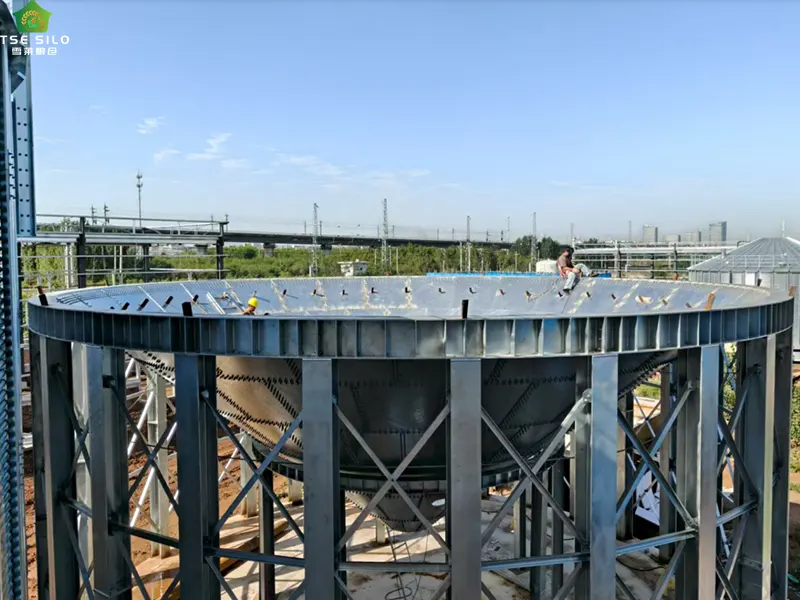

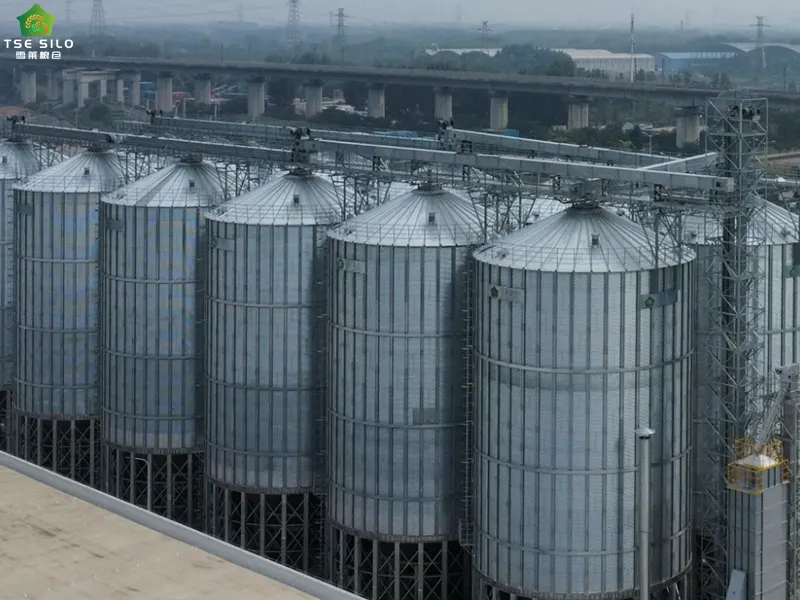

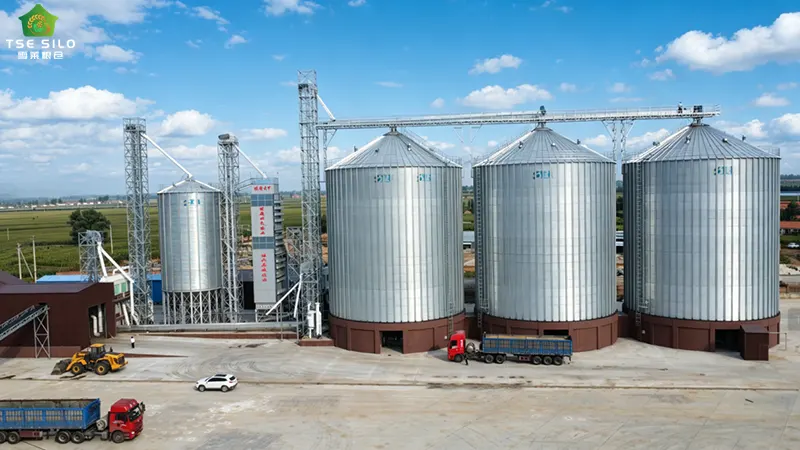

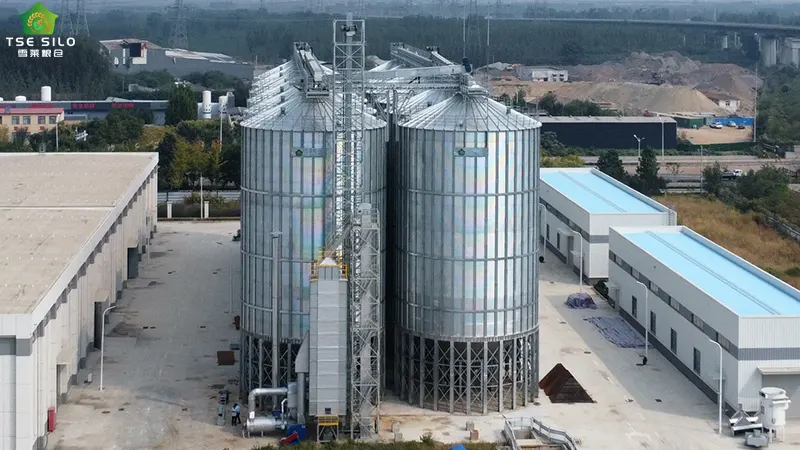

After the equipment for this project was manufactured and completed at the factory, it was transported by logistics to the Jinan project site. Upon arrival, the company dispatched a project manager and installation personnel to the site to carry out unloading, installation, and commissioning. With the cooperation of both parties, the installation of the project was successfully completed. The project received positive feedback from the customer, who spoke highly of the company and the on-site engineers.
Single set of hopper steel silos can reach 2000T,and can be applied in feed mill,flour mill,poultry farm,wine mill,national grain depot,grain trading company,food processing plant etc.Steel silo has supporting equipment, which can be configured according to the requirements of loading, discharge, ventilation, drying, temperature measurement, full measurement and other equipment, to achieve the purpose of safe grain storage. Because the steel plate bin has the advantages of use small area, high degree of mechanization, convenient installation and delivery, easy to realize automation, so the assembled steel plate bin has been widely used.

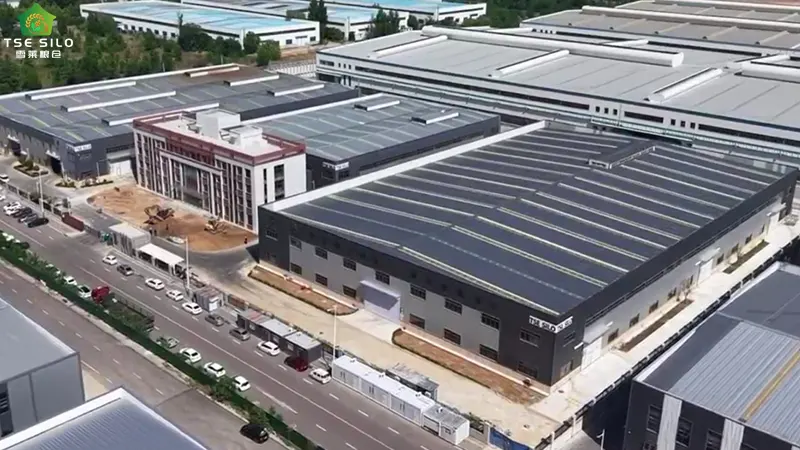

Shandong Shelley Grain Steel Silo Co., Ltd -- TSE SILO, is committed to providing the safest intelligent grain storage solutions for a wide range of custmers. Our services cover the R&D, design, manufacturing, sales, installation, and after-sales service of intelligent steel silos and supporting equipment. We focus on providing the most reliable turnkey projects for grain storage, grain utilization, and grain logistics for various industries including breweries, feed mills, livestock farming enterprises, grain and oil processing companies, soy product processing plants, vinegar and soy sauce breweries, starch and flour processing plants, grain logistics companies, agricultural cooperatives, and national grain depots.
Our company's marketing primarily targets high-end customer groups both domestically and internationally. We focus mainly on customized projects for complete sets of steel silo equipment, which are exported to over 70 countries and regions including the United States, Canada, Australia, New Zealand, Mexico, Russia, Ukraine, Kazakhstan, Thailand, Vietnam, South Africa, India, Pakistan, Bangladesh, Egypt, Honduras, Chile, Peru, Guatemala, Ecuador,Cameroon and Angola. The total constructed storage capacity exceeds 10 million tons.With a sincere business philosophy, excellent product quality, and outstanding after-sales service, we have earned widespread praise from domestic and international customers and established long-term cooperative relationships.
In the future, our company will continue to be driven by technological innovation, integrating IoT, big data, and intelligent control technologies to create a new paradigm of smarter, safer, greener, and more efficient grain storage. We are committed to contributing Chinese wisdom and solutions to global food security and the upgrading of industrial chains.
