2-500T Hopper Steel Silos in Qianjiang City Hubei Province Finished Installation
The project is 2 sets 500T hopper steel silos for sorghum,process flow is bulk sorghum conveyed from dumping pit into bucket elevator,then to the 3 way out electric distributor of silo top,and through the distributor ,grains are transported into different silos.
The steel silo are matched with temperature monitoring system and ventilation system,this can effectively increase the storage time of sorghum.
Specifications of Steel Silos:

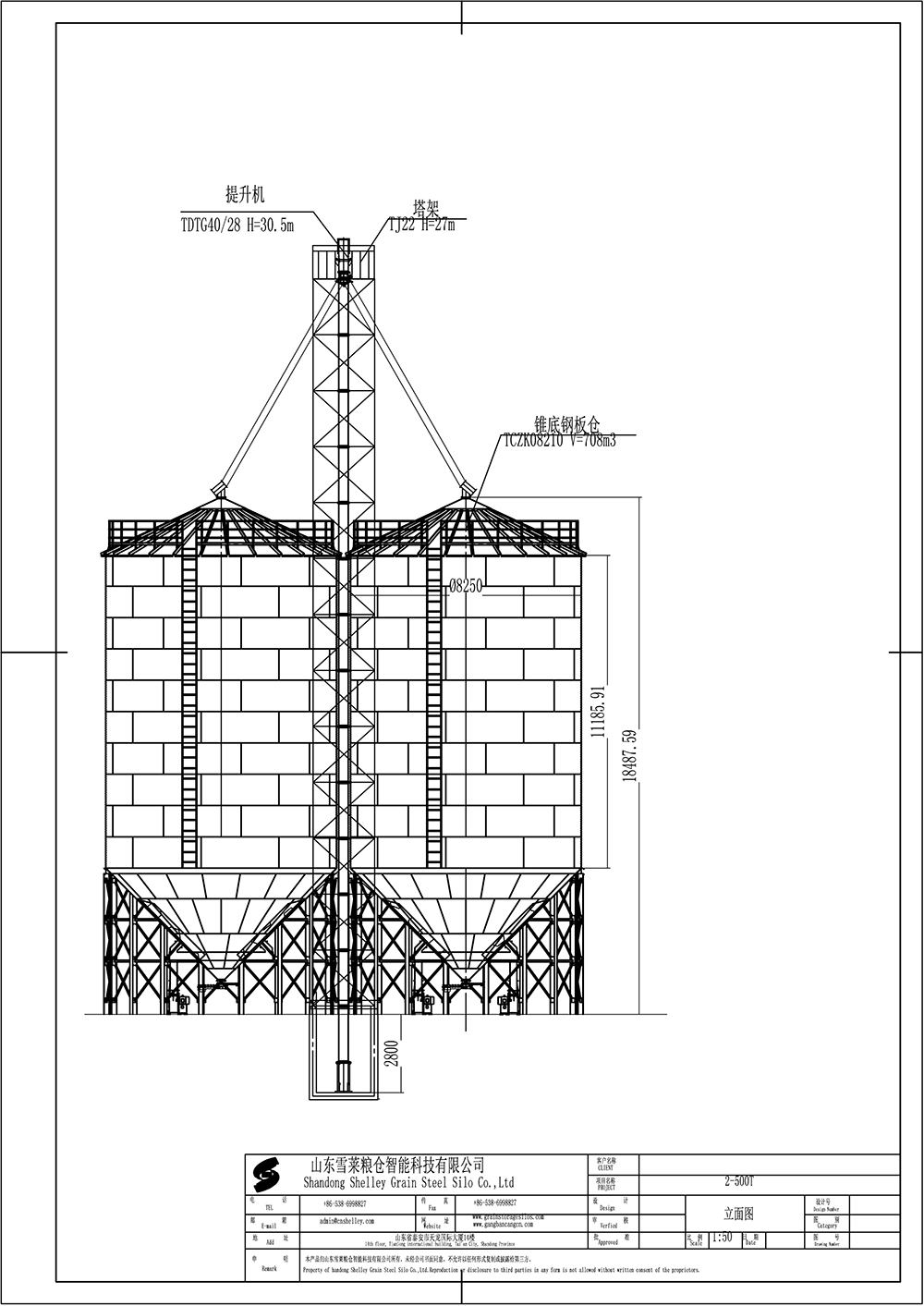

500T hopper steel silo volume:708m3,diameter:8.2m,silo body height: 11.2m,total height:18.48m,silo top angle:25 degree,silo top cover plate is theδ1.0mm thickness high quality domestic hot dip galvanized steel sheets.zinc coated is 275g/㎡.
Silos top are matched with guardrail,manholes,natural ventilation windows,simple climbing ladder,ladder.Silo body include inner and outer ladder,silo door and door platform.Silo hopper includes silo hopper bottom plate,ring beams,stretching and painting columns foot.
Application of steel silos
Steel silos low weight, less consumables, high degree of standardization, arbitrary combination into a variety of users required silo type. The steel silos assembly is simple and fast, all parts of the steel silos are connected by bolts, it is quick installation, short construction period. The steel silo is easy to realize automation and reduce labor cost to the greatest extent. The steel silo has supporting equipment, which can be configured according to the requirements of the loading,unloading, ventilation, temperature measurement and other equipment, to achieve the purpose of safe grain storage. The steel silo is low cost and can be used for more than 30 years.Because of the inherent advantages of steel silo, it is widely used in storage field.
