Operating Principle and Important Role of Cyclone Dust Collectors in Grain Steel Silos

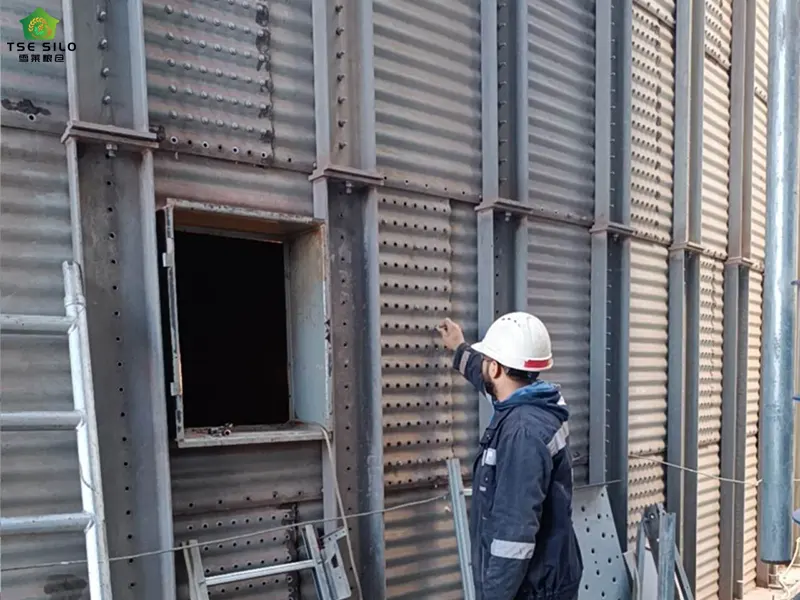

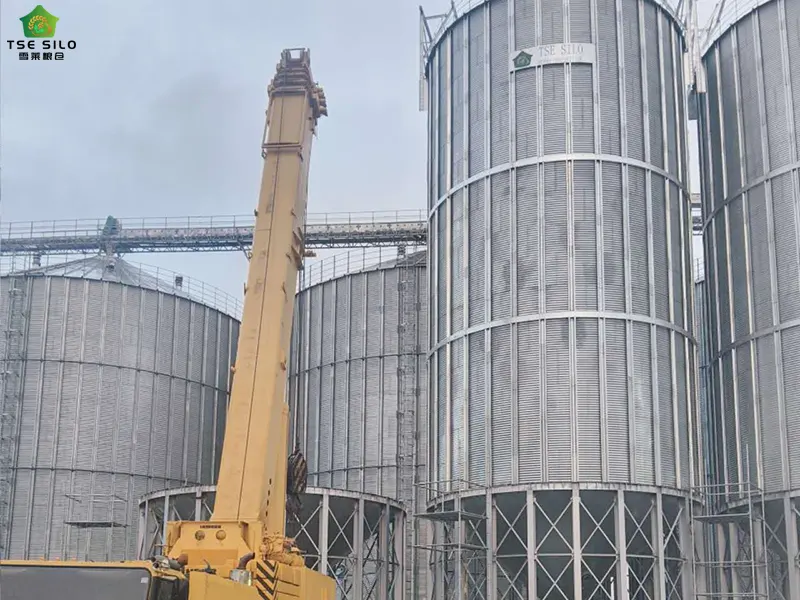

Cyclone dust collectors in grain steel silos are key equipment for ensuring storage safety, environmental protection, and economic benefits. Their operating principle is based on the physical separation process of centrifugal force and gravitational settling. Their main function is to efficiently purify the incoming airflow, ensuring grain quality and system safety. Below, Shelley Machinery will provide a detailed analysis of their working principle, core functions, and precautions.

1. Core Operating Principle of Cyclone Dust Collectors

Cyclone dust collectors are the most commonly used dust purification equipment in grain silo inlet/outlet, drying, and conveying systems. Their principle is based on "coordinated separation by centrifugal force and gravity," and the core process can be divided into four key steps:

1.1. Airflow Introduction and Rotation Acceleration

• Dust-laden airflow (mainly from dust flying during grain unloading and dust carried by the hot airflow after drying) enters the dust collector cylinder through the tangential air inlet at a speed of 12-25 m/s. Due to the angle design between the air inlet and the tangent of the cylinder (typically 30-45°), the airflow forms a strong swirling motion within the cylinder (rotational angular velocity can reach 1000-3000 rad/s), causing dust particles to move in a circular motion with the airflow.

1.2. Centrifugal Force Separation of Dust

• According to the centrifugal force formula \( F = m\omega^2r \) (where m is the dust mass, ω is the rotational angular velocity, and r is the radius of rotation), dust particles (with a density much greater than air, the density of grain dust is approximately 1.2-1.5 g/cm³) generate a centrifugal force far exceeding gravity (typically 50-1000 times the force of gravity) in the swirling flow, and are thrown towards the cylinder wall.
• Fine dust (5-10μm): Separation is achieved through high rotational speed (≥18m/s).
• Coarse dust (≥10μm): Separation can be achieved through centrifugal force sedimentation at medium to low speeds (12-15m/s), with a separation efficiency of over 90%.

1.3. Dust Collection and Discharge

• Dust particles thrown against the wall are drawn down into the bottom ash hopper (equipped with a rotary valve or screw conveyor) by gravity and the downward force of the airflow along the wall, preventing secondary dust re-entrainment. The ash hopper must be kept sealed to prevent backflow of air and disruption of the vortex field.

1.4. Purified Airflow Discharge

• The purified airflow after dust separation forms an upward internal vortex at the center of the cylinder and is discharged through the exhaust pipe at the top (insertion-type design to avoid airflow short-circuiting). It can be directly discharged (when standards are met) or connected to a subsequent bag filter (for fine dust). The following is a key structural and operational principle compatibility analysis.

2. Important Role in Grain Steel Silo Systems

The dust in grain steel silos (wheat flour, corn flour, rice husk powder, etc.) is combustible dust (explosion limits typically 20-60g/m³), and the resulting dust pollution can lead to environmental violations and equipment wear. Cyclone dust collectors play a crucial role throughout the entire "storage-transportation-processing" process, providing a three-in-one function of safety, environmental protection, and equipment protection.

2.1. Ensuring Production Safety (Core Role)

• Preventing Dust Explosions: When the concentration of grain dust in confined spaces (steel silos, conveying pipelines) exceeds the standard, it is prone to explosion upon encountering static electricity or mechanical sparks. Cyclone dust collectors can quickly reduce the dust concentration in the airflow (from 100-500 g/m³ to 10-30 g/m³), below the explosion limit. Simultaneously, the sealed ash hopper design prevents dust leakage and the formation of a flammable environment.
• Eliminating Fire Hazards: Dust accumulation on equipment surfaces (such as fans and motors) can easily lead to spontaneous combustion due to poor heat dissipation. Dust collectors can reduce dust adhesion.

2.2. Meeting Environmental Emission Requirements

• Achieving Standard Emissions: According to the "Integrated Emission Standard for Air Pollutants" (GB 16297-1996), the dust emission concentration of grain processing enterprises must be ≤120 mg/m³ (existing enterprises) and ≤30 mg/m³ (newly built enterprises). Cyclone dust collectors achieve a separation efficiency of 85%-95% for dust particles ≥5μm, directly meeting basic emission standards. When combined with baghouse dust collectors, emission concentrations can be reduced to below 10mg/m³.
• Preventing Dust Pollution: Prevents grain dust from spreading to the surrounding factory area, protecting soil, crops, and the surrounding environment.

2.3. Equipment Protection and Energy Consumption Reduction

• Reducing Equipment Wear: Hard dust particles (such as rice husks and corn germ) in dusty airflows can wear down fan impellers and the inner walls of conveying pipes. Cyclone dust collectors can intercept over 90% of coarse dust particles in advance, extending the service life of fans and pipes (typically by 30%-50%).
• Reducing Fan Energy Consumption: The purified airflow has lower resistance, and the fan does not need to overcome the pressure drop caused by dust, saving 10%-15% of electricity consumption.

2.4. Improving Grain Storage Quality

• Preventing Dust Contamination of Grain: Separated dust (containing impurities and microorganisms) will not flow back into the steel silo, preventing grain contamination, clumping, or mold growth.
• Maintaining Silo Ventilation Efficiency: If the dust collector is linked to the silo roof ventilation system, it ensures clean airflow, prevents dust blockage of ventilation ducts, and ensures dry and well-ventilated grain inside the silo.

2.5. Improving the Working Environment and Occupational Health

• Reducing Workshop Dust Concentration: Long-term inhalation of grain dust can cause pneumoconiosis. Cyclone dust collectors can control the dust concentration in the work area to ≤4mg/m³ (complying to GBZ 2.1-2019, "Occupational Exposure Limits for Hazardous Factors in the Workplace"), protecting the health of operators.

3. Considerations in the Design and Selection Stage

3.1. Precisely Matching Airflow with Material Characteristics

• Airflow Calculation: Accurately calculate the required airflow based on the conveying capacity, duct length, and lifting height to avoid the dust collector being underutilized (inefficient) or overutilized (increased resistance, high energy consumption, and rapid wear). Typically, a 10%-15% design margin should be allowed for the air volume handled.
• Grain type suitability: Different grains have different dust characteristics. Corn and wheat dust are relatively heavy, so standard high-efficiency models can be selected; for light, sticky dust such as rice flour and feed, it is necessary to consider reducing the inlet air velocity or selecting an anti-sticking design to prevent it from adhering to the cone wall.

3.2. Rational determination of model and combination method

• Single unit efficiency understanding: It is clear that cyclone dust collectors mainly handle coarse particles larger than 10μm, and their efficiency is limited for respirable fine dust (< 5μm). The grain industry usually requires a total dust removal efficiency of over 99%, so it should never be used alone.
• System design: A two-stage or multi-stage combination process of "cyclone dust collector + bag filter" must be adopted. The cyclone acts as the primary pre-dust removal stage, removing most of the coarse dust, reducing the load on the bag filter, and preventing sparks; the bag filter acts as the secondary fine dust removal stage, ensuring that emissions meet standards. This is industry best practice and a safety red line.

3.3. Key Parameter Verification

• Inlet air velocity: The optimal range is typically 14-18 m/s. Too low a velocity results in insufficient centrifugal force and low separation efficiency; too high a velocity increases resistance exponentially and may break grains, producing more fine dust and exacerbating wear.
• Resistance (pressure drop): The rated pressure drop (generally 800-1500 Pa) should be clearly defined during the design phase and used as a benchmark value for subsequent operational monitoring.
• Material selection: Parts in contact with grain dust should be made of wear-resistant carbon steel or galvanized sheet. The conical part can be thickened or lined with a wear-resistant layer.

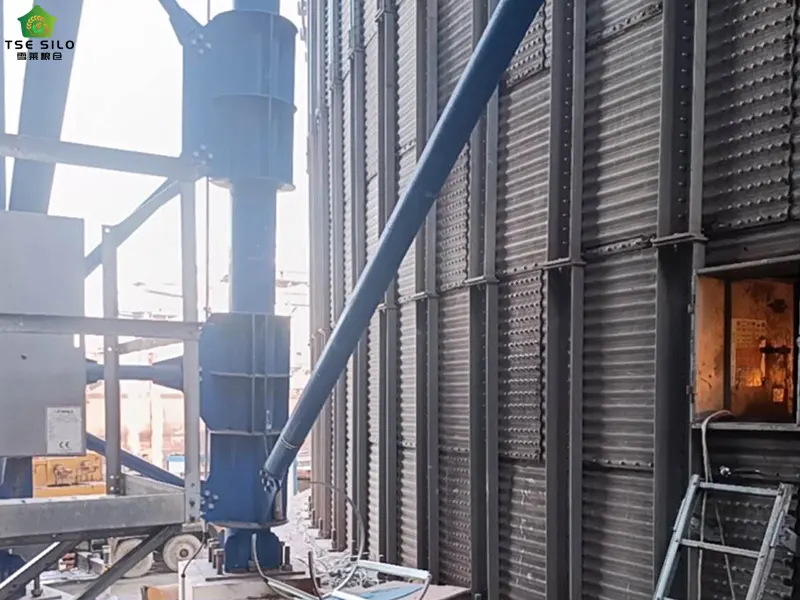

4. Installation and Commissioning Precautions

4.1. Ensure airtightness

• Welding and flange connections: All welds and flange connections must be continuously and fully welded or sealed with gaskets to ensure a tight seal. Air leakage is the primary cause of reduced dust collector efficiency, especially in negative pressure systems, where leaked air disrupts the internal flow field.
• Ash discharge device sealing: The bottom airlock is crucial! A model with excellent sealing performance must be selected, and its continuous and stable operation must be ensured. Directly opening the gate valve for ash discharge is prohibited, as this will cause significant air leakage, resulting in the separated dust being re-entrained and reducing dust removal efficiency to almost zero.

4.2. Standardize Piping Connections

• Inlet Pipe: The air should enter the dust collector horizontally or at a downward angle to avoid upward tilting, which could cause premature dust settling and blockage.
• Installation Verticality: The dust collector body should be installed vertically. Excessive deviation will lead to uneven internal airflow distribution, affecting efficiency and accelerating localized wear.

4.3. Set Up Necessary Safety and Monitoring Interfaces

• Inspection and Dust Cleaning Ports: Quick-opening inspection doors should be installed at locations prone to dust accumulation on the cylinder and on the cone for easy inspection and cleaning.
• Pressure Measurement Holes: Differential pressure measurement holes should be reserved on the inlet and outlet pipes for connecting U-tube manometers or differential pressure sensors for daily operational monitoring.

5. Operation and Maintenance Precautions

5.1. Core Principle: Adhere to "Regular Inspection and Timely Dust Removal"

• Dust Removal System: A strict regular dust removal system must be established. Depending on the workload, the dust collection hopper should be cleaned every shift or daily. Dust accumulation in the hopper should not exceed 2/3 of its capacity; otherwise, the accumulated dust will block the discharge port and may even be carried away by the rising airflow.
• Inspection Points: Listen (to check if the shut-off valve is operating normally), look (to check if the differential pressure gauge reading is within the normal range), and touch (for abnormal wear or air leaks in the casing).

5.2. Key Parameter Monitoring: System Differential Pressure

• Increased differential pressure: This usually indicates excessive internal dust accumulation, poor dust removal, or foreign object blockage at the inlet. The dust removal system and inlet pipes must be checked immediately.
• Abnormally decreased differential pressure: This may be due to damage to the inlet pipe, severe air leakage in the shut-off valve, or accidental opening of the valve at the front end of the bag filter, causing a short circuit in the airflow. Immediate investigation is required; otherwise, the system will be in an unprotected state.

5.3. Safety Red Line Operation

• Strictly Prohibited: During equipment operation, never strike the casing or pipes with iron tools to prevent mechanical sparks.
• Hot Work Management: When hot work is required for maintenance, all accumulated dust inside and outside the equipment must be thoroughly cleaned, a hot work permit obtained, and a designated person must supervise the operation.
• Anti-static: Ensure the dust collector body is reliably grounded, with a grounding resistance ≤10Ω.

5.4. Seasonal and Special Operation Precautions

• High Humidity Weather: In high humidity, dust is prone to deliquescence and adhesion. The dust cleaning cycle should be shortened, and if necessary, thorough manual cleaning should be performed after shutdown to prevent caking and blockage.
• When Changing Grain Type: When cleaning the conveying system, the dust collection system (including the ash hopper and any possible material adhering to the inner walls) must be thoroughly cleaned simultaneously to prevent cross-contamination.
• Long-Term Shutdown: Before shutdown, the system should be run idle for a period of time to remove all accumulated dust. For long-term shutdowns, all inlet and outlet valves should be closed to prevent moisture intrusion.

6. Key Supplements (Selection and Application Considerations)

• 6.1. Suitable Scenarios: Cyclone dust collectors are more suitable for handling large flow rates of coarse to medium-sized dust particles (typically handling 500-10000 m³/h). For handling fine dust (≤5μm), it needs to be used in series with a bag filter.
• 6.2. Factors Affecting Efficiency: Inlet air velocity (optimal 15-20 m/s), cylinder diameter (smaller diameter results in greater centrifugal force and higher efficiency, but also greater resistance), dust humidity (humidity >15% easily leads to condensation and blockage, requiring insulation or heating devices).
• 6.3. Core Maintenance: Regularly clean the ash hopper (to prevent dust accumulation from disrupting the cyclone field), check for dust accumulation at the air inlet (affecting airflow rotation speed), and replace worn unloading device seals (to prevent air leakage).

In summary, cyclone dust collectors are the core dust control equipment in grain steel silo systems, characterized by "low cost and high reliability." Their operational stability directly impacts production safety, environmental compliance, and the long-term operation of the equipment, making them an indispensable and crucial supporting facility in the grain storage and processing process. We hope this information will be helpful when operating grain steel silos in the future.
