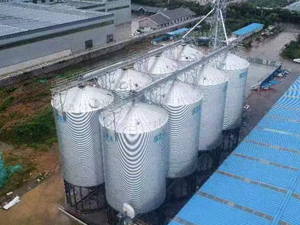

this is a hopper bottom steel silo project for paddy rice storage.
according to site situation,tczk10014 is used for our client.
we also equipped with cleaning system in this project,including pre-cleaner,vibrating cleaner and magnetic drum.

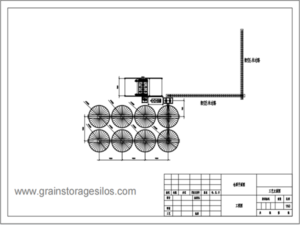

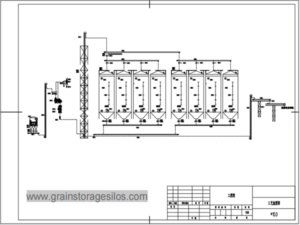

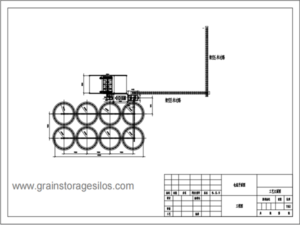

8x1000t galvanized grain silo specification in this system
model:tczk10014
diameter:10m
volume:1449m3
eave height:21.59m
total height:24.09m
hopper bottom silo rings:14 rings
silo bottom angle:45°
zinc coated:275g/m2

pre-cleaner specification
model:tqly125/520
capacity for paddy:65-110t/hour
cleaning up large impurity rate:80%
cleaning up small impurity rate:40%
power:7.5kw
circulating air:7000m3/hour

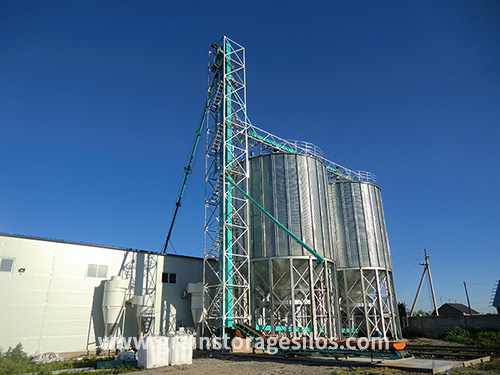

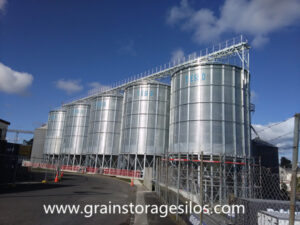

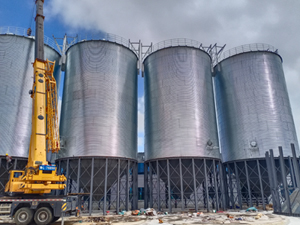

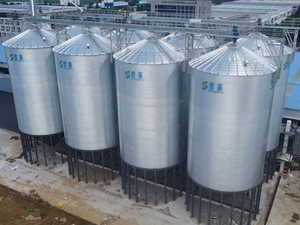

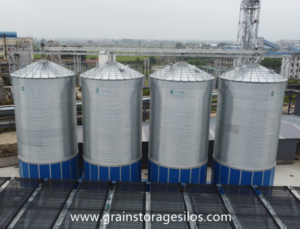

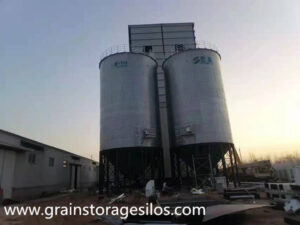

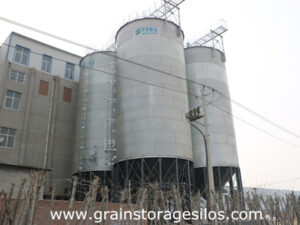

hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are?the steel silos with a cone bottom. hopper bottom silos are erected on the supporting structure to make the delicate products unloading easily through gravity. hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. the stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.

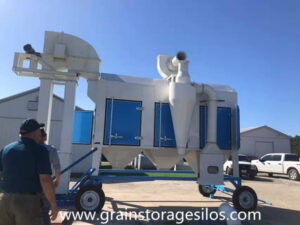

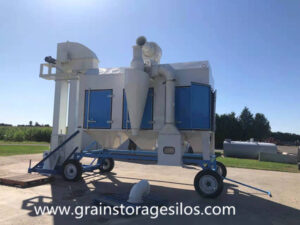

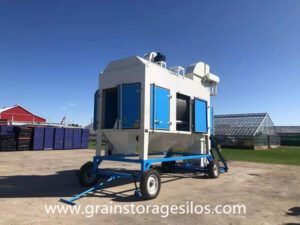

grain cleaning machine?(also called grain pre cleaner) is the important?grain cleaners, it is designed and manufactured by shelley engineering for?simple, fast removal of light and heavy (rubble) impurities from?grain, corn, soybeans, wheat, rice or fuel whose particles sizes and weighs are?different than impurity particle, all the grain and the impunity dust are inputed into the rotating screen cylinder,the inner mesh and the out mesh have different diameters, the grains are isolated and flow out through different exit from the dusts in the?continuous screening process. ?the grain cleaner can also be used for screening soybean meal, soybean meal blocking the bulk through continuous rotation, making the soybean meal block decreasing in monocular state.this kind of grain cleaning equipment?reduces the emission of dust into the atmosphere.

taian shelley engineering co., ltd. (?subsidiary company named taian shelley grain silo co., ltd)??is the leading steel silos designer, manufacturer and exporter dedicated in supplying turn-key grain storage solutions?to worldwide customers. ?we had gained advantages in steel bins research and development, product design, manufacturing, site installation and services since the foundation by shelley jin in 2007.
product innovation, quality assurance and customer satisfaction are our long term commitment to our partners. we have been kept on investing in technological innovation and product optimization with our more than 30 talented experts. cooperated with domestic famous universities like shandong university and shandong university of science & technology in grain storage control system, grain silo structure design and handling system optimization, we had obtained more than 10 patents, and become the leading grain silo brand in china.
