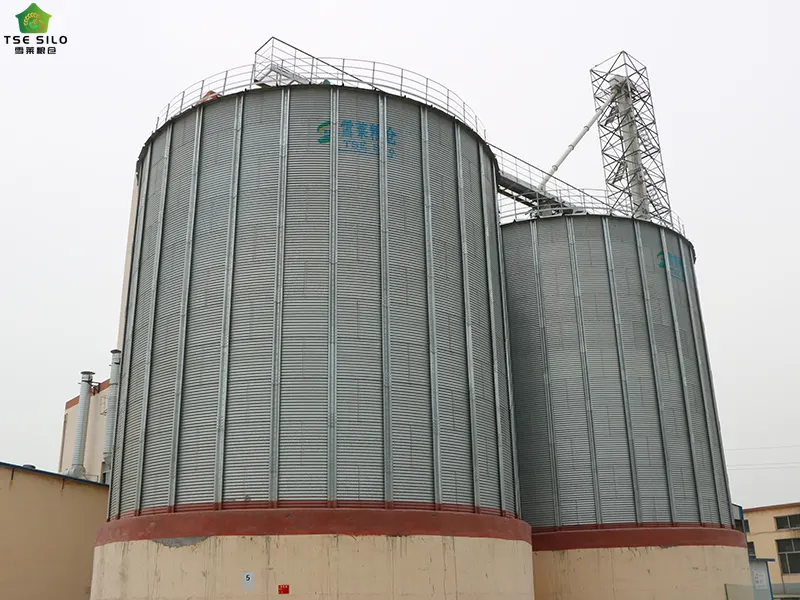

The key impact of large steel silo structure design on grain shelf life

Large steel silos, as core facilities for large-scale grain storage, have a structural design that directly determines the grain's storage microenvironment (temperature, humidity, ventilation, airtightness, and stress conditions). These microenvironments are key factors influencing grain respiration, microbial activity, and pest growth, ultimately profoundly impacting grain shelf life. The following analyzes the key impacts of large steel silo structures, sealing and ventilation systems, silo wall and floor design, and supporting functional structures on grain shelf life:

1. Silo Structure: Determining the "Basic Environmental Stability" of Grain Storage

1.1. Mainstream Steel Silo Structures

Steel silos of different structural types exhibit significant differences in grain pile stress uniformity, temperature and humidity distribution, and material flowability, directly impacting the physical properties and risk of spoilage. A comparison of mainstream structural forms is as follows:

1.2. Structural Strength and Durability: Preventing Physical Damage

The structural integrity of the silo is the prerequisite for ensuring all functions.

• Impact Mechanisms:
  • Deformation and Cracks: If the structural strength is insufficient, the silo walls may deform under the immense lateral pressure and external loads of the grain pile, damaging airtight welds and even causing cracks, leading to rain and air leaks.
  • Corrosion: The grain itself and its environment can be corrosive. Corrosion can weaken the structure and damage the airtight layer.
• Key Structural Design Issues:
  • Load Calculation: Accurately calculate lateral pressure on the grain, wind loads, snow loads, and seismic loads, and select steel plates and profiles of sufficient thickness and strength.
  • Anti-Corrosion Design: Based on the environment and usage requirements, select the appropriate steel plate coating (such as the weight of the galvanizing layer) and external coating system to ensure the long-term durability of the silo.
• Conclusion: A strong and durable structure is the physical foundation for maintaining airtightness, thermal insulation, and the proper functioning of all systems. Failure of the structure directly compromises the grain storage environment.

2. Sealing and Ventilation Systems: Regulating "Grain Pile Respiration and Microbial Activity"

The core causes of grain deterioration are heat and water production during respiration (resulting in elevated grain temperatures and excessive moisture content) and microbial growth (such as mold breaking down starch and producing toxins). Sealing and ventilation systems are key structures for controlling these two processes.

2.1. Sealing System: Blocking External Temperature and Humidity Intrusion and Pest Entry

2.1.1. Three Key Sealing Locations in the Silo

• Roof Sealing: The roof is a primary entry point for rainwater, dew, and hot air. Using a composite structure of "color-coated steel plate + insulation layer + waterproof membrane," and sealing joints (such as vents and access openings) with silicone sealant, can effectively prevent rainwater from leaking (preventing localized grain moisture absorption and clumping) and high-temperature air from entering during the summer (reducing condensation caused by temperature differences in the grain pile).
  A negative example: If the roof seal fails, rainwater seeping into the top of the grain pile can cause the moisture content at the top of the grain to rise from 13% (the safe moisture content) to over 18%, potentially breeding mold (such as aflatoxin) within 3-5 days, shortening the shelf life by 80%.
• Silo Wall Sealing: For prefabricated silo joints, double seal with EPDM rubber strips and sealant. For Lipu silo hem seams, regular inspections are required for tightness to prevent gaps caused by wall deformation. Good silo wall sealing can prevent the intrusion of external moisture (such as air humidity exceeding 90% during the rainy season), maintain a stable relative humidity within the silo at 65%-75% (the safe range for grain storage), and reduce moisture absorption by the grain pile.
• Silo floor sealing: The silo floor is in contact with the ground and is susceptible to rising moisture from underground. A "polyethylene moisture-proof membrane + concrete waterproofing layer" design can block underground moisture and prevent excessive moisture buildup in the grain floor. (For example, wheat stored on a damp foundation can experience a 0.5% weekly moisture increase, reaching critical deterioration levels within a month.)

2.1.2. Sealing Performance Design Basis and Key Technologies

• Mechanism of Impact: High airtightness effectively blocks the ingress of external air and moisture, thereby:
  • Inhibiting insect and mold growth: Most pests and molds require oxygen to survive and reproduce. A low-oxygen environment (usually achieved through controlled atmosphere technology) can effectively kill or inhibit them.
  • Delaying quality deterioration: Chemical changes in grain, such as fat oxidation, vitamin loss, and increased acidity, require oxygen. A low-oxygen environment can significantly slow this process, preserving the freshness and nutritional value of grain.
  • Laying the foundation for controlled atmosphere storage: Only when the silo's airtightness meets extremely high standards (typically requiring a half-life of at least 5 minutes at 500 Pa) can controlled atmosphere storage, such as nitrogen or carbon dioxide, be effectively implemented. This is currently the most advanced technology for achieving long-term shelf life (over 2-3 years).
• Key structural design factors:
  • Jointing process: The steel plate joints of the silo wall are joined using high-strength, specialized equipment to ensure tight joints.
  • Sealing materials: All welds, bolt holes, and door and window joints are treated with high-performance, specialized sealing materials (such as silicone or polysulfide sealants).
  • Integrated foundation design: The connection between the silo and the concrete foundation is the weak link in airtightness, requiring the use of pre-buried airtight structures and specialized sealing techniques.
• Conclusion: Without airtightness, all advanced storage technologies are out of the question. It is a prerequisite for the long-term and safe storage of grain.

2.2. Ventilation System: Removes Heat and Humidity from the Grain Pile, Preventing Deterioration

The core function of the ventilation system is to remove heat (heat produced by respiration) and moisture (water produced by respiration) from the grain pile through forced ventilation, maintaining a low temperature and low humidity in the grain pile. This serves as an active control method for extending shelf life. Key structural design elements include:

2.2.1. Main Structural Design of the Ventilation System

• Ventilation Duct Layout:
  • Small-scale silos (diameter ≤ 15m): Utilize "floor trough" ventilation ducts (radiating from the center of the silo floor), which can cover over 70% of the grain pile volume.
  • Large-scale silos (diameter > 20m): Utilize a combined "floor trough + circulation ventilation" system (floor troughs provide bottom ventilation, while circulation ducts provide middle/upper ventilation). This avoids "dead corners" in the upper grain pile. Without ventilation in the upper layers, grain temperatures can reach over 30°C in summer, resulting in a respiration rate three times higher than at low temperatures, shortening shelf life by 50%.
• Fan Selection: Choose a fan with the right air volume based on the grain pile volume and grain type (e.g., wheat is more air-permeable than corn). (Generally, ventilation volume ≥ 5 m³/(h·t) is required.) Insufficient fan volume results in low ventilation efficiency, preventing timely removal of heat and moisture from the grain pile, causing grain temperature to rise instead of fall, accelerating deterioration.
• Vent Sealing: Vents are weak points during non-ventilation periods. Designed with a "rain cap" and manual/electrically sealed door, they prevent air leakage (causing temperature and humidity fluctuations within the silo) and insect intrusion. (For example, corn weevils can enter the grain pile through vents and reproduce rapidly, with a population density of up to 5 per kilogram within a month. This can cause grain infestation and shorten shelf life by 60%.)

2.2.2 Ventilation System Design Mechanism and Key Elements

• Influencing Mechanism:
  • Temperature Stratification and Convection: Fluctuations in external temperature or heat generated by the grain itself can cause hot air to rise within the silo, where it cools and forms condensation on the silo roof. This condensation drips, soaking the grain surface and causing severe mold.
  • Heat and moisture diffusion: Uneven temperatures can cause moisture to migrate from high-temperature areas to low-temperature areas, where it accumulates and causes localized moisture levels to exceed the specified limit.
• Key structural design issues:
  • Insulation: Adding insulation layers (such as polyurethane foam) to the silo roof and walls is standard in modern steel silos. This effectively reduces the impact of external temperature fluctuations on the grain within and prevents condensation.
  • Ventilation system design: Proper ventilation duct layout and fan selection are crucial. The structural design should reserve space and interfaces for above- and below-ground ventilation ducts to ensure uniform airflow through the grain pile, reducing temperature, moisture, and removing accumulated heat.
  • Temperature measurement system layout: The structural design should pre-plan the routing and mounting methods for temperature measurement cables to ensure that sensors are evenly distributed across all potential risk areas within the grain pile (center, perimeter, upper levels, etc.) for real-time monitoring of grain conditions.
• Conclusion: Effective temperature and humidity control design can effectively eliminate "temperature and humidity hazards" in grain storage, providing a stable and safe storage environment for grain.

3. Silo Wall and Floor Design: Preventing Physical Damage and Localized Deterioration of Grain

During storage, if grain is physically damaged (e.g., broken) or subjected to uneven localized stress (e.g., compaction) due to structural problems with the silo walls and floor, its resistance to deterioration will be significantly reduced (broken grain has a respiration rate 2-3 times higher than intact grain, making it more susceptible to microbial growth).

3.1. Silo Wall Design: Controlling Lateral Pressure on the Grain Pile to Prevent Grain Destruction

• Silo Wall Strength: The lateral pressure exerted by the grain pile on the silo wall increases with height (the lateral pressure increases by approximately 1.5 kPa for every 1 meter increase in height). Insufficient silo wall thickness (e.g., corrugated steel plate thickness < 3 mm) or the lack of circumferential reinforcement can cause bulging and deformation of the silo wall, squeezing the grain pile and causing grain breakage (e.g., corn breakage rate increases from 2% to over 8%). Broken grains are highly hygroscopic and easily exploited by microorganisms, accelerating deterioration of the entire grain silo (e.g., the mold rate of broken corn stored for three months can reach 15%, while that of intact corn is only 3%).
• Silo Wall Smoothness: Protrusions (such as untreated bolt heads) or burrs on the inside of the silo wall will scrape grains during loading and unloading, increasing breakage. Therefore, the inside of the silo wall should be polished, or a boltless connection method (such as a welded silo) should be used to minimize grain damage.

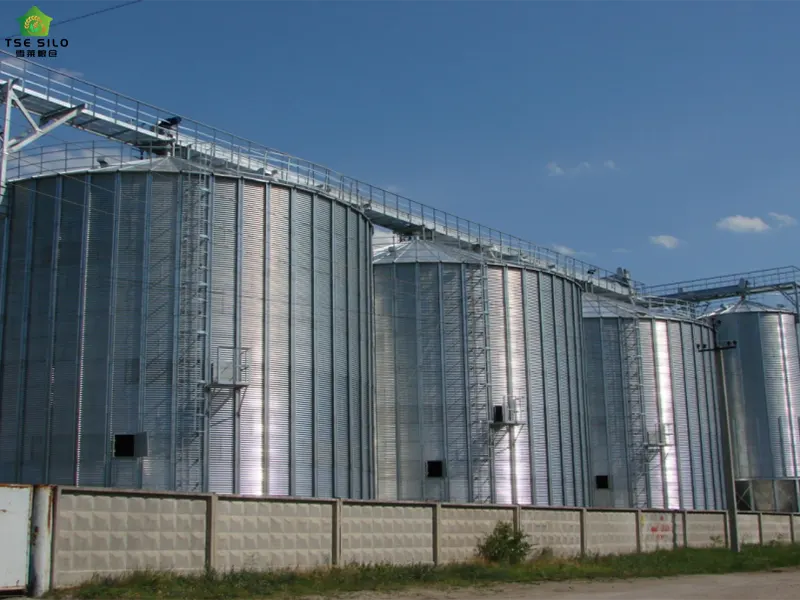

  3.2. Floor Design: Preventing Grain Accumulation and Impurity Accumulation

  • Floor Slope: The floor should be designed with a 0.5%-1% slope. This not only facilitates grain flow during unloading (minimizing damage to grains caused by mechanical conveying), but also prevents grain accumulation in low-lying areas of the floor. This accumulation increases grain density, hinders ventilation, and creates "dead zones" where grain temperatures can rise 5-8°C above normal, shortening shelf life by 40%.
  • Bottom plate bearing capacity: The bottom plate must be designed with sufficient concrete strength (typically ≥ C30) based on the height of the grain pile (e.g., for a 30m high silo, the bulk density of the grain pile is calculated as 750kg/m³, and the bottom plate bearing pressure is approximately 22.5kPa) to prevent cracking in the bottom plate. Cracking can allow impurities and moisture to enter, causing localized grain spoilage.

  4. Supporting Functional Structures: Addressing "Special Storage Risks"

  In addition to the core structure, some supporting structures also directly affect the shelf life of grain, primarily including:

  4.1. Temperature and Humidity Measurement System: Real-time Monitoring of "Grain Pile Status"

  If "distributed temperature measurement cables" (with a temperature measurement point every 3-5m) and "humidity sensors" are installed within the silo, real-time monitoring of temperature and moisture changes within the grain pile can be achieved. (For example, a sudden increase in grain temperature by 2°C/day or a moisture increase by 0.5%/day is a warning sign of grain spoilage.) This allows for timely ventilation or emptying of the grain pile to prevent large-scale spoilage. Reference Data: Steel silos equipped with temperature measurement systems can reduce grain spoilage by 70% and extend shelf life by an average of 3-6 months.

  4.2. Circulation Fumigation System: Suppressing Pests

  Pests (such as the corn weevil and red flour beetle) directly infest grain, and their excrement increases moisture in the grain pile, accelerating microbial growth. A circulation fumigation system (which evenly distributes fumigant throughout the grain pile via pipes) can effectively kill pests within the silo (with a kill rate of ≥95%), thus preventing the shortening of shelf life caused by pests. In severe cases, the shelf life of grain can be reduced from 12 months to 3 months.

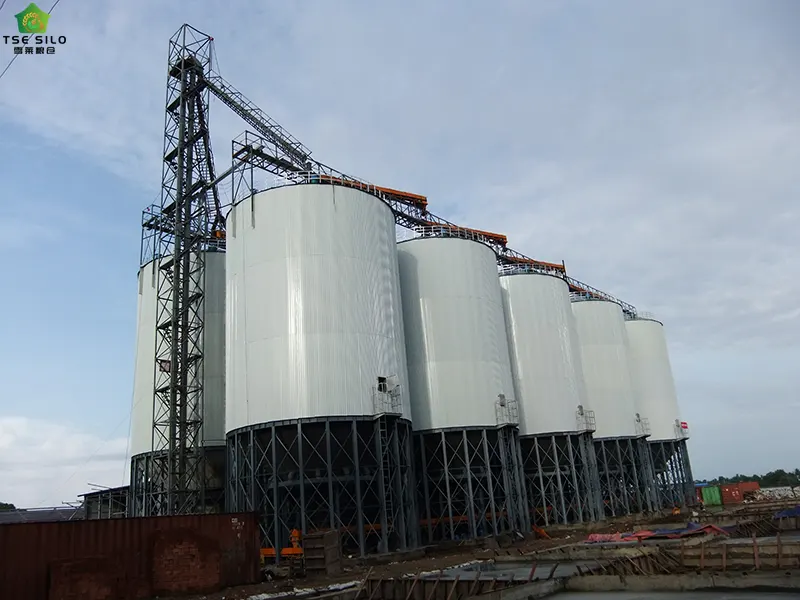

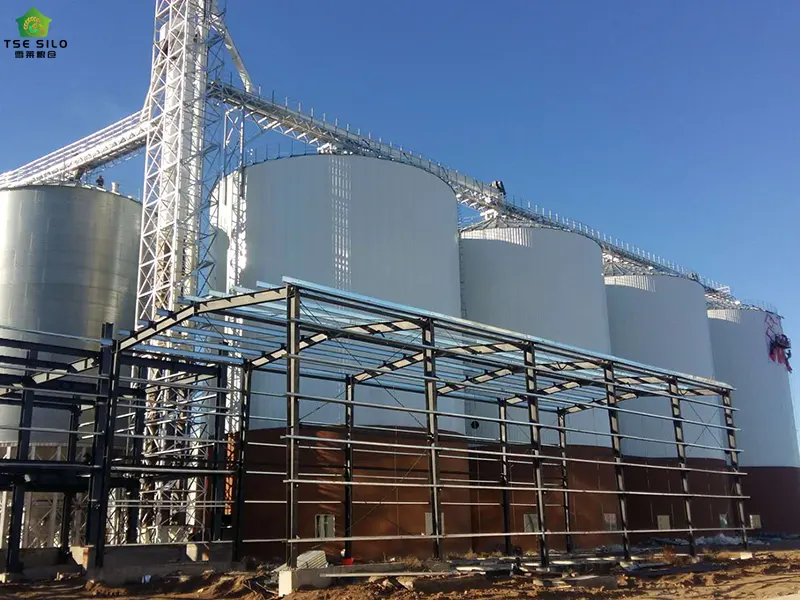

  4.3. Insulation Design: Buffering Against External Temperature Fluctuations

  In temperate and cold regions, low winter temperatures (below -10°C) can cause grain to freeze (impeding its removal from the silo), while high summer temperatures (above 35°C) accelerate respiration. Adding a polyurethane insulation layer (thickness ≥ 100mm) to the silo walls and roof can control temperature fluctuations within ±3°C (in silos without insulation, temperatures can reach over 40°C in summer). This maintains a low temperature for the grain pile (when the grain temperature is ≤20°C, the respiration rate is only half that of 30°C), significantly extending its shelf life.

  Summary: The "Quantitative Impact" of Structural Design on Grain Shelf Life

  By optimizing the above structural design, the shelf life of grain stored in large steel silos can be significantly improved:

  • Common wheat (safety moisture content 13%): Without optimized silo design, the shelf life is approximately 6-8 months; with optimized sealing, ventilation, and insulation, the shelf life can be extended to 12-18 months;
  • Corn (safety moisture content 14%): Without optimized silo design, the shelf life is approximately 4-6 months; with silos equipped with a circulating fumigation and temperature measurement system, the shelf life can be extended to 8-12 months;
  • High-value grains (such as oats and buckwheat): With welded sealed silos and low-temperature ventilation, the shelf life can be extended from 8 months to over 24 months.

  In summary, the structural design of large steel silo isn't simply a matter of "load-bearing safety." Rather, it involves precisely controlling the "storage microenvironment" to prevent factors that cause grain spoilage, a key factor in determining grain shelf life. Therefore, when planning and constructing large steel silos, grain storage process requirements must be prioritized and deeply integrated with the structural design. Selecting an experienced design firm and equipment supplier who understands not only building structures but also grain storage processes is crucial for ensuring long-term grain safety and quality, minimizing losses, and generating economic benefits.
