Application and optimization of intelligent material level system in large steel silo

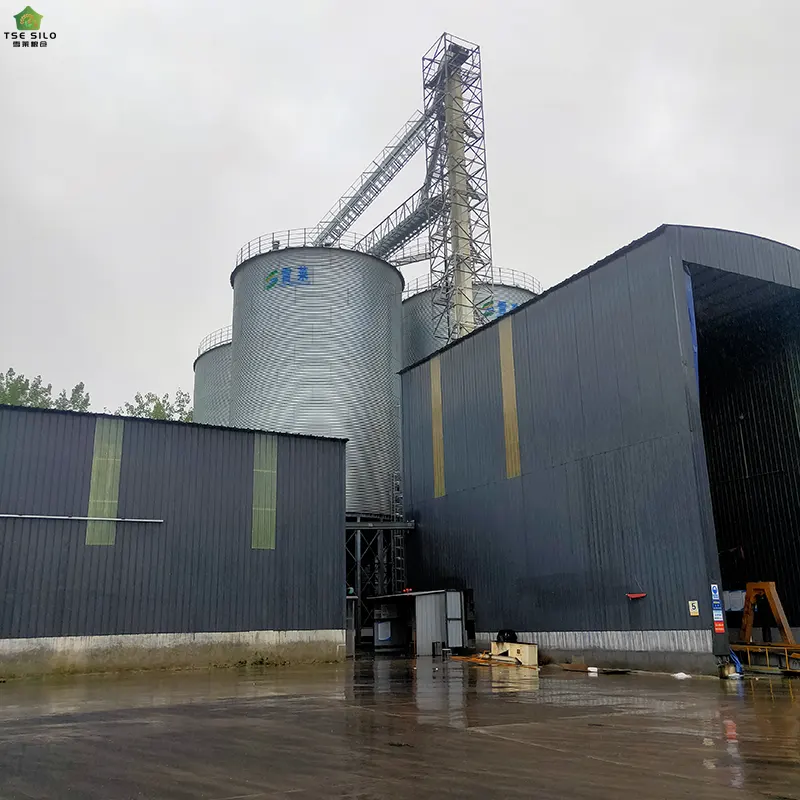

Large steel silos, with their large capacity (a single silo can hold thousands to tens of thousands of cubic meters), short construction cycles, and low costs, are widely used in grain storage, building materials (cement, fly ash), energy (coal, ore), and chemical industries. Material level, a core parameter in steel silo operations, is directly related to accurate inventory management, safe equipment operation, and improved production efficiency. Traditional manual measurement (such as probes and measuring ropes) or single mechanical instruments suffer from low accuracy, slow response, and significant safety hazards (such as high-altitude operations and dust hazards). Intelligent material level systems, integrating multiple technologies—sensors, data transmission, intelligent control, and software platforms—completely address these pain points and become the core support for modern large steel silo management.

I. Key Technologies and Application Scenarios of Intelligent Level Systems

An intelligent level system is not a single device, but rather a closed-loop system encompassing "sensing-transmission-analysis-control." Its application must be integrated with the material characteristics (such as dust, viscosity, and fluidity) and operational requirements (such as storage and coordinated loading and unloading) of large steel silos. Specifically, it can be categorized into the following dimensions:

1. Key Technologies of Intelligent Level Systems

1.1 Main Technical Principles

1.2 Core Features of Intelligent Systems:

• Data Fusion: Data from different sensors are combined to leverage their strengths and weaknesses to produce more reliable level information. For example, radar can be used for continuous monitoring, while a weight can be used for regular calibration and fault diagnosis.
• Digital communication: Supports HART, Profibus-PA, FF and other fieldbuses or 4-20mA+Modbus standards, making it easy to integrate into the upper-level system.
• Self-diagnosis and early warning: With the device self-diagnosis function, it can provide early warning of problems such as probe contamination and line failure.
• Cloud data analysis platform: Data is uploaded to the cloud platform, and big data and AI algorithms are used for trend prediction, equipment health management, etc.

2. Key application scenarios and value

2.1 Real-time and accurate material level monitoring: solving the problem of "inaccurate and difficult measurement"

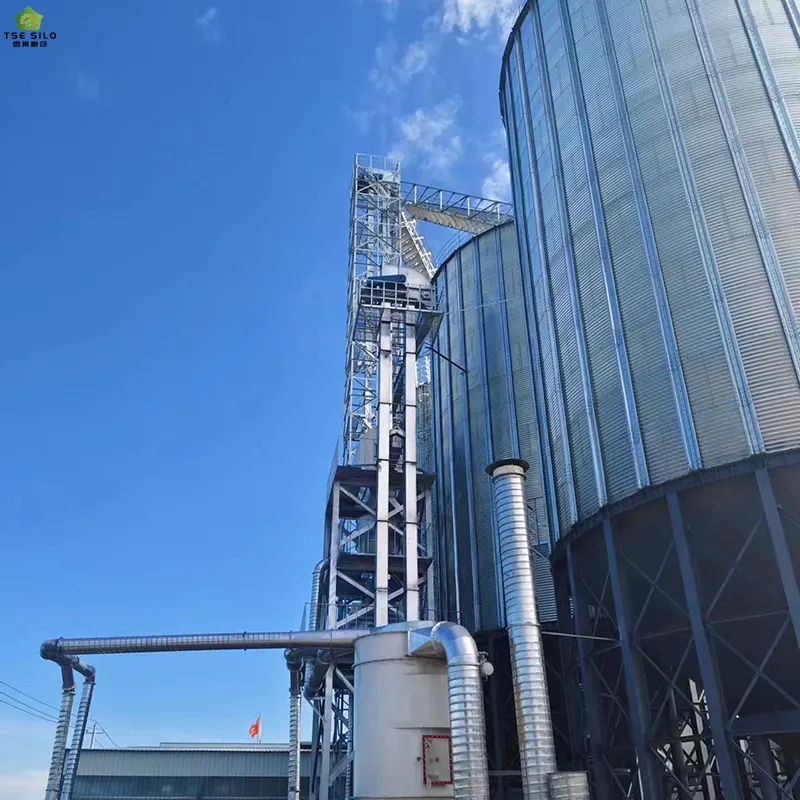

Large steel silos can reach a diameter of 10-40m and a height of 20-50m. Traditional manual measurement not only has a large error (±8%-15%), but also requires high-altitude operation, which is unsafe. The intelligent system uses sensors adapted to different materials to achieve non-contact, high-precision measurement:

• Dusty environments (cement, fly ash): High-frequency radar level sensors (26GHz or 79GHz) are used. Their electromagnetic waves have strong penetrating power, penetrating dust layers and achieving a measurement accuracy of ±10mm, eliminating measurement errors caused by dust obstruction.
• Sticky materials (asphalt, grease): Guided wave radar level sensors are used, with probes directly contacting the material to avoid "false level" readings caused by sticky materials clinging to the wall.
• Grains (wheat, corn): Ultrasonic level sensors (low-cost) or radar level sensors are used. Taking advantage of the good flow properties of grain, they provide stable static and dynamic (during loading) level monitoring, with an accuracy of ±2%-5%.
• Real-time inventory: The system provides continuous and accurate material level data. Combined with silo geometry, it can calculate material volume and weight in real time, enabling precise financial accounting and supply chain management.
• Preventing material shortages and warehouse overflows: Real-time monitoring of material levels and timely triggering of alarms can prevent production continuity from being affected by material shortages or material waste and environmental pollution caused by overflowing warehouses.

2.2 Intelligent inventory management: From "manual inventory" to "automatic accounting"

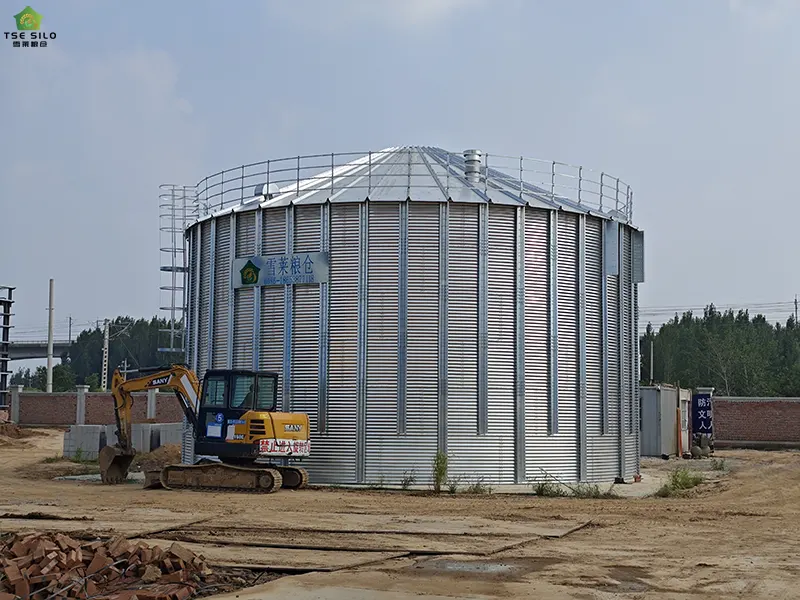

Large steel silos are often operated in a "cluster" form (e.g., a grain warehouse with dozens of silos). Manual inventory requires measurement and calculation of each silo, which is time-consuming, labor-intensive, and prone to errors. The intelligent system:

• Automatically associates silo parameters (diameter, height, material stacking angle), and calculates inventory volume/weight in real time based on material level data (e.g., when the density of corn is 1.2t/m3 and the material level height is 15m, the inventory in a single silo is ≈π×(10m)2×15m×1.2t/m3≈5652t);
• Generates real-time inventory ledgers, supports multi-silo data aggregation and historical data query (e.g., inflow and outflow trends in the past 30 days), and automatically generates reports (e.g., daily and monthly reports), reducing manual statistical workload by more than 60%;
• Supports unified scheduling of multiple silos (e.g., when the material level in a silo is low, priority is given to unloading from the adjacent high-level silo), improving storage turnover efficiency.

2.3 Safety warning and protection: Avoiding the risks of "overflow, collapse, and overloading"

Once a large steel silo has a safety problem (e.g., overflow, material collapse), the consequences are serious (e.g., cement overflow causes equipment damage, grain collapse causes silo deformation). The intelligent system provides proactive protection through a multi-level warning mechanism:

• High and Low Material Level Warning: Set an "upper limit" (e.g., 25m) and a "lower limit" (e.g., 5m). When the threshold is reached, automatic audible and visual alarms sound and trigger control logic (e.g., stopping loading and starting unloading).
• Abnormal Material Level Change Warning: By analyzing the material level curve (e.g., during normal loading, the material level rises steadily; a sudden stagnation may indicate a blockage in the feed port; a sudden drop may indicate a partial collapse of the material), the system identifies anomalies in real time and issues warning messages.
• Uneven Load Warning: In large steel silos with a large diameter (>20m), a single sensor cannot monitor the material level distribution. Multiple sensors are deployed (e.g., 2-4 sensors are evenly installed along the silo wall). If the material level difference between each sensor exceeds 30cm, an "uneven load" is detected, triggering a warning and adjusting the discharge port to prevent uneven load on the silo and structural damage.
• Preventing Compaction and Collapse: Powdered materials stored for a long time can easily compact within the silo, forming "arches" or "wells," which can hinder unloading. The intelligent system can monitor the material level changes during unloading, detect abnormalities in time, and prevent damage to the silo structure caused by the impact load caused by sudden landslides.

2.4 Automated linkage control: Realize "unmanned operation"

The intelligent material level system can be linked with the steel plate silo's loading (belt conveyor, elevator) and unloading (screw conveyor, gate) systems to form a closed-loop control:

• Loading linkage: When the material level is lower than the "start threshold", the belt conveyor is automatically started to load the material; when it reaches the "stop threshold", the loading is automatically stopped to avoid overflow or empty silos caused by manual operation delays;
• Unloading linkage: According to the material level distribution (multi-sensor data), the opening of different unloading ports is controlled to ensure uniform material unloading and prevent equipment idling caused by partial empty silos;
• Extreme scenario emergency control: In the event of a power outage, the system saves the material level data through UPS power supply and triggers the emergency gate to close to avoid material leakage.

II. Optimization Directions for Intelligent Material Level Systems

Although intelligent material level systems have addressed traditional pain points, complex operating conditions (such as high dust levels, strong vibration, and variable material shapes) still present challenges such as fluctuating measurement accuracy, high sensor failure rates, and low system integration. Optimization is required from the following perspectives:

1. Sensor Selection and Installation Optimization: Adapting to Complex Operating Conditions

The sensor is the core of the system. Its selection and installation directly determine measurement accuracy. Optimization should be based on material characteristics, silo structure, and operating environment:

Optimization Selection:

• For high dust levels and high vibration (such as coal silos): Avoid ultrasonic sensors (dust obstructs the probe, and vibration causes data fluctuations). Prioritize 79GHz high-frequency radar (with strong dust resistance, mature vibration compensation algorithms, and ±5mm measurement accuracy).
• For low-temperature environments (such as northern grain silos, where temperatures fall below -20°C in winter): Select low-temperature-resistant sensors (operating between -40°C and 80°C) to prevent probe icing or circuit failure caused by low temperatures.
• For corrosive materials (such as chemical raw material silos): Use sensors with 316L stainless steel housings to prevent corrosion-induced damage.

Installation Optimization:

• Avoid "interference areas": directly below the feed inlet (material impact causes material level fluctuations) and silo roof vents (airflow interferes with radar/ultrasonic signals). The installation location must be 1.5 meters or more away from interference areas.
• Multi-Sensor Layout: For large silos with a diameter greater than 20 meters, evenly space 2-4 sensors along the circumference of the silo roof (e.g., for a silo with a diameter of 30 meters, three sensors should be arranged at a 120-degree angle). Use a weighted average algorithm to calculate the average material level and monitor the material level distribution.
• Blind Spot Avoidance: Radar level meters have a "blind spot" (typically 30-50 cm, meaning they cannot measure within 30-50 cm below the sensor probe). Therefore, the installation height must be higher than the combination of the maximum material level + the blind spot (e.g., if the maximum material level is 28 meters and the blind spot is 50 cm, the installation height should be 28.5 meters or higher).

2. Data Fusion and Algorithm Optimization: Improving Measurement Accuracy and Stability

A single sensor is susceptible to interference from operating conditions (e.g., a sudden increase in dust causing radar data to jump). This requires multi-data fusion and algorithm optimization to address the following issues:

Multi-sensor Data Fusion:

• Cross-type fusion: For example, a radar level meter + weight sensor (if the silo is equipped with a weighing module) measures material level with the radar and actual weight with the weight sensor. The two are calibrated against each other (e.g., if the radar-calculated weight deviates by more than 5% from the actual weight, the radar parameters are automatically corrected). This prevents misjudgments caused by a single sensor failure.
• Same-Type Redundancy: Two sensors of the same type are installed in critical silos (e.g., emergency grain storage silos). If the difference between the two sensors exceeds 3%, the sensor is identified as abnormal and automatically switches to normal data, triggering an alarm for maintenance.

Algorithm Optimization:

• Stacking Angle Correction Algorithm: Different materials have different stacking angles (corn: 30-35°, coal: 40-45°). Traditionally, inventory calculations are based on a "cylinder" (error >10%). This algorithm converts the material level height into a "cone volume" (V = 1/3πh(R² + Rr + r²), where R is the silo radius and r is the radius of the pile top). This improves inventory accuracy to within ±2%.
• Dynamic Filtering Algorithm: When loading and unloading materials experience large fluctuations (e.g., level jumps caused by conveyor belt loading), Kalman filtering or sliding average filtering (taking the average of the last 10 seconds of data) is used to filter out noise and smooth the material level curve.
• AI Trend Prediction Algorithm: Using historical material level data (e.g., inflow and outflow volumes and level fluctuations over the past six months), an AI model is trained to predict future material levels (e.g., a cement silo with an average daily consumption of 500 tons and a current level of 2,000 tons is predicted to require reloading in four days), triggering procurement or scheduling plans in advance.

3. System Integration and Intelligent Upgrades: Breaking Down Information Silos

Traditional material level systems often operate independently and lack integration with enterprise management systems. These systems require integrated upgrades to achieve full-chain intelligence:

• Integration with Production Management Systems (MES/ERP): Material level data is automatically synchronized with the ERP system, enabling inventory-procurement-production linkage (for example, when material levels fall below a threshold, ERP automatically generates a purchase order; when production plans are adjusted, MES optimizes production based on material level data).
• Integration with Safety Monitoring Systems (such as temperature, humidity, and gas concentration monitoring): In grain silos, material level is linked to temperature and humidity (high material levels lead to poor ventilation, and elevated temperature and humidity can lead to mold), automatically activating ventilation equipment. In chemical raw material silos, material level is linked to toxic gas concentration (low material levels can lead to gas leaks), triggering alarms and ventilation.
• Remote Monitoring and Mobility: Develop a web platform or mobile app to enable management personnel to view:
• Real-time data: Material level, temperature, and equipment status in each silo.
• Early warning information: Push notifications for abnormal situations (e.g., "Bin 2 material level is unevenly loaded, difference 40cm");
• Remote control: Remotely stop loading/unloading in an emergency (requires permission control). Suitable for scenarios with multiple bins spread across a wide area (e.g., grain depots located across multiple regions).

4. Maintenance and Reliability Optimization: Reducing Operation and Maintenance Costs

The large number of large steel silos and their scattered locations make sensor troubleshooting challenging. Therefore, "intelligent maintenance" is needed to improve reliability:

• Automatic Fault Diagnosis: The system monitors the sensor's "communication status, power supply voltage, and data fluctuation range" in real time. If "communication interruption," "long-term data stability," or "fluctuation exceeding a threshold" occurs, it automatically determines the fault type (such as "sensor offline" or "probe contamination") and notifies the fault location (such as "radar sensor east of silo 3"). This reduces manual inspection time (from the traditional two-hour troubleshooting to five minutes).
• Regular Automatic Calibration: Automatic calibration is scheduled once a month (for example, by comparing with manual sounding data). If the deviation exceeds 3%, the system automatically adjusts sensor parameters (such as radar gain and filter coefficient) without manual intervention.
• Self-Cleaning Design: Sensors susceptible to contamination (such as ultrasonic and low-frequency radars) are equipped with automatic purge devices (compressed air is periodically purged with the probe every hour) or dust covers (high-temperature and corrosion-resistant) to reduce measurement errors caused by dust accumulation and extend sensor life by over 30%.

III. Application Results and Future Trends

1. Typical Application Results

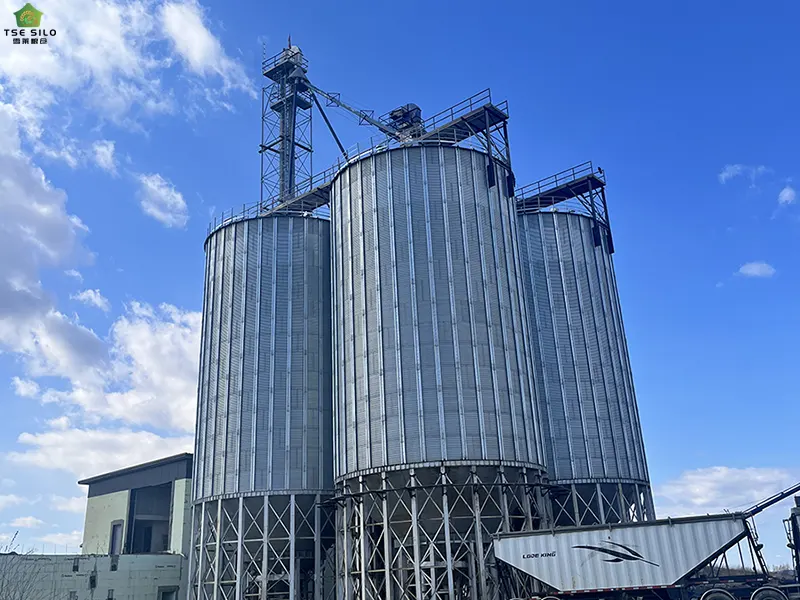

• Grain Storage: After implementing the "radar level meter + multi-algorithm fusion" system, a Mexican grain warehouse (20 25m diameter steel silos) increased inventory accuracy from ±8% to ±2%, reduced labor costs by 70%, and reduced the incidence of spillage and mold accidents to zero.
• Cement Plant: A cement company (three 18m diameter, 30m high cement silos) implemented the "79GHz radar + eccentric load warning" system, achieving 100% accuracy in eccentric load identification and preventing silo deformation caused by eccentric loads (traditionally, maintenance was required 1-2 times per year, but after optimization, no maintenance was required for three years).
• Coal Mine: A coal mine (five 30m diameter raw coal silos) implemented the "anti-vibration radar + data fusion" system, achieving measurement accuracy of ±3%, eliminating measurement failures caused by strong vibration and high dust levels, and reducing equipment failure rates by 60%.

2. Future Development Trends

• More comprehensive multi-parameter integration: Evolving from "single material level" monitoring to multi-parameter monitoring encompassing "material level + temperature and humidity + gas concentration + silo stress," achieving "full state awareness" for steel silos (e.g., monitoring silo wall stress and providing early warning of structural safety issues);
• Deeper AI applications: Using AI models to analyze material level and inlet and outlet data, predictive maintenance (e.g., predicting sensor failures within the next month and enabling preemptive replacement) and intelligent scheduling optimization (e.g., optimizing unloading sequences based on multiple silo material levels and transportation costs);
• Accelerating domestic substitution: The accuracy and reliability of domestic radar level meters and intelligent control platforms are approaching international standards (e.g., Huawei and Inovance), while offering lower costs (30%-50% lower than imported equipment). These technologies will further replace imported equipment and reduce enterprise investment.

Conclusion

Intelligent material level systems are not only a tool for material level measurement in large steel silos, but also the core enabler for secure storage, efficient management, and unmanned operation. Its application needs to be closely integrated with material characteristics and warehouse requirements, and its value can be maximized through full-link optimization of "sensor selection-data algorithm-system integration" - in the future, with the deepening of AI and Internet of Things technologies, intelligent material level systems will gradually achieve "self-perception, self-decision-making, and self-maintenance", becoming the standard for modern management of large steel silos.
