This project is a project to build 2-300 ton barley, wheat and rapeseed silos and drying equipment in Outer Mongolia. The project adopts advanced steel silo complete equipment storage solutions, saving land area, reducing the number of workers, and realizing the automated management and transportation of materials from storage, transportation, drying, and production, solving customers' pain points and bringing long-term benefits to the company.

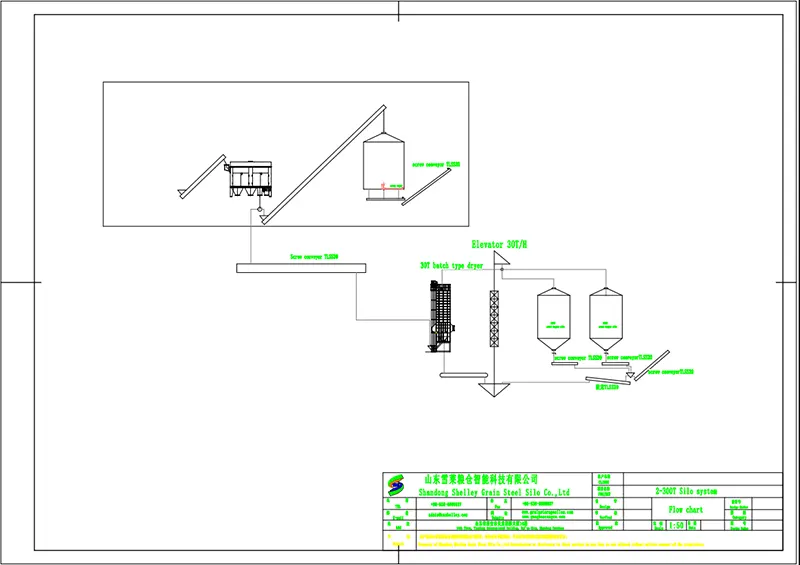

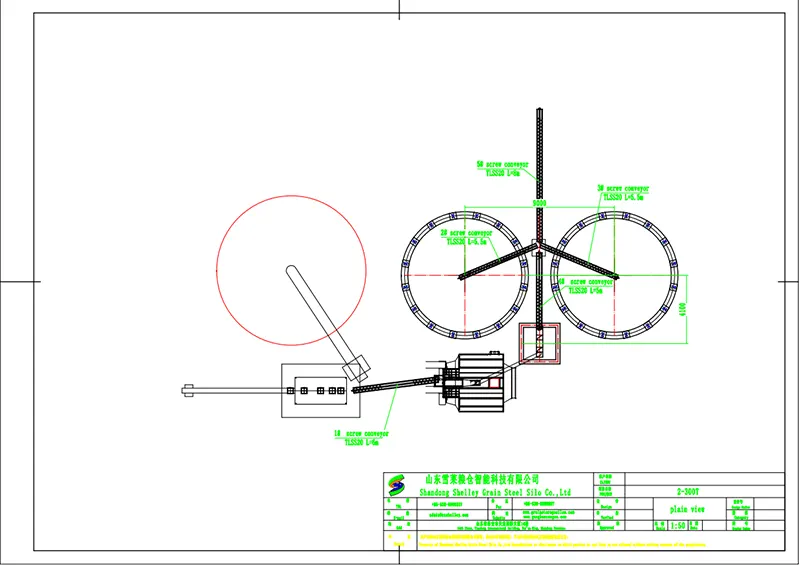

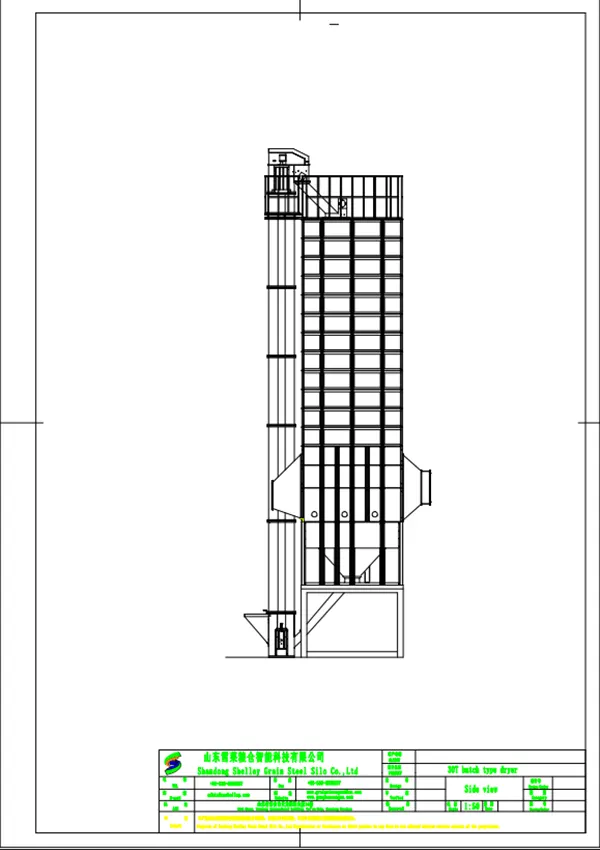

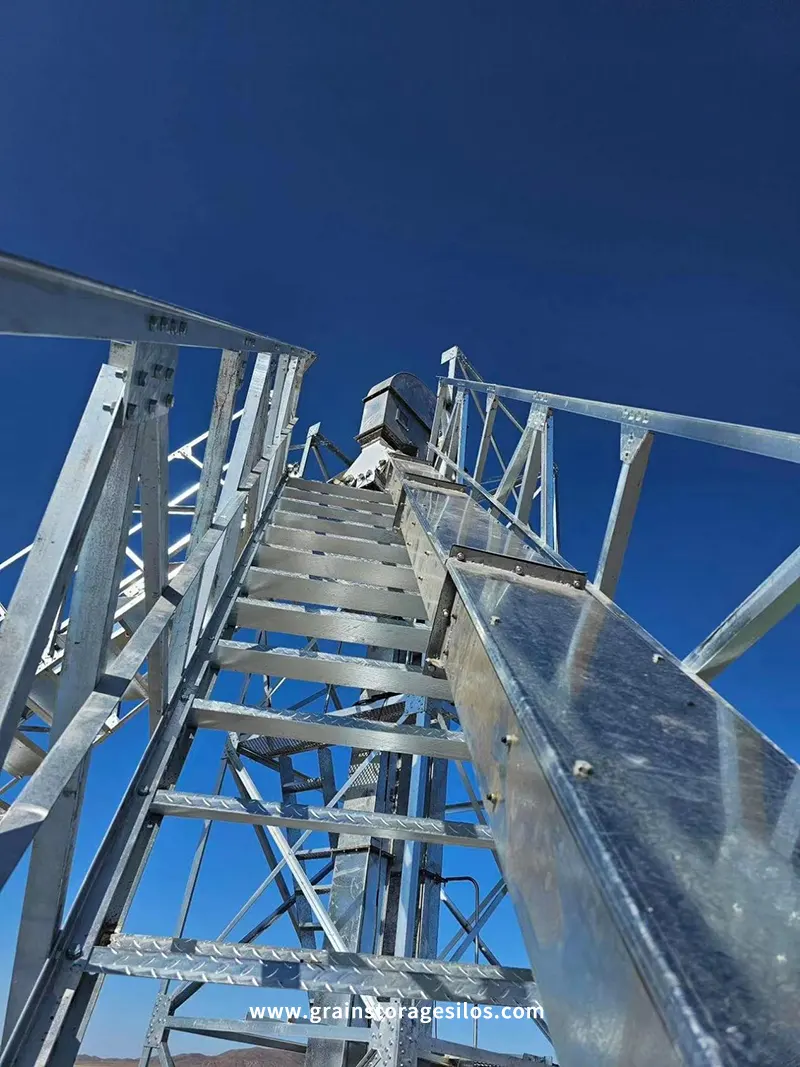

2-300 ton cone bottom steel silo are divided into two lines for transportation. One line is to transport dry grain to the cleaning screen via a screw conveyor, and then the screw conveyor directly transports the grain to the steel silo (provided by the customer). The other line is to transport wet grain to the drying tower through a screw conveyor, and then lift it to the steel silo by the elevator, and then the drag conveyor at the bottom of the silo completes the cycle drying, or the screw conveyor at the bottom completes the silo exit process. At the same time, the silo is equipped with ventilation and temperature measuring devices, which can detect the temperature and humidity changes of the grain in the silo in real time to achieve the purpose of safe grain storage. When the grain is out of the silo, the drag conveyor at the bottom of the silo transports the grain to the designated location.

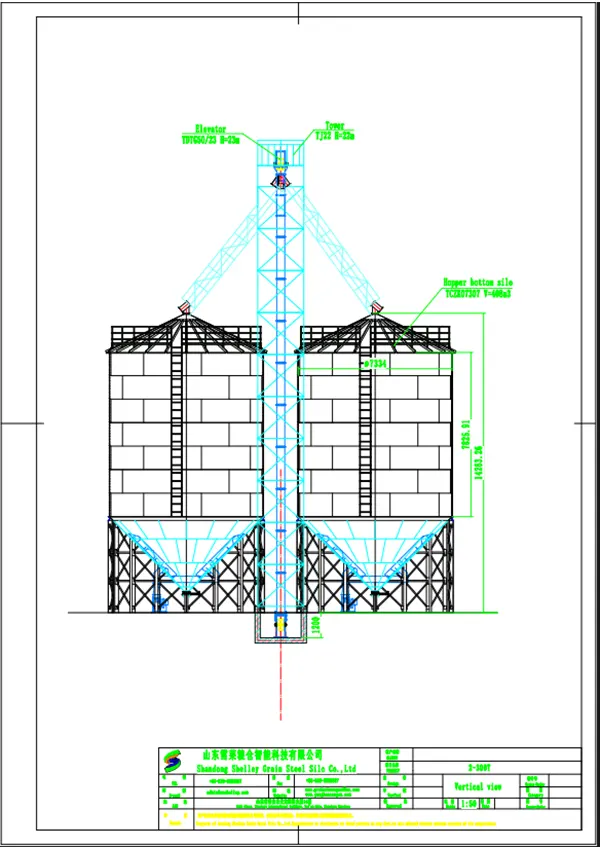

Model: 300T cone bottom steel silo
Volume: 408m³
Diameter: 7.3m
Silo height: 7.82m
Total height: 14.26m
Silo top angle: 25°

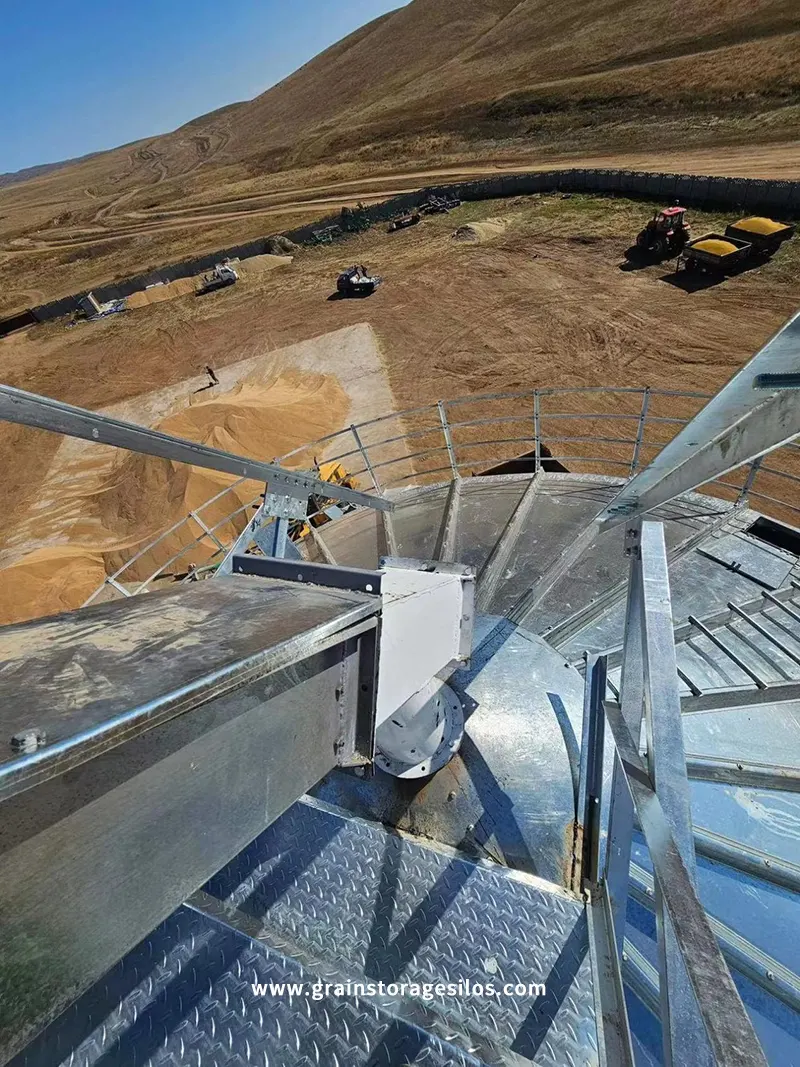

The silo roof cover is made of δ1.0mm hot-dip galvanized plate, and domestic high-quality hot-dip galvanized plate is selected. Ventilation windows, manholes, and ladders are set on the silo roof. The silo roof is sealed with aviation glue and waterproof washers, and safety guardrails are set around the silo eaves.
Silo: The silo wall material is made of high-quality hot-dip galvanized coils from large steel mills. The double-sided galvanizing amount is 275g/㎡, and the final galvanized coating presents a continuous, smooth and uniform effect. The corrugated plate adopts automatic punching; the joints of the silo are sealed with aviation-grade waterproof adhesive strips; the columns and silo walls are connected with high-strength bolts with specially customized anti-oxidation films and special coatings.
The cone bottom steel silo is made entirely of steel structural parts, which is easy to discharge.

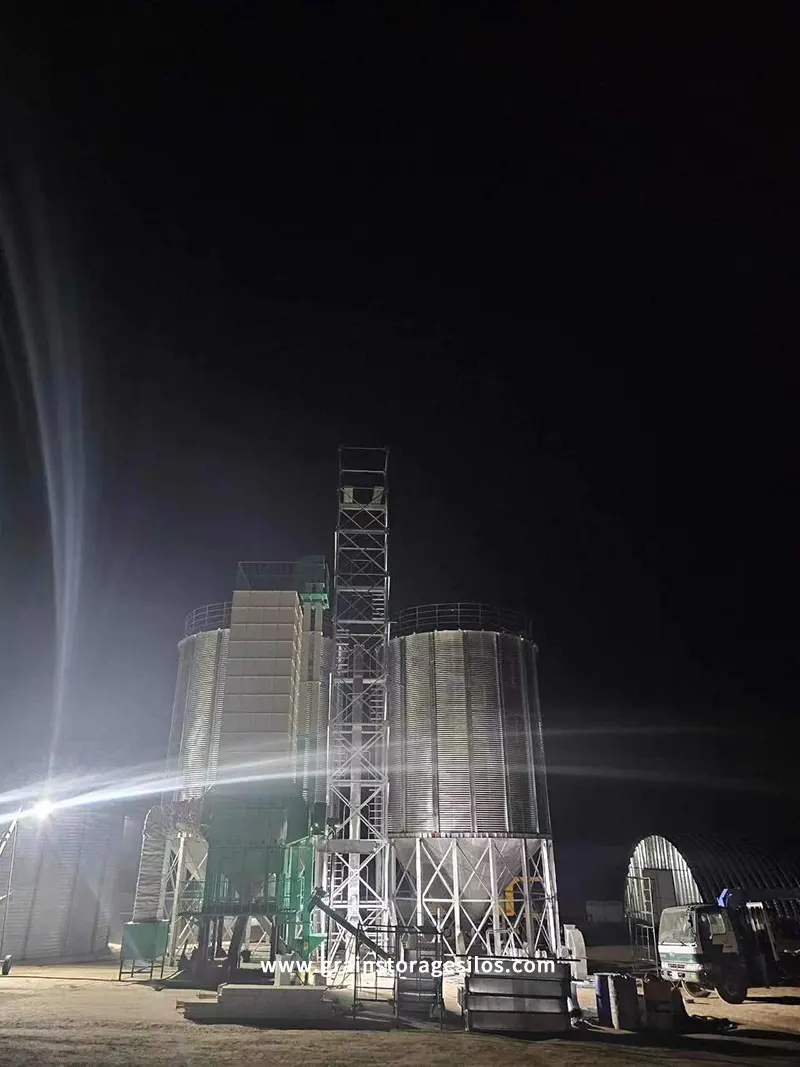

After the project was processed in our factory, it was shipped to client’s site through logistics. After the goods arrived at the site, installation personnel would be sent to the project site to unload the truck and complete the installation and commissioning of the project. With the cooperation of both parties, the project was successfully installed and received praise from our client, who gave high praise our company and our on-site engineers.
Taian Shelley Engineering Co., Ltd. is a leading domestic grain storage solution provider, dedicated to providing global customers with a one-stop service provider for grain storage and supporting solutions. It is a modern high-tech enterprise integrating the research and development, design, manufacturing, sales, installation and technical after-sales service of intelligent silos, intelligent environmental measurement and control equipment, automated control systems, and grain and oil processing equipment.
Founded in 2007, the company has complete hardware and software facilities and now has more than 60 invention patents and utility model patents. It has a dust-free workshop equipped with the most advanced fully automatic laser cutting machine, fully automatic corrugated plate roll forming machine, fully automatic silo roof cover production line, welding robot, CNC lathe, metal bending machine and automatic shearing machine, etc. The company has more than 30 professional designers and engineers, more than 300 factory directors, workshop directors, production dispatchers, skilled workers and installers; automated production effectively guarantees high-quality, high-precision and standardized production operations, and effectively meets the high-quality and timely delivery of projects.
The prefabricated steel silos produced by the company can have a single silo volume of 50 tons to 15,000 tons. The design service life of the silo is more than 25 years. Since the establishment of the company, the storage and supporting equipment produced by our company have established extensive cooperation with domestic customers with excellent product quality and good after-sales service. At the same time, they are exported to more than 63 countries and regions including Argentina, Australia, the United States, Chile, Cambodia, Ethiopia, Honduras, Iran, India, Indonesia, South Korea, Malaysia, Myanmar, Pakistan, South Africa, Sudan, Serbia, Thailand, Tanzania, Ukraine, Vietnam, Peru, New Zealand, Mexico, Philippines and Uganda, and have won wide acclaim from domestic and foreign customers.
