this is an assembly hopper bottom steel silo project for corn and soybeans pulp storage.
assembly steel silo is easy for transportation and installation.also can be reused for saving cost.
regards to liquidity, we designed 70°corner cone bottom silo for bean pulp,to make sure bean pulp goes out smoothly.

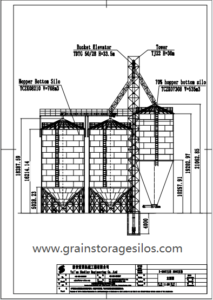

2x500t galvanized grain silo specification in this system
model:tczk08210
diameter:8.2m
volume:708m3
eave height:16.22m
total height:18.29m
hopper bottom silo rings:10 rings
silo bottom angle:45°
zinc coated:275g/m2
300t galvanized grain silo specification in this system
silo model:tczk07308
volume:535m3
diameter:7.3m
eave height:19.2m
total height:21.06m
zinc coated:275g/m2

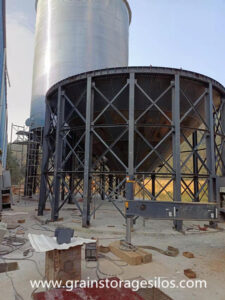

hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are?the steel silos with a cone bottom. hopper bottom silos are erected on the supporting structure to make the delicate products unloading easily through gravity. hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. the stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
