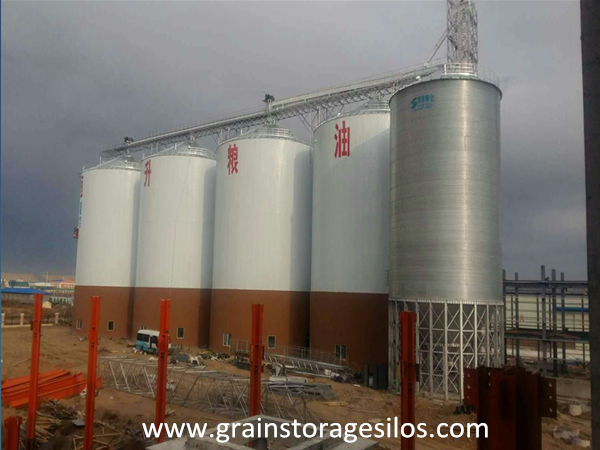

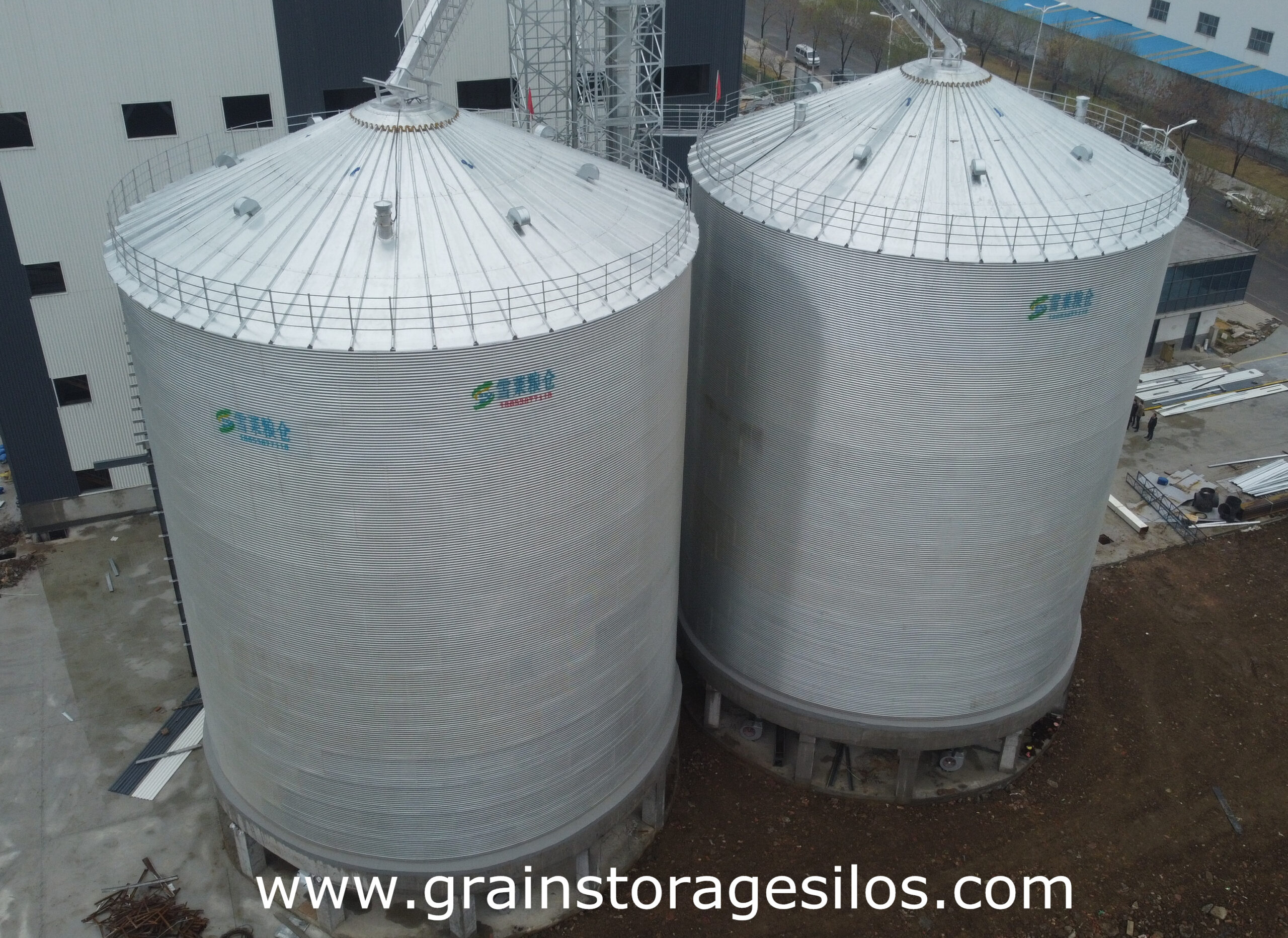

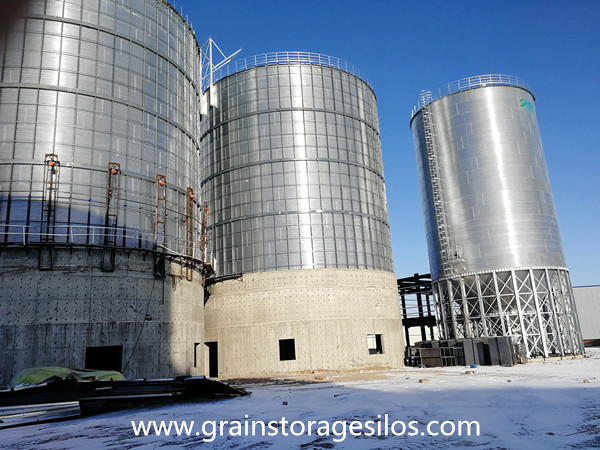

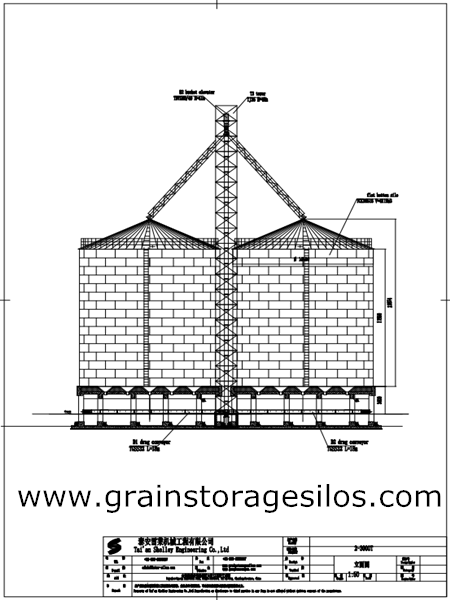

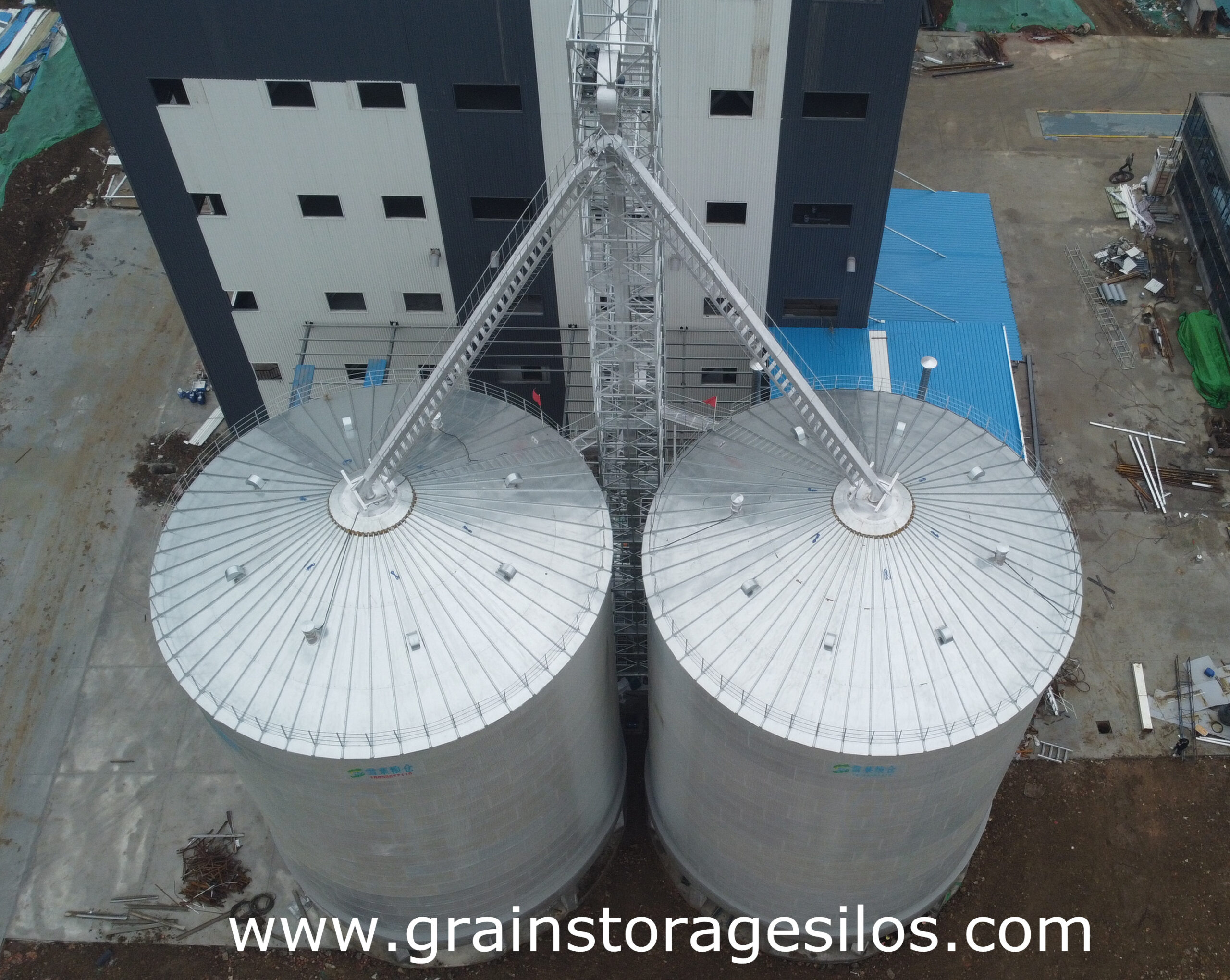

the grain steel silo project was installed in china in 2020.the 2 sets 3000t grain steel silos are for corn.the silo type is galvanized flat bottom silos.
2x3000t galvanized corn steel silo specifications
model:tck16516
diameter:16.50m
volume:4119m3
eave height:17.975m
total height:21.81m
hopper bottom silo rings:16 rings
silo roof angle:25°
silo hopper angle:45°
zinc coated:275g/m2
flat bottom silos (also called flat bottom bins, flat bins) are commonly selected steel silos or steel bins to storage bulk grains and other materials. large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m3 to 29726 m3. ?these grain bins are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. all our flat silos or flat bins are designed, manufactured and installed in accordance with d-4097 or astm d-3299 standards.
in recent years, we had invested more than 3,000,000 dollars into our 9,000 square meters state-of-the-art manufacturing grain bin factory. our modern factory is equipped with the most advanced machines like fiber laser cutting machines, metal steel sheet cnc bending machine and professional welding line, etc , which give us the power to keep high product quality, shorter delivery time and competitive cost?to meet the demands of our worldwide customers.?most products had been kept up with the international forefront counterparts. some of them have enjoyed leading position, especially grain storage controlling software and grain security system.
if you have any inquiry about silos,please contact us freely,tse are service here all the time.
