Vibrating Cleaner Screen is one of the commonly used grain cleaning equipment for steel silos, it is suitable for cleaning out dust from grain, food, chemical, paper, ceramics, coatings and pharmaceutical, etc. Different types of materials can be cleaned by different diameters within the used for grain cleaner.

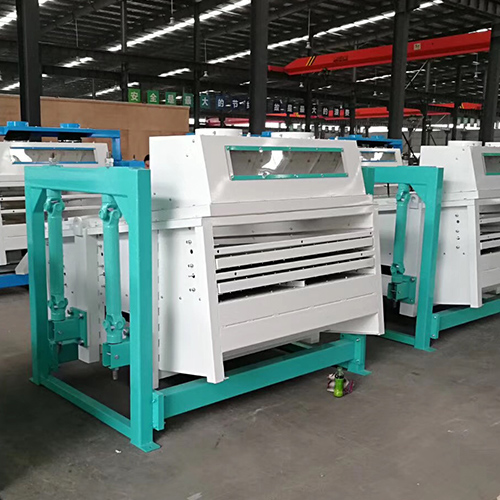

Vibrating Cleaner Screen for Grain Storage Silos
The driven mechanism is in the center of the machine, the entire screen can be rotated in a pure plane so that the same screening effect is obtained on each part of the screen surface. The machine drive is simple, only one belt will connect the belt wheel of eccentric drive device and the belt wheel of drive motor pulley, vibration frequency of 300 r / min, with a clean-up sieve frame makes the screen to be effectively cleaned, thus ensuring the screening efficiency and screening quality.

The vibrating cleaning screen is an innovative product that adopts international advanced technology to digest and absorb. It is used for the initial cleaning and cleaning of raw materials. Due to the high-frequency, small-amplitude vibration motor drive, the structure is greatly simplified and power is saved. It can sift and clean the small and large light impurities in the grain. It can be used in flour mills, rice mills, feed mills, chemical plants, food processing plants, oil processing plants and other fields. Changing sieve plates of different specifications can clean wheat, corn, rice, oil and other materials. When using this machine, it can be equipped with a vertical suction separator to separate the materials by suction, so that light impurities and dust can be further cleaned, and it can be adjusted according to the impurities in the materials, so that the winnowing effect can reach the most ideal state. This machine has simple and advanced structure design, good cleaning effect, large output, small volume, convenient adjustment, easy maintenance, low noise and no pollution. It is an ideal cleaning equipment

Use and maintenance
1.Before using the machine to check whether there is damage to the components and loosening, and the reducer and other rotating parts oiling or lubricating before boot atter treatment to prevent failure due to poor lubrication, and adjust according to varieties and production of raw materials tilt angle. 2. Before starting the machine device to make it idle, no abnormality was continued for 30 minutes, no problem idling allowed only after feed production. 3.To clean up promptly on the screen sieve body, joints and motor shaft outer end wound astic rope and other debris (The machine must be shut down before cleaning and guardiar staff) he equipment should be regularly checked and maintained, the universal joints should noted to a calcium-based grease each quarter, the roller bearings should be raised calcium-based grease once a month.

Installation Instructions

*If the client wants to install 10ton-1500ton steel hopper bottom grain silos by themselves, we could offer detailed instruction,
and we'll give our quickest response to deal with any question in the process.
*We could also send our engineer to supervise the installation process. The client could find local workers for the installation
work and our engineer will help them during the process.
*If the client needs, we could send our installation team for the whole installation issue.
