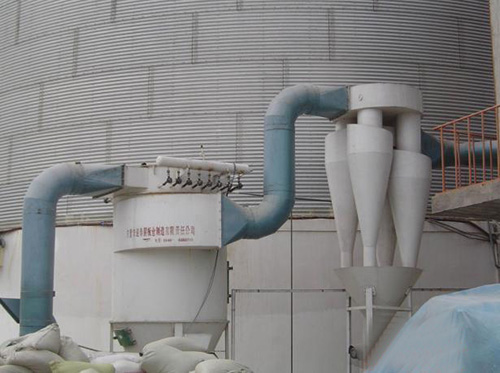

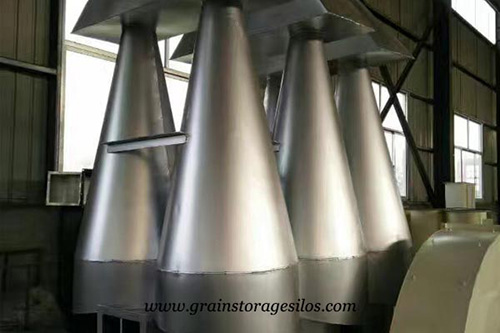

The cyclone separator is also called Shakron, which separates dust by the inertial centrifugal force of the rotating airflow. This movement makes the centrifugal force generated by the dust many times larger than gravity, so the dust collection efficiency is much higher than that of the settling chamber. When separating dust particles above 20-30 microns, the purification efficiency can reach 98%. In addition, its structure is simple, compact, easy to manufacture, low cost, small footprint, convenient management and maintenance, so it is widely used in factories. TLCX series cyclone dust collector is a new generation of high-efficiency dust collection equipment developed by our factory on the basis of similar products at home and abroad. The single, double and quadruple cyclone dust collectors produced by our company are widely used in the ventilation and dust collection of grain and oil, feed, chemical industry and mines. The main models are: down-spin 50 type, 55 type, 60 type; diffusion type centrifugal dust collector, etc., and can be designed according to user requirements.

The cyclone dust collector is composed of an inner tube, an outer tube, a cone and an air inlet. The dust-laden air enters between the inner and outer cylinders along the tangential direction through the air inlet on the upper part of the outer cylinder, and spirally moves from top to bottom to the bottom of the cone. The dust in the airflow is thrown to the cylinder wall under the action of centrifugal force, and falls to the bottom of the cone due to gravity and the downward airflow, and then is discharged from the ash discharge port. After the downward airflow reaches the bottom of the cone, it turns upward along the axis of the dust collector, forming a rotating and rising internal vortex, and is discharged from the air outlet of the dust collector.
