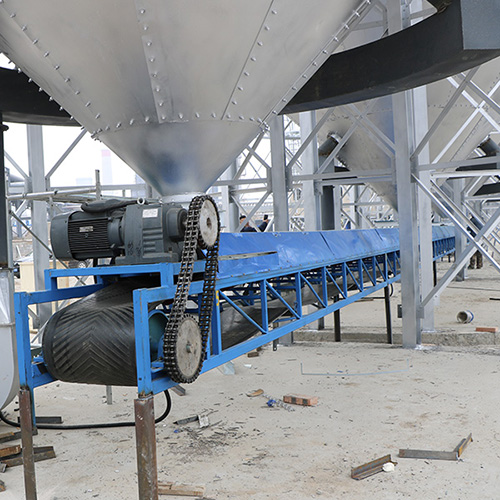

Belt conveyor is one of the main material handing equipment for grain storage silos, it consists of metal frame body with pulley at either end, the bed of rollers lies between the pulleys. The belt is looped around each pulley, it slides across the rollers there by moving the materials on the top of the belt when one of the belt is powered by electrical motor. Belt conveyors are widely used for continuous transport bulk materials like grain, powder and pellets, it is suitable for conveying all kinds of materials with loose density of 0.5 ~ 2.5 T/m³, it can also be used to transport bulk materials into pieces or package. Belt conveyor is often installed in connection with other transport machinery or conveyors.

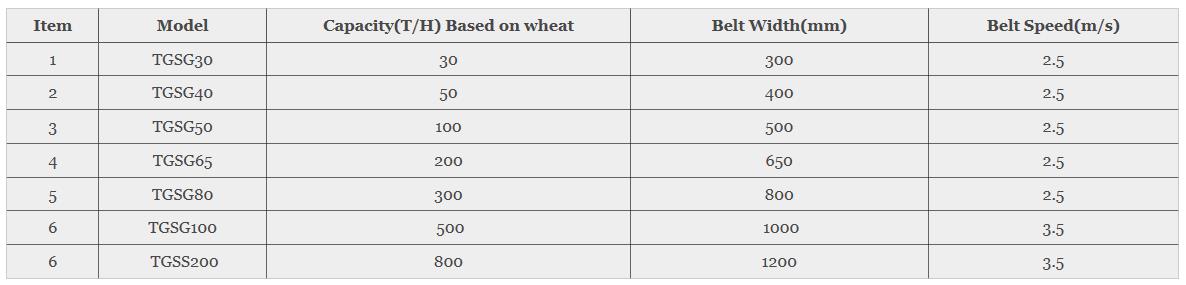

Specifications of Belt Conveyor

Features of Belt Conveyor

•High Capacity, easy to operable
•Easy to maintain
•Longer life span
•Conveying angle can be adjusted to up 45°
•Adjustable conveying speed, height
•Easy to install and disassembly
•Quick release mechanism with preset belt tension

Belt Conveyor Applications

Belt conveyors are widely used in flour mill, feed processing plants, oil plants, starch plants, mining, chemical and other places.
