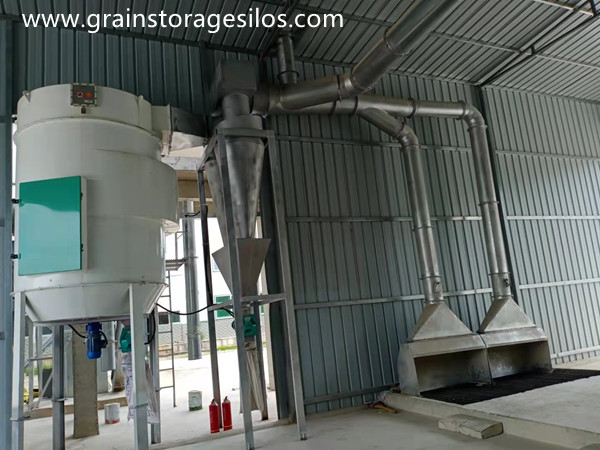

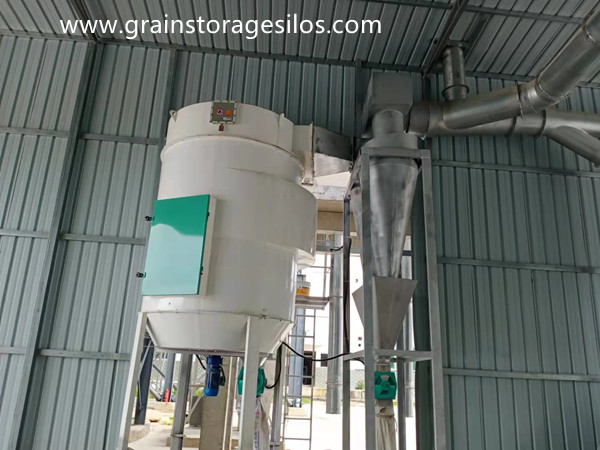

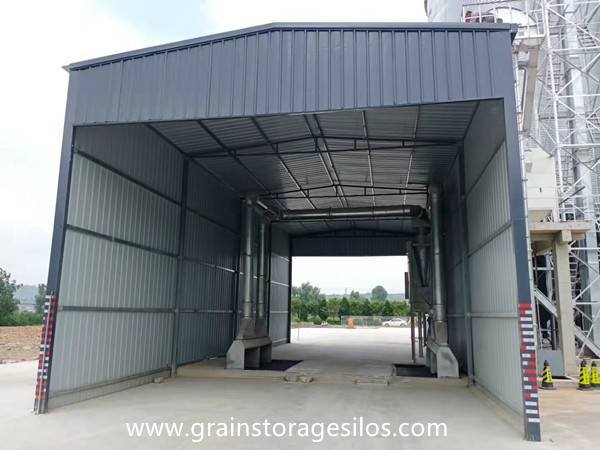

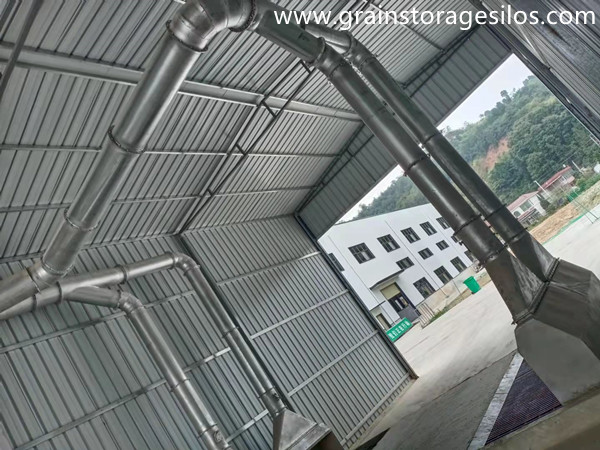

grain will generate a lot of dust during transportation. when the grain is unloaded, the dust and light impurities in the grain enter the cyclone through the suction hood, and the dust is removed in the cyclone through the action of centrifugal force. large-scale impurities and fine dust enter the pulse dust collector. there is a filter bag in the pulse dust collector. the dust passes through the filter bag and adsorbs the fine impurities to the filter bag, so that the clean air is discharged into the atmosphere through the fan.
description
cyclone is a large scale air mass that rotates around a strong center of low atmospheric pressure, it?is one of the commonly used?grain cleaning equipment?for steel silos. cyclone collectors are often employed as an initial stage collector to lighten heavy dusts loads before being sent to a primary stage fabric collector. by removing coarse particles from the gas stream, and allowing later stage fabric collectors to solely remove finer particles, these collectors increase the efficiency and service life of fabric collectors and their filters. thus protecting your larger and most costly investment from unnecessary wear and tear.
cyclone is often named after the cyclone weather phenomenon, dust and debris are sucked in at the top.? air containing fine dust blows out of the other side of the top, while chips and large dust particles fall out of the bottom into a drum or bin.? dusty exhaust air is either blown outside or filtered again using media filtration.
