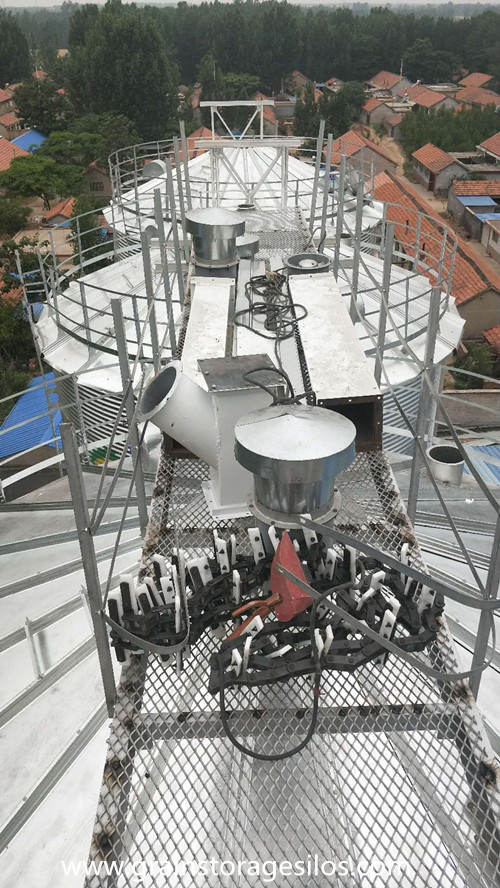

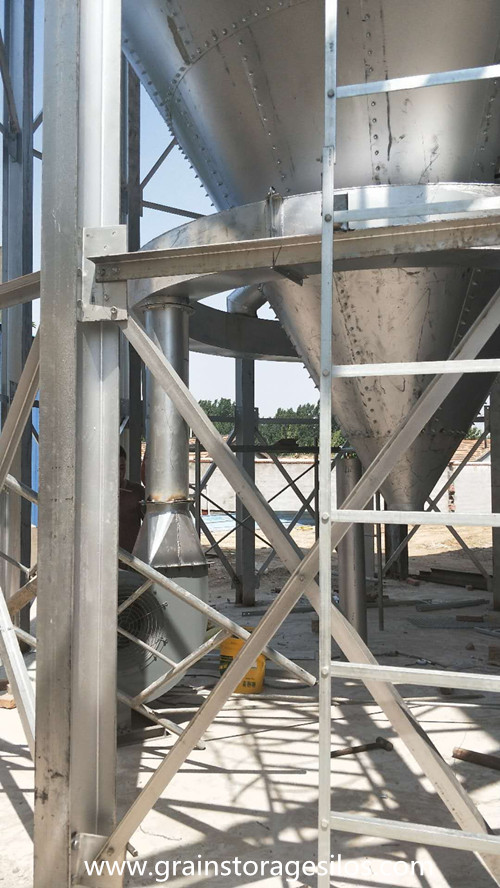

grain steel silo?project is on the installation in weifang city, shandong province?recently.?the grain steel silo is used for corn storage, it also can be used for wheat, rice, paddy, barley, soybean and so on.
this grain steel silo?project?includes?2 sets of 410m3?corn storage silo?and 1 set of 360m3 maize storage silo, 60t?/h?grain cleaning system and dedusting system, 2 sets of 60t/h grain bucket elevator with support tower?for vertical transportation, 5 sets of 60t/h grain drag conveyor?for horizontal transportation, ventilation system, temperature monitoring system, level indicator, waterproof round type grain spout, related connection parts?and electric control system.
grain steel silo is made of hot dip galvanized steel sheet with 275g/m2 coating mass. can be used for more than 25 years. also we could customize 350g/m2, 450g/m2 galvanized coating for customer’s requirement.
cleaning and dedusting system
double drum pre-cleaner
air processing capacity: 3000m3/h, cleaning rate ≥85%
cyclone
2-skl750, air processing capacity: 3850-5720m3/h
airlock( airshutter)
tgfy9, 24r/min
impulse deduster
tblm52, filtration velocity: 1-3m/min
filter area: 38m2 air processing capacity: 7500-9050m3/h
dedusting fan
4-72№5a, air processing capacity: 4047-7471m3/h
dedusting pipe network
fw40
ventilation system
blower: 4-72№4.5a, 2900r/min, air processing capacity: 4047-7471m3/h, used at the bottom of silo to blow the air into silo;
suction fan: t35-11,?2900 r/min, used on the roof of silo, used to suct the air out from silo;
ventilation pipe: circular ventilation pipe with holes
temperature monitoring system
there are sensors every 2.5m on each cable from top to the bottom; one set of software .
level indicator
zl-ii, blocking-rotating type, 2sets per silo
electric control system
electric control cabinet will be put next to the bucket elevator of this system;
we select domestic high-quality electronic components(zhengtai) for the electric control cabinet, gb;
contains all the cables, threading and trunking from electronic control room to the equipment;
