2-500T corn storage silos and 1-100T soybeans meal storage silo project has been completed in Henbei Province China
This is a grain storage silos project for a livestock farm in Hebei province,China.2 sets 500T corn storage silos and 1 set 100T soybeans meal storage silo.

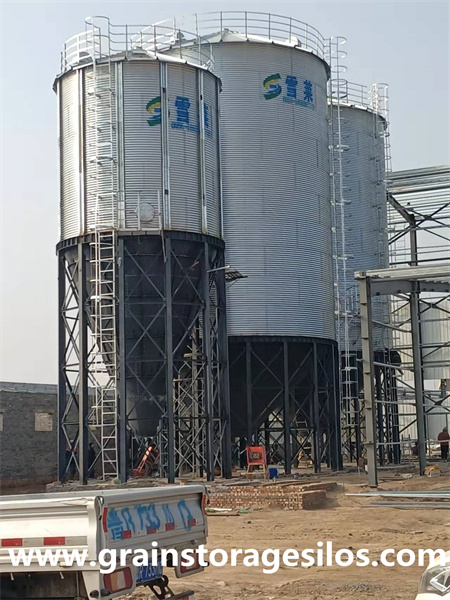

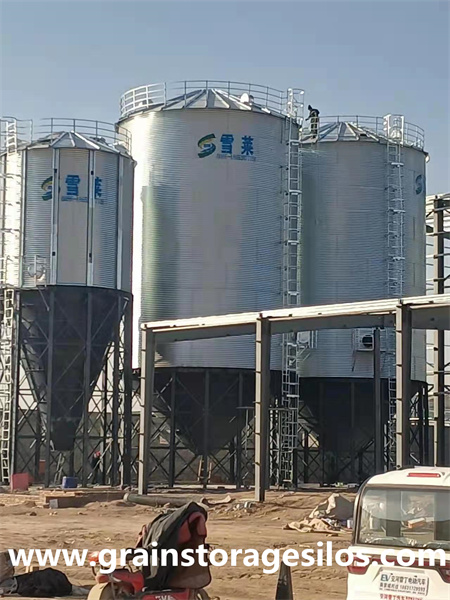

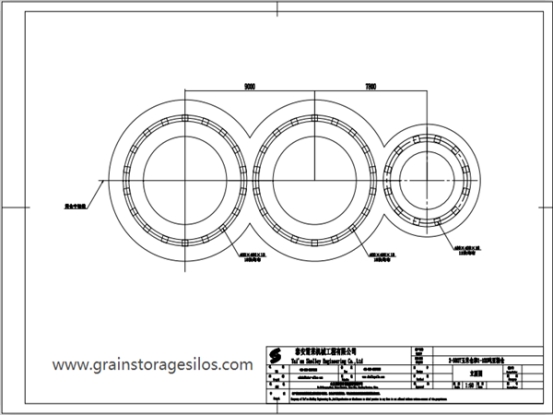

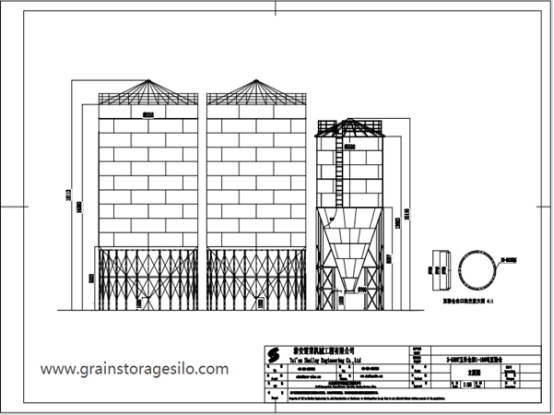

The overall design drawings are as follows
Considering the poor fluidity of soybean meal, we TSE designed a 70 degree cone base angle for 100T grain storage silos,to make sure soybeans meal can go out smoothly.
And there is a flange connection at bottom of 100T silo,in order to connect with four axis screw conveyor which can also assist soybeans meal can be discharged smoothly.
Silo technical parameters are as follows，
2x500T galvanized steel silo specification in this system
Model:TCZK08210
Diameter:8.2m
Volume:708m3
Eave height:16.203m
Total height:18.113m
Hopper bottom silo rings:10 rings
Silo bottom angle:45°
Zinc coated:275g/m2
100T galvanized steel silo specification in this system
Silo model:TCZK04505
Volume:121.13m3
Diameter:4.50m
Eave height:10.48m
Total height:11.58m
Zinc coated:275g/m2

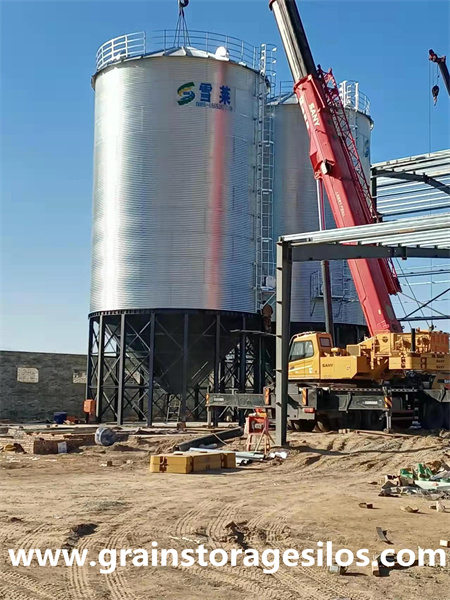

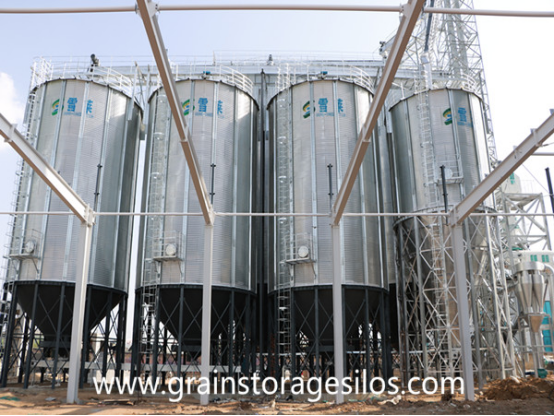

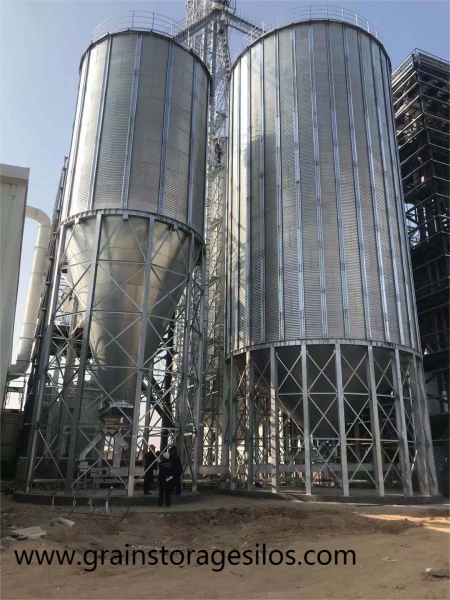

TSE similar silos cases as below for your reference.
grain storage silos(also called cone bottom silos, hopper bottom storage bins, hopper bins) are the steel silos with a cone bottom. Hopper bottom silos are erected on the supporting structure to make the products unloading easily through gravity. Hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos bottom through transportation equipment,achieving accurate material extraction or batching.
Taian Shelley Engineering Co., Ltd. is the leading steel silos designer, manufacturer and exporter dedicated in supplying turn-key grain storage solutions to worldwide customers. TSE had gained advantages in steel silos research and development, product design, manufacturing, site installation and services since the foundation in 2007.To date, we TSE have more than 17 years of experience in the field of steel silos,and products are exported to more than 52 countries.
Product innovation, quality assurance and customer satisfaction are our long term commitment to our partners. We have been kept on investing in technological innovation and product optimization with our more than 30 talented experts. Cooperated with domestic famous universities like Shandong University and Shandong University of Science & Technology in grain storage control system, grain silo structure design and handling system optimization, we had obtained more than 10 patents, and become the leading grain silo brand in China.
