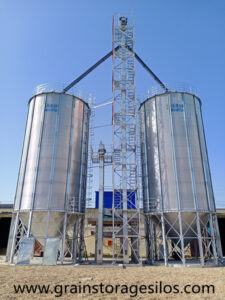

2-1000T and 4-100T assembly galvanized steel hopper bottom corn storage silos project for a poultry feed mill

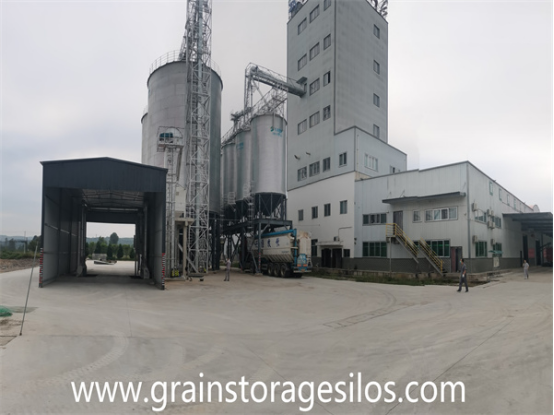

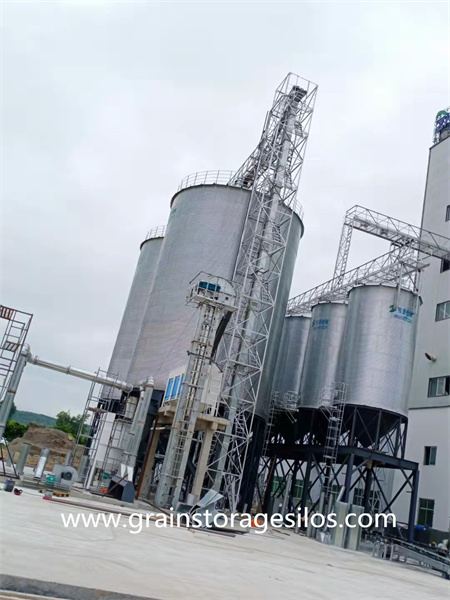

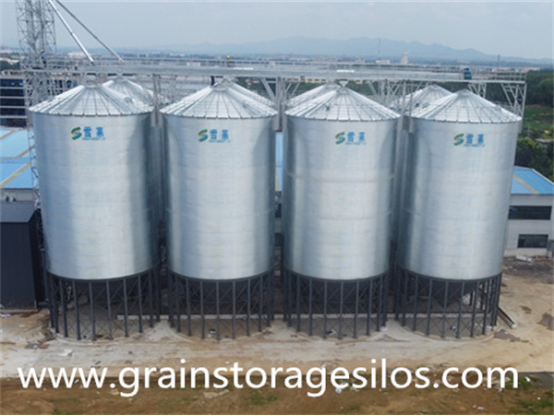

This project is a complete hopper bottom steel silos system for 2-1000T corn raw material and 4-100T corn finished material storage. The steel silos are equipped with a ventilation system, and a temperature monitoring system to ensure the safe storage of corn.
The specific parameters of the steel silo are as follows
2x1000T galvanized steel silo specification in this system
Model:TCZK10013
Diameter:10m
Volume:1360m3
Eave height:20.47m
Total height:22.97m
Hopper bottom silo rings:13 rings
Silo bottom angle:45°
Zinc coated:275g/m2

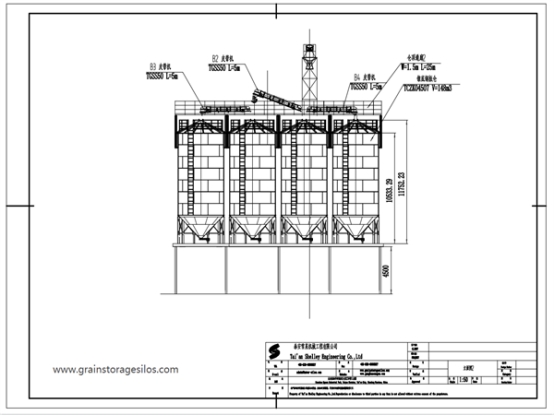

4x100T galvanized steel silo specification in this system
Model:TCZK04507
Diameter:4.5m
Volume:148m3
Eave height:11.03m
Total height:12.27m
Hopper bottom silo rings:7 rings
Silo bottom angle:45°
Zinc coated:275g/m2

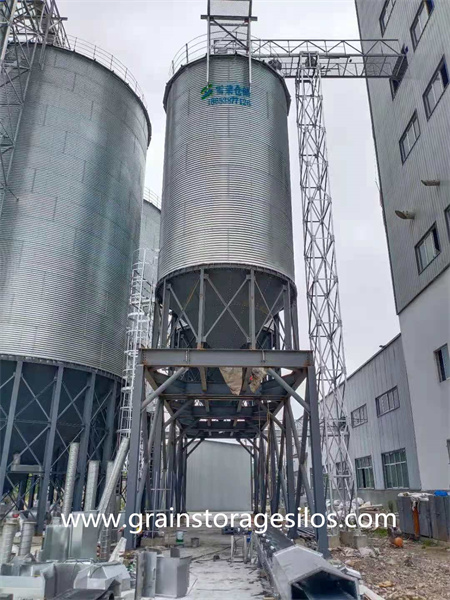

The roof of the hopper bottom steel silo includes guardrails, manholes, natural ventilation windows, simple ladders on the roof, and the body of silo includes internal and external ladders, doors, and door platforms. Cone bottom includes silo cone bottom plate, ring beam, tie bars, and column foot painting treatment.

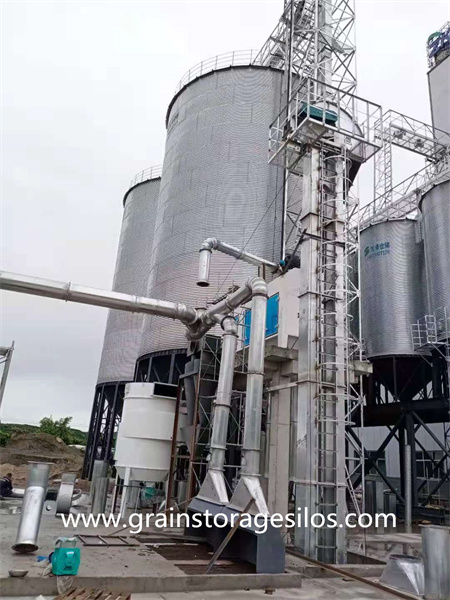

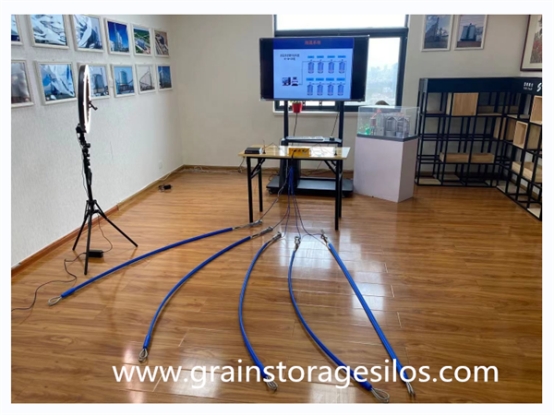

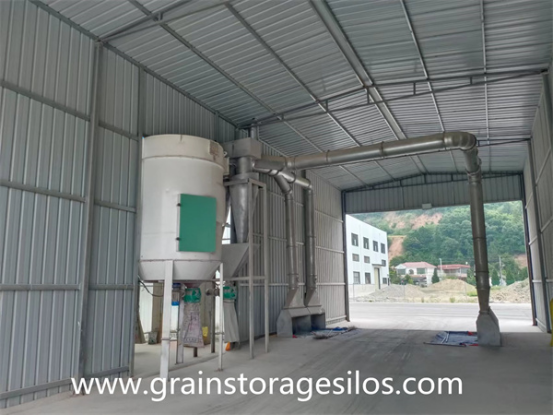

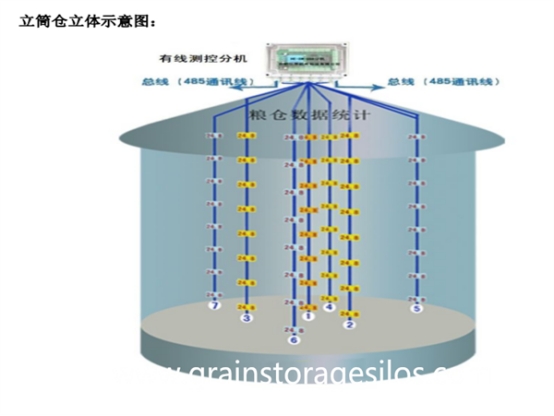

In this silo system, a ventilation and temperature monitoring system is configured to ensure long-term and safe storage of grain. And a suction hood is equipped around the grain intake pit, as well as a pulse dust collector to filter dust and avoid environmental pollution.

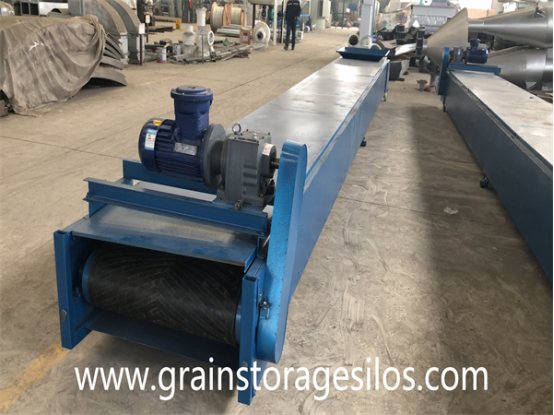

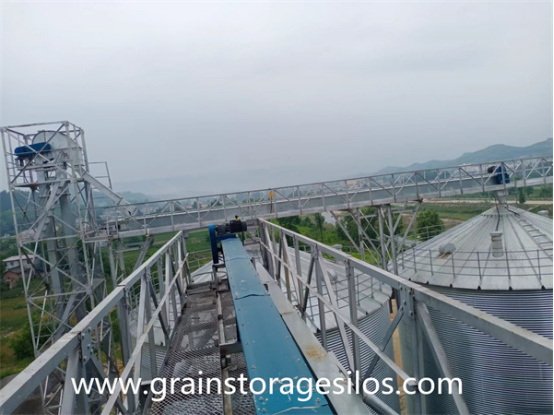

Considering that the materials stored in the 4-100T silo are finished products, a belt conveyor is selected for the conveying equipment loading and unloading the silos to reduce the breakage rate of corn and ensure the integrity of the material to the greatest extent.

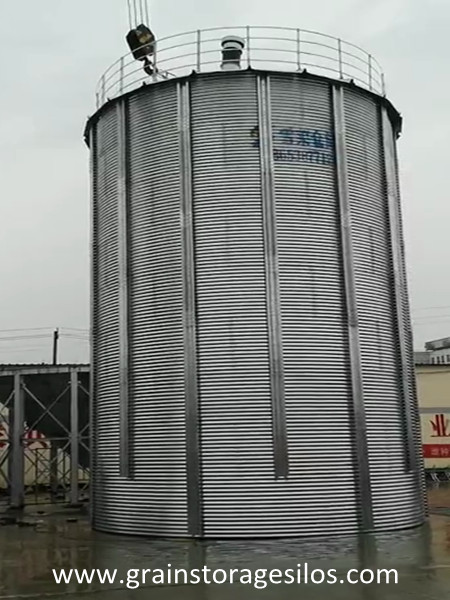

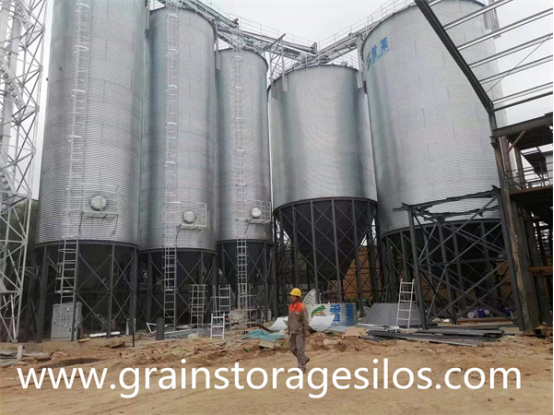

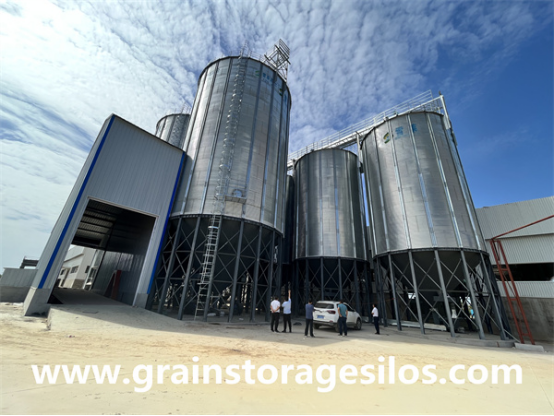

On July 7, 2021, the installation team relied on mature construction experience, strictly controlled each process, and completed the installation of the overall project with efficient construction speed and high-quality construction technology. The equipment has been running well since it was put into operation, and there is no abnormal quality complaint, which has been highly appreciated by customers.
Application of steel silo
The steel silo has low self-weight, less consumables, and a high degree of standardization, and can be arbitrarily combined into various types of silos required by users. The assembly of the steel silo is simple and fast, and all parts of the steel silo are connected by bolts, so the installation is quick and the construction period is short. The steel silo is easy to realize automation and minimizes labor costs. Steel silos are equipped with supporting equipment, which can be equipped with storage, storage, ventilation, temperature monitoring and other equipment according to the requirements of use, so as to achieve the purpose of safe grain storage. The cost of steel silos is low, and the service life can reach more than 25 years. The assembly type is detachable and can be reused, thereby reducing costs. Due to the inherent advantages of steel silos, they are widely used in storage.
