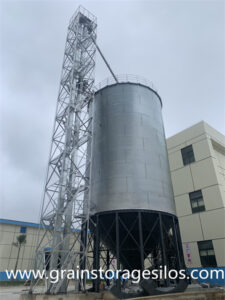

this is a hopper bottom steel silo project for soybean storage.
according to site situation,tczk10013 is used for our client.
we also equipped with bucket elevator and drag chain conveyor as transportation system in this project.

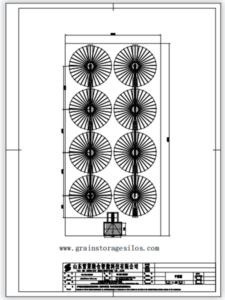

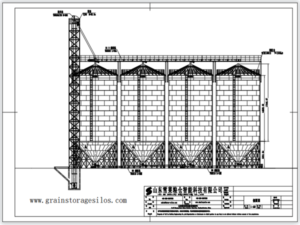

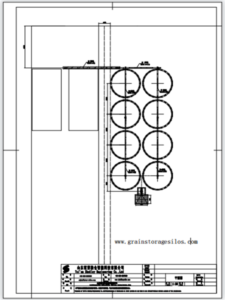

8x1000t galvanized grain silo specification in this system
model:tczk10013
diameter:10m
volume:1360m3
eave height:17.046m
total height:22.97m
hopper bottom silo rings:13 rings
silo bottom angle:45°
zinc coated:275g/m2

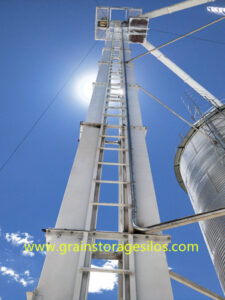

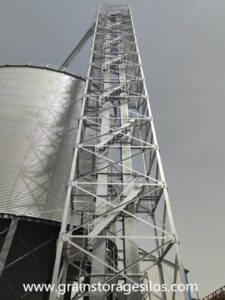

bucket elevator specification
model:tdtg60/28
capacity :130m3/hour
bucket width:28mm
height:38m
power:22kw

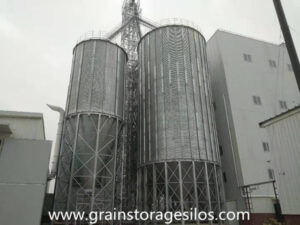

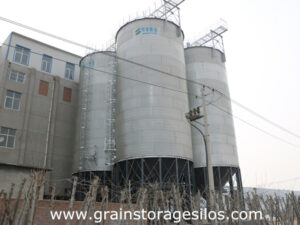

hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are?the steel silos with a cone bottom. Hopper bottom silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
bucket elevators are?powerful mechanism for hauling flowable bulk grain vertically, it is widely used in?broad range of flowable materials applications for?grain storage silos. The reliable shelley bucket elevator is designed with reasonable running structure, highly resistant anti-wear steel and high-strength plastic bucket, which makes it easy for installation and longer trouble-free life span.
the bucket elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. Shelley company could designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.
