2-1000T and 3-400T corn storage silos

March 10, 2023

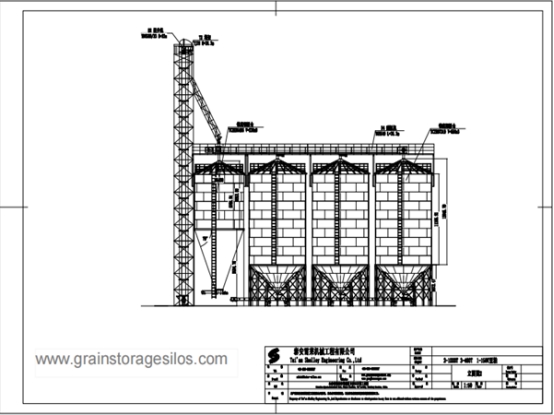

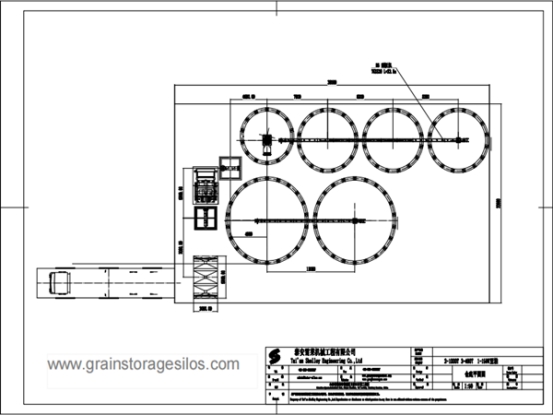

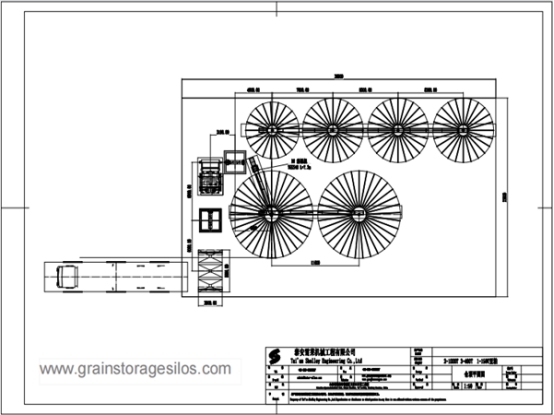

2-1000T and 3-400T corn storage silos and 1-150T soybeans meal hopper bottom storage silos project for a large feed mill

This is a hopper bottom steel silos project for a feed mill, including 2-1000T and 3-400T corn storage silos and 1-150T soybeans meal storage silos as poultry feed raw material.

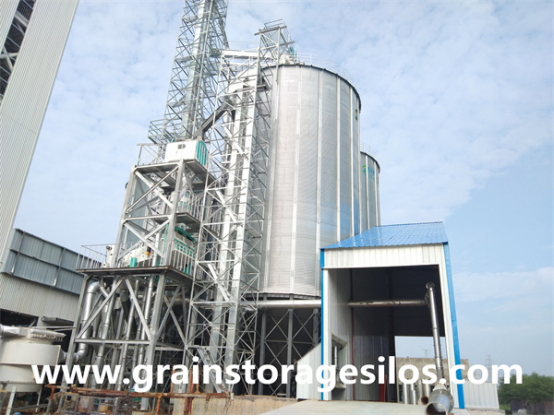

The process technology is that grain will be unloaded into intake pit,and then transported into cleaning system by bucket elevator.After cleaning,corn and soybeans meal will be transported by bucket elevator and drag conveyor into different silos as raw material storage.

The specific parameters of the steel silo are as follows

2x1000T galvanized steel silo specification in this system

Model:TCZK10014

Diameter:10m

Volume:1449m3

Eave height:21.59m

Total height:24.09m

Hopper bottom silo rings:14 rings

Silo bottom angle:4

Zinc coated:275g/m2

3x400T galvanized steel silo specification in this system

Model:TCZK07310

Diameter:7.3m

Volume:550m3

Eave height:15.76m

Total height:17.62m

Hopper bottom silo rings:10 rings

Silo bottom angle:4

Zinc coated:275g/m2

150T galvanized steel silo specification in this system

Silo model:TCZK06406

Volume:320m3

Diameter:6.4m

Eave height:8.35m

Total height:17.85m

Zinc coated:275g/m2

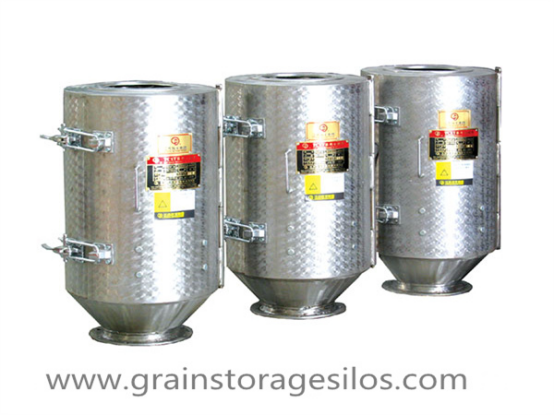

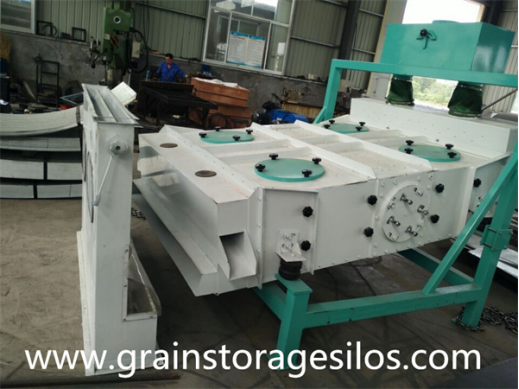

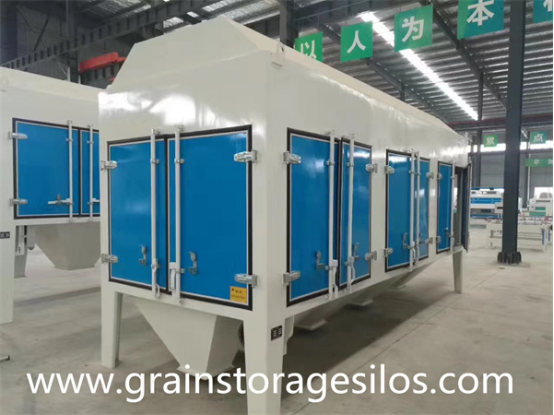

Because customers have high requirements for feed quality, in the selection of cleaning equipment, double drums cleaner and vibration cleaner are used to effectively remove impurities in grain. After the cleaning process, a magnetic drum is added to remove iron impurities in the feed to ensure that the feed is clean and safe.

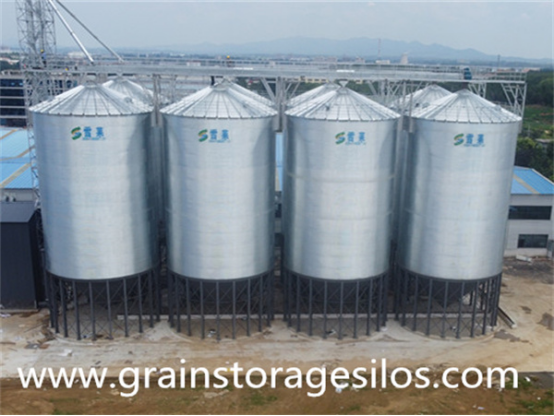

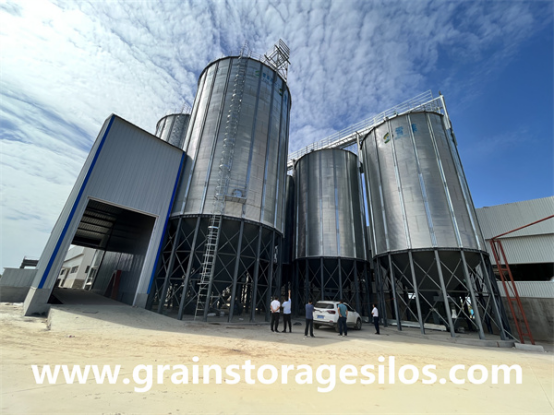

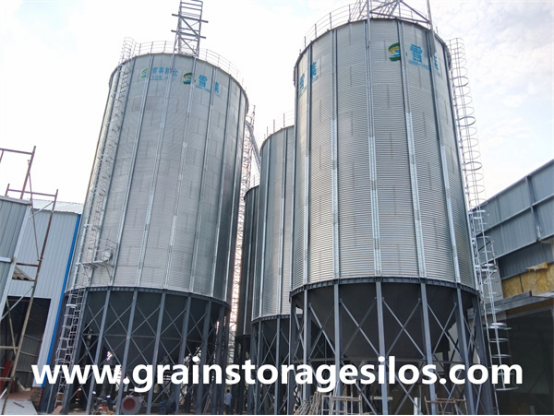

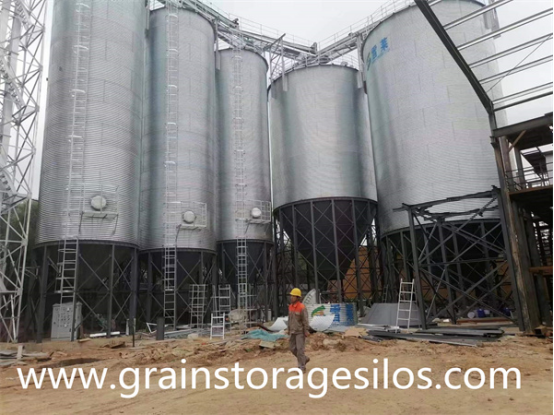

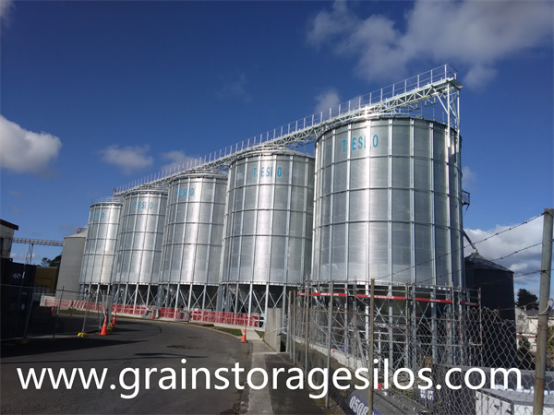

The hopper bottom steel silo includes guardrails, manholes, natural ventilation windows,internal and external ladders, doors, and door platforms.

Assembly galvanized hopper bottom storage steel silo can ensure grain storage security and save space and labor cost.And assembly silo facilitate transportation and reuse to save the cost for customers.
